Specification
AutomotiveFitType : universal_fit
AutoPartPosition : front
Brand : Sucicago

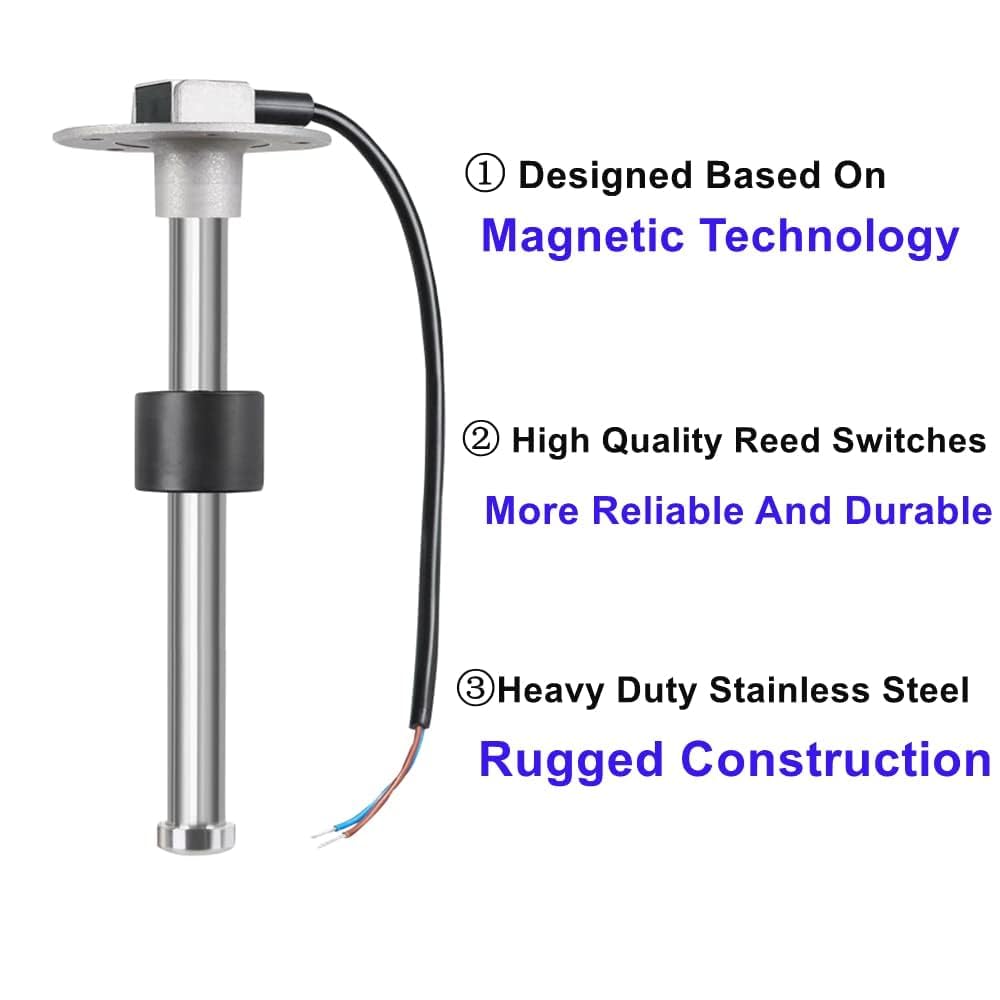

BulletPoint1 : ［A Fine Replacement Sending Unit］ Sucicago Reed Switch Diesel Marine Fuel Tank Sending Unit is a Better Option Than the Traditional Lever Type Sensors. The Boat Fuel Tank Will not Effected by The Constant Movement Caused by Waves and Boat Rocking. It Will give an Accurate Indication of Fuel Level and the Fuel Gauge No Longer Bounces All Over The Place In Windy Wave Situations.

BulletPoint2 : ［Update Version］We Received Feedback From Customers Who Said the Smaller Sending Units As A Short Tank Requires Higher Sensitivity Than The Taller Tanks Do. Our R&D Has Redesigned :
10mm Resolution Range : 4”,5”,6”,7”
21mm Resolution Range: 8",9",10",11",12",13",14",15",16",17",18",19",20",22"

BulletPoint3 : ［Easily Understood Wiring Instructions］This Boat Fuel Level Sending Unit Comes With 1pc of NBR Mounting Gasket, 5pcs of Metric Screw and Installation Instruction. Install It With Ease! You will know how much Fuel, Diesel,Gasoline or Water left on Your boat/Truck/Camper! Signal Output: 240 ohms-33 ohms, Non-Linear Output, SAE 5 Hole Mounting Pattern ( NOT Equidistant )

BulletPoint4 : ［Body Material］ Stainless Steel. Sucicago Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support.
BulletPoint5 : ［Really Important to Know BEFORE You Order］
1) To Allow The Sender not Hit The Bottom of The Tank, The Length of Sender Should be 1" less Than The Depth of The Tank If Tank Is Plastic, And 0.5" Less Than The Depth of The Tank If Tank is Metal .
2)The Diameter of Float is 1.38"(35mm). If You Have to Drill the hole, Diameter 1.50"(38mm) Hole Would be Perfect.
BulletPoint6 : BR53209 Yamaha Fitting male 2-prong (470YMC) clip style tank connector, ¼-inch NPT
BulletPoint7 : This fuel connector has been tested in extreme climates and is alcohol resistant
BulletPoint8 : Comes with a 1-year warranty
Color : 240-33ohm Sender
Color1 : Black
Color2 : Silver
CompatibleWithVehicleType : Motorcycle
CustomerPackageType : Standard Packaging
Department : Gender Neutral
EngineType : 2 Stroke
ExternallyAssignedProductIdentifier1 : 0742404260955
ExternallyAssignedProductIdentifier2 : 742404260955
ExternallyAssignedProductIdentifier3 : 00768721471850
ExternallyAssignedProductIdentifier4 : 0039729759104
ExternallyAssignedProductIdentifier5 : 0739729759103
ExternallyAssignedProductIdentifier6 : 0744288102109
ExternallyAssignedProductIdentifier7 : 00039729759104
FinishType : Polished
FitType : Vehicle Specific Fit
FuelType : Gasoline
FuelType1 : Diesel
FuelType2 : Gasoline
GpsrSafetyAttestation : 1
Hazmat1 : DANGEROUS GOODS IN APPARATUS
Hazmat10 : DE_Unregulated
Hazmat11 : EG_Unregulated
Hazmat12 : ES_Unregulated
Hazmat13 : FR_Unregulated
Hazmat14 : GB_Unregulated
Hazmat15 : IN_Unregulated
Hazmat16 : IT_Unregulated
Hazmat17 : JP_Unregulated
Hazmat18 : MX_Unregulated
Hazmat19 : NL_Unregulated
Hazmat2 : UN3363
Hazmat20 : PL_Unregulated
Hazmat21 : SA_Unregulated
Hazmat22 : SE_Unregulated
Hazmat23 : SG_Unregulated
Hazmat24 : TR_Unregulated
Hazmat25 : US_Unregulated
Hazmat26 : ZA_Unregulated
Hazmat3 : 9
Hazmat4 : AE_Unregulated
Hazmat5 : AU_Unregulated
Hazmat6 : BE_Unregulated
Hazmat7 : BR_Unregulated
Hazmat8 : CA_Unregulated
Hazmat9 : CN_Unregulated
ImportDesignation : Made in the USA or Imported
IncludedComponents : Electric Fuel Tank Sending Unit
InstallationType : Bolt-On
ItemDisplayDimensions_Height : 0.5 inches
ItemDisplayDimensions_Length : 2.8 inches
ItemDisplayDimensions_Width : 10.2 inches
ItemDisplayWeight : 0.99 pounds
ItemName : Sucicago Fuel Sender Unit 22"(560mm) Fuel Level Sending Unit 240-33ohm Marine Diesel Boat Gas Tank Water Level Sensor
ItemPackageDimensions_Height : 2.75 inches
ItemPackageDimensions_Length : 26 inches
ItemPackageDimensions_Width : 5.13 inches
ItemPackageQuantity : 1
ItemTypeKeyword : boat-fuel-flow-instruments
Manufacturer : Sucicago Direct
Material : Stainless Steel
MaximumHorsepower : 250 horsepower
ModelName : 15421
ModelNumber : XQ240-C22
MountingType : Tank Mount
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Mechanical
PackageLevel : unit
PartNumber : XQ240-C22
Pattern : Solid
ProductDescription : Sucicago Stainless Steel Fuel Gauge Sender Unit Is Much More Accurate and Reliable Than The Old Arm and Float Setup. Customer Can Purchase in Conjunction with a Sucicago Fuel Level Gauge or Water Level Gauge. They're Designed to Monitor The Fuel, Diesel,Gasoline or Water Level In The Tank.
This Gas Tank Sending Unit Will Also Work with Any Fuel/Water level Gauge with Signal Range American Standard output 240-33 ohm (Empty - Full).
Body Material : Stainless Steel
Cable: PVC
NBR.Gasket: 1pc
Metric Stainless Steel Screws: 5pcs
Mounting Methods: Standard SAE 5 hole pattern.
Protection Rank: IP67.
Output Signal: American Standard 240-33 ohms (240 ohms at empty , 33 ohms at full).
Resolution Range:
10mm for the length of Sucicago Sender 4”,5”,6”,7”
21mm for the length of Sucicago Sender 8”,9”,10”,11”,12”,13”
Package Information:

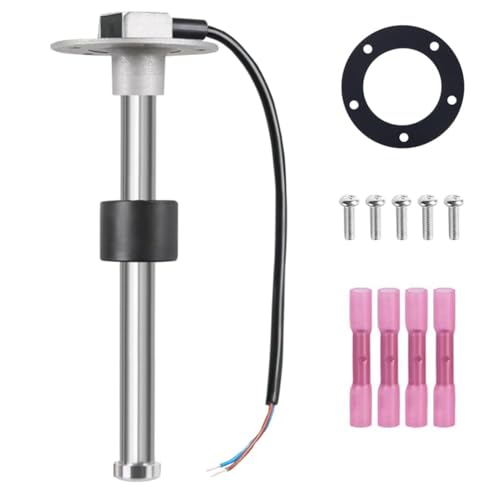

1 x Sucicago Fuel Sending Unit 1 x Gasket 5 x M5*0.8 Length(16mm) Screws 1x Sending Unit Installation
PROPER WIRING INSTALLATION:
-Connect Ground (Blue) Wire from Sucicago Sending Unit to a Common Grounding Hook-up.
-Connect Signal (Brown) Wire from Sucicago Sending Unit to Gauge Hook-up. If your Gauge Has Color Coded Hook-ups, Maintain This Coding As you Connect the Sender and Ground Wires.

ProductGrade : New
ProductSiteLaunchDate : 2024-04-07T03:22:31.101Z
RecommendedUsesForProduct : Repair, maintenance, and troubleshooting of Mercury 4-Stroke Outboard engines from 2005 to 2011
Size : 22"
StreetDate : 2011-07-25T00:00:01Z
Style : Utilitarian
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudience : Performance
UnitCount : 1
UnspscCode : 46171600
Voltage : 12 volts_of_direct_current
WarrantyDescription : http://www.seachoice.com/warranty-information
