Specification
Brand : Harpra
BulletPoint1 : Durable & Waterproof: Made of aluminum alloy panel, 316L stainless steel front cover bezel, antifog curved transparent lens, and industrial grade electronic components. IP67 waterproof and can withstand mechanical shock and vibration.
BulletPoint2 : Wide Application: Easy to install with only 300x190mm unit area. Suitable for engine, generator set, caravan, yacht, fishing boat, ship, engineering machinery, agricultural machinery, modified car, and more.
BulletPoint3 : 5 Gauge Set: Includes 85mm tachometer (0‑4000RPM, 99999.9H timing), 52mm water temp meter (100‑250℉), 52mm fuel level meter (F‑1/2‑E), 52mm oil pressure meter (0‑10Bar), and 52mm voltage meter (8‑16V).
BulletPoint4 : Firm Installation: Back harness connectors equipped with snaps for a solid connection between the instrument and the harness, ensuring reliable performance even in strong vibration.
BulletPoint5 : High Accuracy: All gauges use pulse motor to drive the pointer for high accuracy and easy reading. Ultra wide working voltage design with long term working voltage of 9‑32V and ultra‑low power consumption.
Color : BLACK
Department : Sensors
ExternallyAssignedProductIdentifier : 7426874840673
ExternallyAssignedProductIdentifier1 : 0749674222546
ExternallyAssignedProductIdentifier2 : 749674222546
ImportDesignation : Imported
IncludedComponents : Mounting Bracket
IncludedComponents1 : NBR Mounting Gasket
IncludedComponents2 : 10-24 Hex Screws
ItemDisplayWeight : 1 pounds

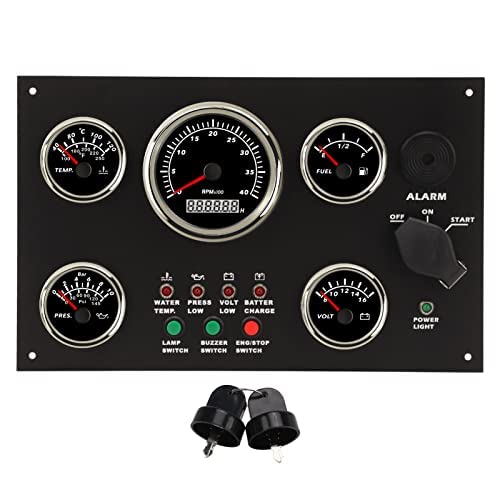

ItemName : Marine Instrument Panel with 5 Gauges - Tachometer Fuel Level Water Temperature Oil Pressure Voltmeter Durable Aluminum Alloy Panel IP67 Waterproof Easy Installation for Engine Yacht Fishing Boat Ship
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 17 inches
ItemPackageDimensions_Width : 8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-instrument-panel-gauge-kits
Manufacturer : Harpra
Material : Metal
Material1 : Acrylonitrile Butadiene Styrene (ABS)
Material2 : Aluminum
Material3 : Glass
Material4 : Stainless Steel
MeasurementAccuracy : +/-5%
ModelName : FS-FS178
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : BT000008
Pattern : Solid
ProductDescription : Specification:
Item Type: Dash Instrument Panel
Material: Aluminum alloy+ABS+stainless steel+tempered glass
Function Display:
85mm tachometer can display: engine speed 0-4000RPM, 99999.9H timing
52mm water temperature gauge shows water temperature: 100-250℉ (40-120 ℃); (Input signal: 301-22ohms)
The 52mm oil level gauge shows the oil volume of the oil tank: F-1/2-E; (Input signal: 0-190ohms)
The 52mm oil pressure gauge can display the oil pressure of the oil tank: 0-10Bar (0-145psi); (Input signal: 10-184ohms)
52mm voltmeter can display battery voltage: 8-16V;
Operation Mode: LCD display, stepper motor
Working Voltage: DC12V circuit system; (Except for the voltmeter, the other four instruments can work in the DC24V circuit system)
Working Current: ≤ 100 MA
Working Temperature: - 30 ℃ -+75 ℃
Storage Temperature: - 40 ℃ -+85 ℃
Backlight Color: Red
Protection Grade: IP67, can work at 1m underwater, excellent antifog function;

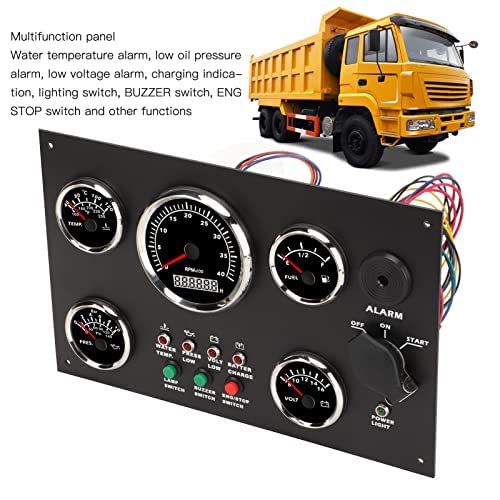

Application: This instrument panel can be installed in the central control position of your RV yacht or engineering vehicle. It only needs 300 x 190mm / 11.8 x 7.5in unit area to combine the five instruments together, which greatly saves space and decorate your central control. The five instruments are equipped with red back light and red LED light needles, which can clearly view all parameters even at night. At the same time, the multifunction panel also includes water temperature alarm, low oil pressure alarm and low voltage alarm, The charging indicator, lighting switch, BUZZER switch, ENG STOP switch and other functions can be used to know the status of the engine at any time through the data on the panel
Application: The central control multifunction refitting panel can be used in the fields of engine, generator set, RV, yacht, fishing boat, ship, engineering machinery, agricultural machinery, refitting vehicle, etc.
How to Use:
1. Make a hole of about
ProductSiteLaunchDate : 2023-04-11T08:35:51.416Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41110000
WarrantyDescription : 1 Year
