Specification
Brand : Harpra
BulletPoint1 : 1.Application: The multi functional central control panel can be used for engines, generator sets, caravans, yachts, fishing boats, ships, engineering machinery, agricultural machinery, modified vehicles and other fields.
BulletPoint2 : 2.Features: The panel uses a pulse motor to drive the pointer to indicate the corresponding scale, the pointer display has the characteristics of high indication accuracy, good repeatability, versatility, and easy to use.
BulletPoint3 : 3.5 in 1 Design: Panel with speed, oil level, water temperature, oil pressure, voltage display, and with red backlight and turn indicator, also has water temperature alarm, low oil pressure alarm, low voltage alarm, etc.
BulletPoint4 : 4.IP67 Waterproof: The panel is IP67 waterproof and dustproof, which can work normally in ‑30‑+75℃, and is very suitable for marine and various harsh environments.
BulletPoint5 : 5.Anti Rust: Panel body is made of aluminum alloy, and stainless steel front cover ring, anti fog curved transparent lens, industrial grade electronic components material, etc, which can withstand mechanical shock and vibration, will not rust.
Color : Metallic
Department : Sensors
ExternallyAssignedProductIdentifier : 7426874840673
ExternallyAssignedProductIdentifier1 : 0749674221082
ExternallyAssignedProductIdentifier2 : 749674221082
ImportDesignation : Imported
IncludedComponents : Mounting Bracket
IncludedComponents1 : NBR Mounting Gasket
IncludedComponents2 : 10-24 Hex Screws
ItemDisplayWeight : 1 pounds

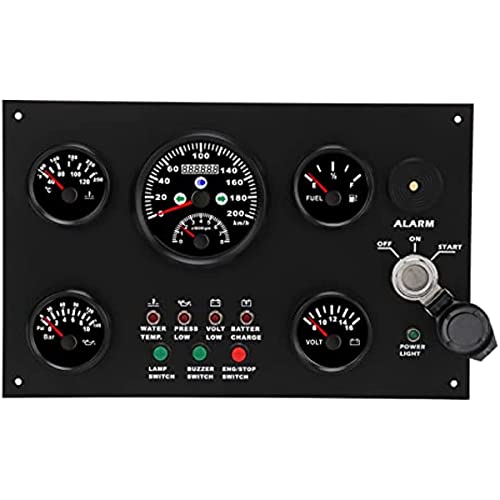

ItemName : Harpra FIT For Engines Caravans Yachts Fishing Boats Marine Instrument Panel, with Red Backlit and Steering Indicator Oil Level Water Temperature Oil Pressure Voltage Display
ItemPackageDimensions_Height : 4 inches
ItemPackageDimensions_Length : 17 inches
ItemPackageDimensions_Width : 8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : boat-fuel-flow-instruments
Manufacturer : Harpra
Material : Metal
MeasurementAccuracy : +/-5%
ModelName : FS-FS178
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DC12V
Pattern : Solid
ProductDescription : Specification:
Item Type: Marine Instrument Panel
Material: Aluminum alloy, ABS, stainless steel, tempered glass
Function Display:
85mm speedometer can display: Travel speed 0-200km/H, engine speed 0-8000RPM, light and turn signal reminder; (Comes with GPS speed sensor)
52mm water temperature gauge shows water temperature: 100-250F (40-120℃); (Input signal: 301-22ohms)
52mm oil level gauge shows the amount of fuel in the tank: F-1/2-E; (Input signal: 0-190ohms)
52mm oil pressure gauge can display the oil pressure of the tank: 0-10bar ((0-145psi)); (Output signal: 10-184ohms)
52mm voltmeter can display battery voltage: 8-16V;
Mode of Operation: Liquid crystal display, stepping motor
Operating Voltage: DC12V circuit system; (Except voltmeter, the other four meters can be used in DC24V circuit system)
Working Current: ≤100 MA
Operating Temperature: -30℃ - + 75℃
Storage Temperature: -40℃ - + 85℃
Backlight Color: Red
Protection Level: IP67, can work in 1m underwater position, excellent anti fog function

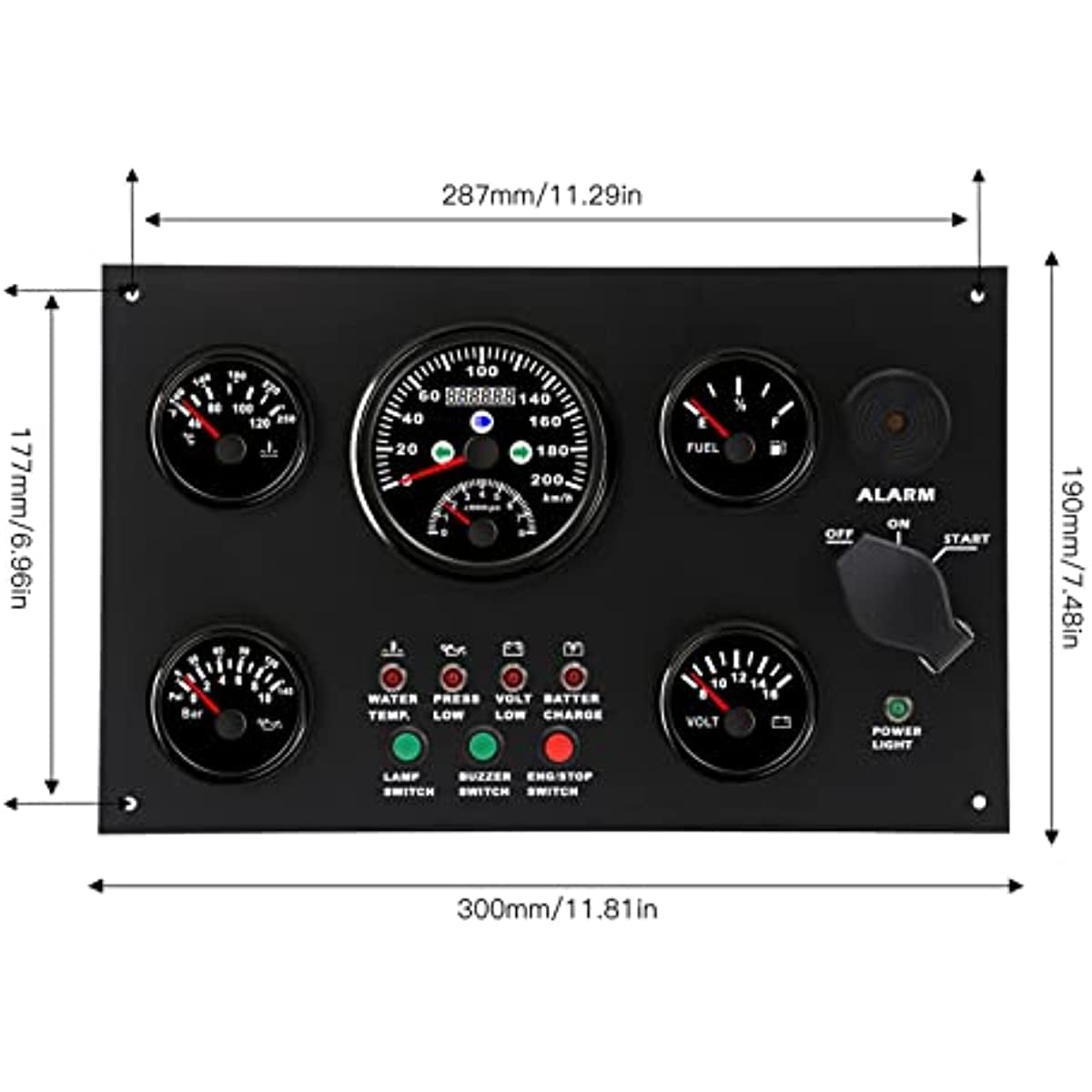

Application: This instrument panel can be installed in your RV, yacht or engineering car central control position, only need 300x190mm/11.81x7.48in unit area will be 5 meters together, greatly save space and decoration of your central control, and 5 meters are with red backlit and red LED lighting needle, even at night can also clearly view the parameters, At the same time, the multifunctional panel also comes with water temperature alarm, low oil pressure alarm, low voltage alarm, charging indicator, lighting switch, buzzer switch, ENG/Stop switch and other functions, through the panel data to know the state of the engine at any time
Application:
Installation Instructions:
1. Make a hole in the pre installation position of the center control about 300x190mm/11.81x7.48in(a little smaller).
2. Put the instrument panel into the open hole, and connect the power supply harness and
ProductSiteLaunchDate : 2023-04-13T04:26:26.483Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43211900
WarrantyDescription : 1 Year
