Specification
Brand : Yuecoom
BulletPoint1 : Used in: Monitor Relay Widely used in air compressors, electric motors, distribution boxes, water pumps, oil pumps, central air conditioning units, electric control boxes, power distribution cabinets, cranes, etc
BulletPoint2 : Circuit Protection Relay: Circuit Protection Relay is an indispensable protection product for the normal working voltage of the maintenance equipment in the operation of industrial equipment
BulletPoint3 : Installation method: The base of the protector adopts the rail type, and there are two M4 screw holes in the structure, which can be directly installed separately or installed on the HT35 rail
BulletPoint4 : Overvoltage protection: Circuit Protection Relay Overvoltage protection means that the voltage of the protected line is higher than the set value, and the delay is 3~8S, and the recovery is 6~20VAC
BulletPoint5 : Undervoltage protection: Circuit Protection Relay Undervoltage protection means that the voltage of the protected line is lower than the set value, the delay is 3~8S, and the recovery is 3~20VAC
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier : 6187892254163

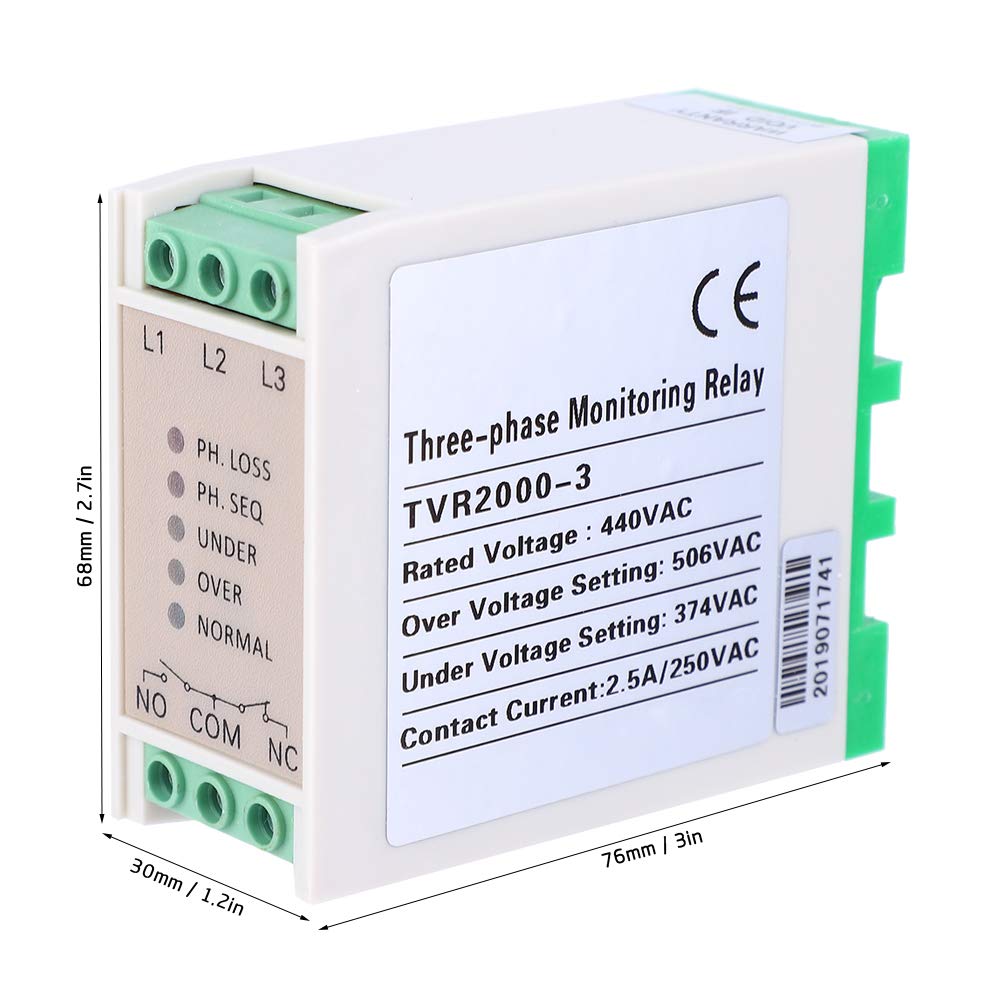

ItemName : FPGA Programmable Logic Circuits 440VAC Over Under Voltage Failure Phase Sequence Protector, 3 Phase Power Supply Monitor Relay
ItemPackageQuantity : 1
ItemTypeKeyword : fpga-programmable-logic-circuits
Manufacturer : Yuecoom
Material : Copper
MaximumSwitchingCurrent : 5 amps
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
NumberOfItems : 1
OperationMode : Electric
PartNumber : 7.7005.
ProductDescription :

Specification:

Condition: 100% Brand New

Item Type: Circuit Protection Relay

Dimensions: Approx. 68 x 30 x 76mm / 2.7 x 1.2 x 3in

Main Circuit:

Rated Voltage: 440VAC

Connecting wires of the main circuit: The insulating copper wire has a carrying area of 1.0 to 2.5 mm. If a single strand of copper wire can be directly inserted into the terminal; if a cord is used, a needle type terminal must be added to the wire to ensure reliable connection.

Auxiliary Circuit:

1) A normally open and a normally closed contact that is electrically inseparable.

2) Use Category: AC15, DC13

3) Contact Capacity: 250VAC 2.5A, 30VDC 1.5A

Conventional Thermal Current: 5A

Voltage Protection Range:

2000 - over voltage protection +15%, under voltage protection -15%



Package List:

1 x Circuit Protection Relay

1 x Instruction Manual



Note:

1. Since this protector is only protected against voltage and its phase sequence, it can be applied to motors of various powers.

2. This product is generally sampled on the power side of the three phase power supply and must not be installed on the output side of the variable frequency current.

ProductSiteLaunchDate : 2022-07-21T02:35:48.438Z
Size : 7.7005.3
