Specification
Brand : FUZHUI
BulletPoint1 : Mechanical Dial Accuracy: Our SEN-0.3-1 Dial Tension Gauge features a mechanical dial that provides more accurate data than digital displays, ensuring precise measurements for various applications.
BulletPoint2 : Versatile Applications: Ideal for measuring relay tip pressure, electronic switch, micro switch, valve, and spring pull pressure, this tensiometer offers a wide range of uses in precise pressure and pulling force tests.
BulletPoint3 : Portable and sturdy Design: Made with ABSAlloy material, this lightweight and portable tension gauge can be easily carried for on-site measurements, providing stable performance and clear readings.
BulletPoint4 : User-Friendly : The streamlined fuselage allows for easy one-handed , while the single pointer design offers immediate measurement readings, simplifying the testing process.
BulletPoint5 : Package Contents: Each package includes 1 x Dial Tension Gauge, ready for use in your project or test. Follow the provided instructions for safe and effective .

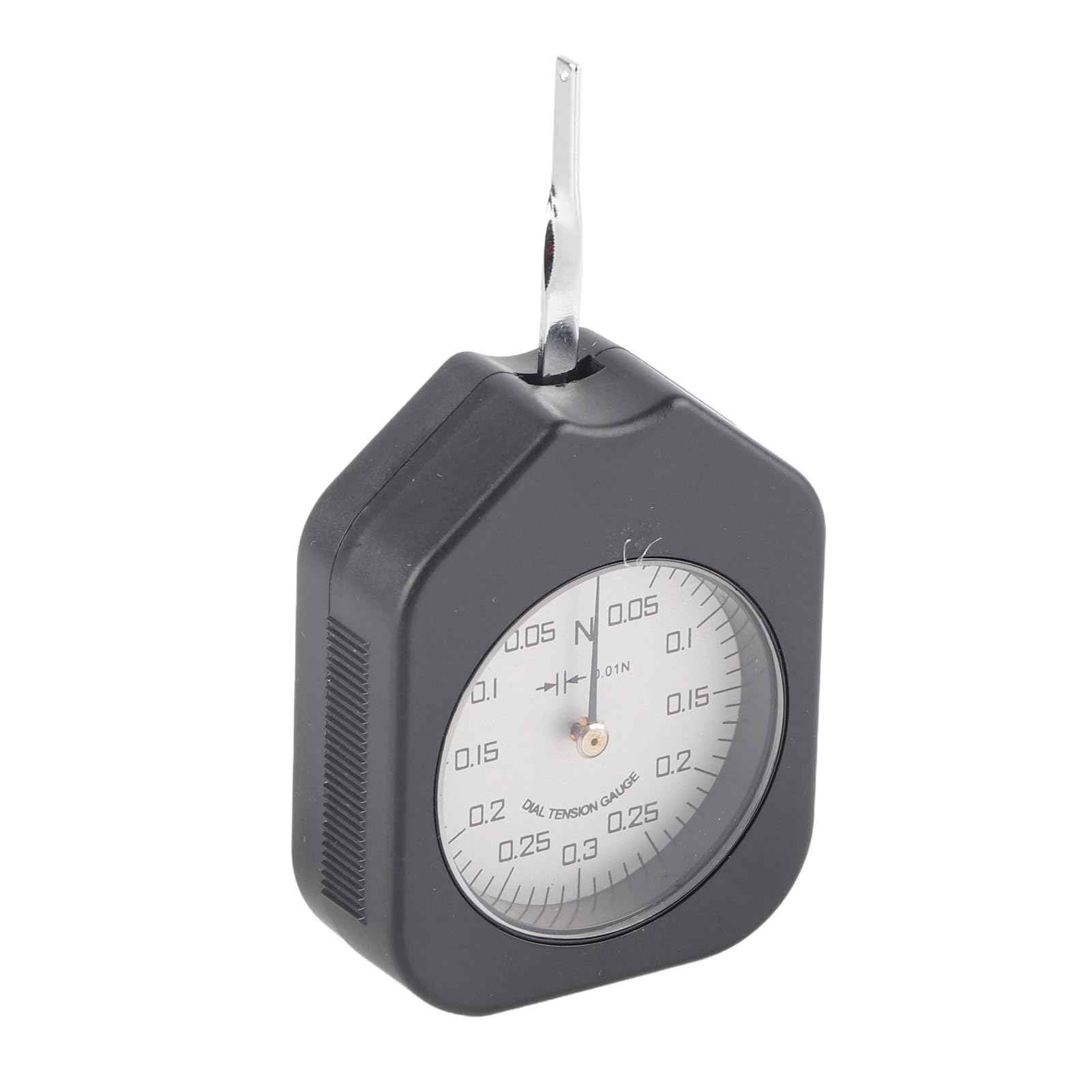

ItemName : SEN 0.3 1 Dial Tension Gauge Meter, Single Pointer Tensiometer, High Quality ABSAlloy Material, Portable and Accurate Measurement Tool for Relay Tip Pressure Test
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemTypeKeyword : force-gauges
Manufacturer : FUZHUI
ModelName : FUZHUIydfgpev863
ModelNumber : FUZHUI07g5ohfm4c
NumberOfItems : 1
PartNumber : FUZHUI07g5ohfm4c
ProductDescription :
Item Type: Dial Tension Gauge
Material: ABS+Alloy
Color: As shown in the picture
Model Specification: SEN-0.3-1
Pointer: Single pointer
Measurement Value: 0.3N
Graduation Value: 0.01N
Scale Style: 0.05-0.3-0.05

Application: The dial tension gauge is suitable for relay tip pressure, electronic switch, micro switch, valve, spring pull pressure, dial measure equipment principal axis pressure, dial system equipment tip and the gag bitmechanical pressure, tape recorder buffer mechanism pressure, and other precise pressures, pulling force test.

How to Use:
When test, use the needle move the object from static state to the position needed. The tension gauge test not only along clockwise, but also along the anti-clockwise. The needle must always vertical to the push-pull force direction.
Tension gauge set off single needle and dual needle. The single-needle tensiometer measures and reads immediately. When the dual needle tension gauge gets the highest value, the needle hold still, convenient user to read.

Package List：
1 x Dial Tension Gauge

Note:
1. Do not drop the product randomly.
2. Do not bend the measuring alloy probe.
3. When the product cannot be calibrated, you can open the back cover for calibration. It is not recommended to open the back cover for calibration frequently.


ProductSiteLaunchDate : 2024-12-17T06:22:03.308Z
UnspscCode : 41000000
