Specification
Brand : HQHAOTWU
BulletPoint1 : High Precision: The compression spring tester machine adopts advanced highly integrated microcontrollers and high-resolution English LCD displays, with a metal outer shell, greatly improving the system's anti-interference ability.
BulletPoint2 : Multiple Functions: The machine has three measurement units: N, KG, and LB. You can choose the appropriate measurement unit according to your needs. Users can freely switch between real-time, peak, and automatic peak modes. Maximum test load: 500N/50kg (110.2lbs).
BulletPoint3 : Superior Performance: It adopts the Modbus RTU standard protocol and uses a USB interface, which can better connect with the configured PLC.
BulletPoint4 : Accurate Recording: The machine can store 99 sets of test data. Users can view data, accurately record data, and delete data.
BulletPoint5 : Widely Used: The compression spring tester machine is a specialized instrument used to test the deformation and load relationship characteristics of tension and compression springs.
ExternallyAssignedProductIdentifier1 : 0840403769513
ExternallyAssignedProductIdentifier2 : 840403769513

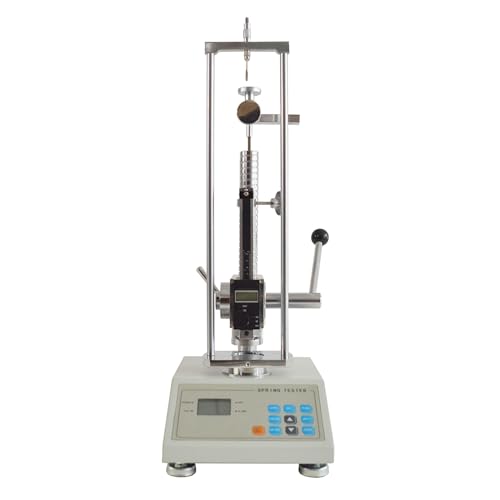

ItemName : HQHAOTWU Digital Force Gauge, 500N Compression Spring Tester Machine, Spring Tension and Pressure Testing Machine AC110V-220V
ItemPackageDimensions_Height : 21.65 inches
ItemPackageDimensions_Length : 14.96 inches
ItemPackageDimensions_Width : 14.96 inches
ItemTypeKeyword : force-gauges
Manufacturer : HQHAOTWU
ModelNumber : Jopwkuinaxpod9sbv3
NumberOfItems : 1
PartNumber : DX056251
ProductDescription : Product Parameters
Model: ETH- 500
Power Supply: AC110-220V 50HZ/60HZ
Maximum testing load: 500N/50kg (110.2lbs)
Minimum resolution: 0.01N
Diameter of the platen: 1.9"（48mm）
Maximum free length of measurable spring: 5.9"（150mm）
Length of travel of the displacement scale: 3.5"（90mm）
Division value of the displacement scale: 0.01mm
Indication error: ±1%
Power capability (without printer): 13W
Power capability (with printer): 20W
Working temperature: 20±10℃
Temperature of storage and transportation: -27℃～+70℃
Relative temperature: 15%～80%RH
Product size: 8.7"*11.8"*22.8"（22*30*58cm）
Gross weight: 52.9lb（24kg）

ProductSiteLaunchDate : 2024-05-10T08:49:39.896Z
UnspscCode : 41110000
