AgeRangeDescription : adult
Brand : Aoleaby
BulletPoint1 : Highly accurate thermal mass flow sensing. Automatic temperature & pressure compensation High sensitivity for trace flow measurement.
BulletPoint2 : Excellent turndown of 50:1 or over. Support multiple gas measurements and customizable online calibration.
BulletPoint3 : Instant flow rate and accumulated flow rate with temperature sensing. Remote communication with RS485 Modbus.
BulletPoint4 : Meter configuration and data access with front keyboard. Customer configurable alarm for over range or limit.
BulletPoint5 : High range ratio due to multi-sensor integration on a single chip.
Color : One Color
ExternallyAssignedProductIdentifier : 7294133451829
ItemName : Signet 3-2551-T1-11 Magmeter Flow Sensor for DN125 to DN200 (5 to 8 in.)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-flowmeters
Manufacturer : Aoleaby
ModelName : LVSEDTAL
ModelNumber : Aoleaby
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Aoleaby

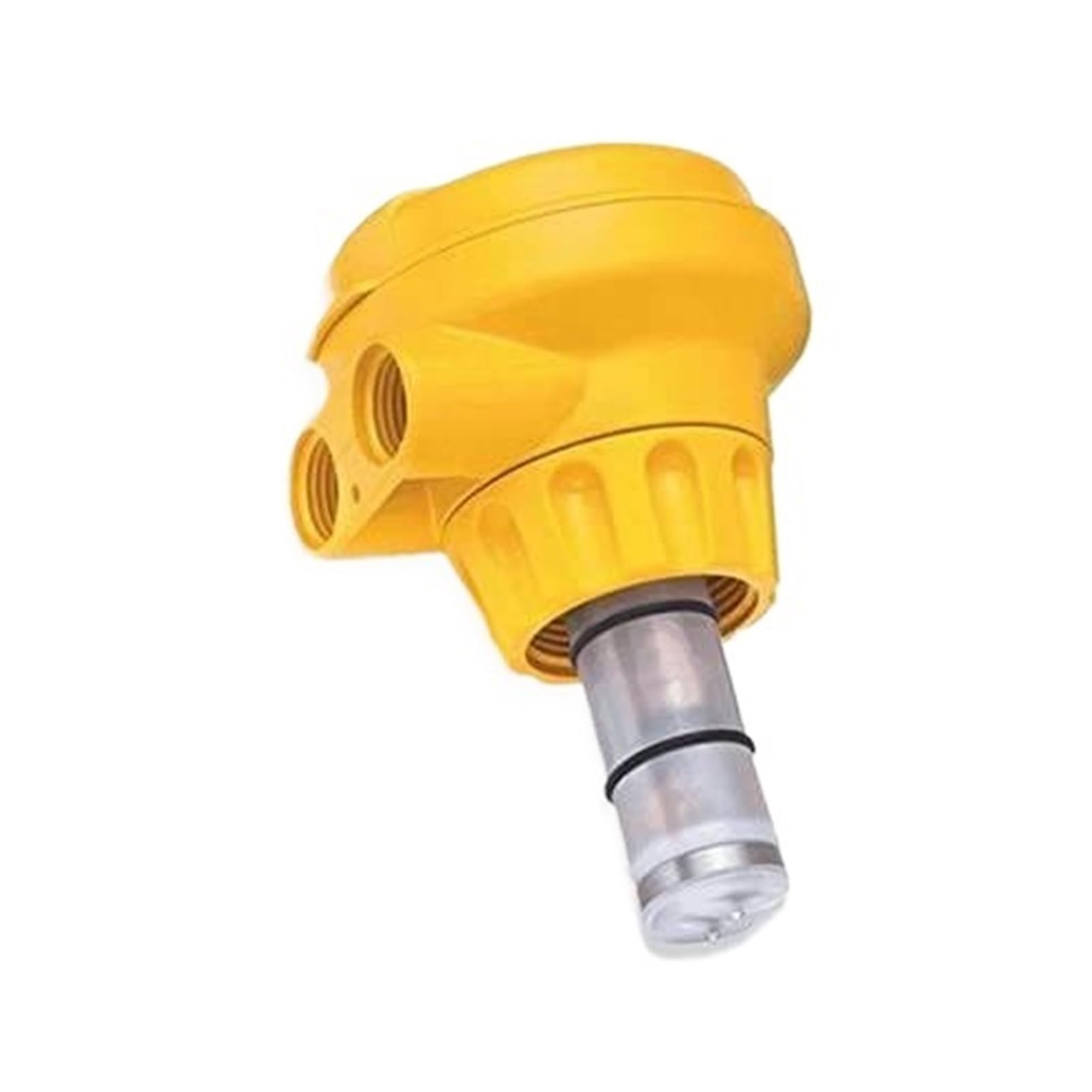

ProductDescription : 3-2551-T1-11 Magmeter Flow Sensor For DN125 to DN200 (5 to 8 in.)
Key Features:
Sensor Body - PVDF
Frequency or Digital (S3L) output
Installs into pipe sizes DN125 to DN200 (5" to 8")
Patented Magmeter technology
No moving parts
Bi-directional flow
Empty pipe
Operating range: 0.05 to 10 m/s (0.15 to 33 ft/s)
Accurate measurement even in dirty liquids
Polypropylene or PVDF retaining nuts
No pressure drop
PP or PVDF with SS, Hastelloy-C
Multi-language display menu available
General
Operating Range
0.05 to 10 m/s
0.15 to 33 ft/s
Pipe Size Range
DN15 to DN900
½ in. to 36 in.
Linearity
± 1% reading plus 0.1% of full scale
Repeatability
±0.5% of reading @ 25 °C (77 °F)
Minimum Conductivity
20 S/cm
Wetted Materials
Sensor Body/Electrodes
and Grounding Ring
-P0, -P1, -P2: PP/316L SS
-T0, -T1, -T2: PVDF
-V0, -V1, -V2: PVDF/Hastelloy-C
O-rings
FPM (standard)
EPR (EPDM), FFPM (optional)
Case
PBT
Display Window
Polyamide (transparent nylon)
Protection Rating
NEMA 4X/IP65
Electrical
Power Requirements
4 to 20 mA
24 VDC ±10%, regulated, 22.1 mA max.
Frequency
5 to 24 VDC ±10%, regulated, 15 mA max.
Digital (S3L)
5 to 6.5 VDC, 15 mA max.
Auxiliary (only required for units with relays)
9 to 24 VDC, 0.4 A max.
Reverse Polarity and Short Circuit Protected
Current Output 4 to 20 mA
Loop Accuracy
32 A max. error (25 °C @ 24 VDC)
Isolation
<; 48 VAC/DC from electrodes and auxiliary power
Maximum Cable
300 m (1000 ft)
Error condition
22.1 mA
Max. Loop Resistance
300
Compatible with PLC, PC or similar equipment
4 to 20 mA load needed
Frequency Output
Output Modes
Freq., or Mirror Relay (display version only)
Max. Pull-up Voltage
30 VDC
Max. Current Sink
50 mA, current limited
Maximum
ProductSiteLaunchDate : 2024-08-27T05:08:08.003Z
Size : One Size
UnitCount : 1
UnspscCode : 41112500
