Specification
Brand : JinGuoZiLP
BulletPoint1 :
BulletPoint2 :
BulletPoint3 :
BulletPoint4 :
BulletPoint5 :
Color : As Shown
ExternallyAssignedProductIdentifier : 7605020289423

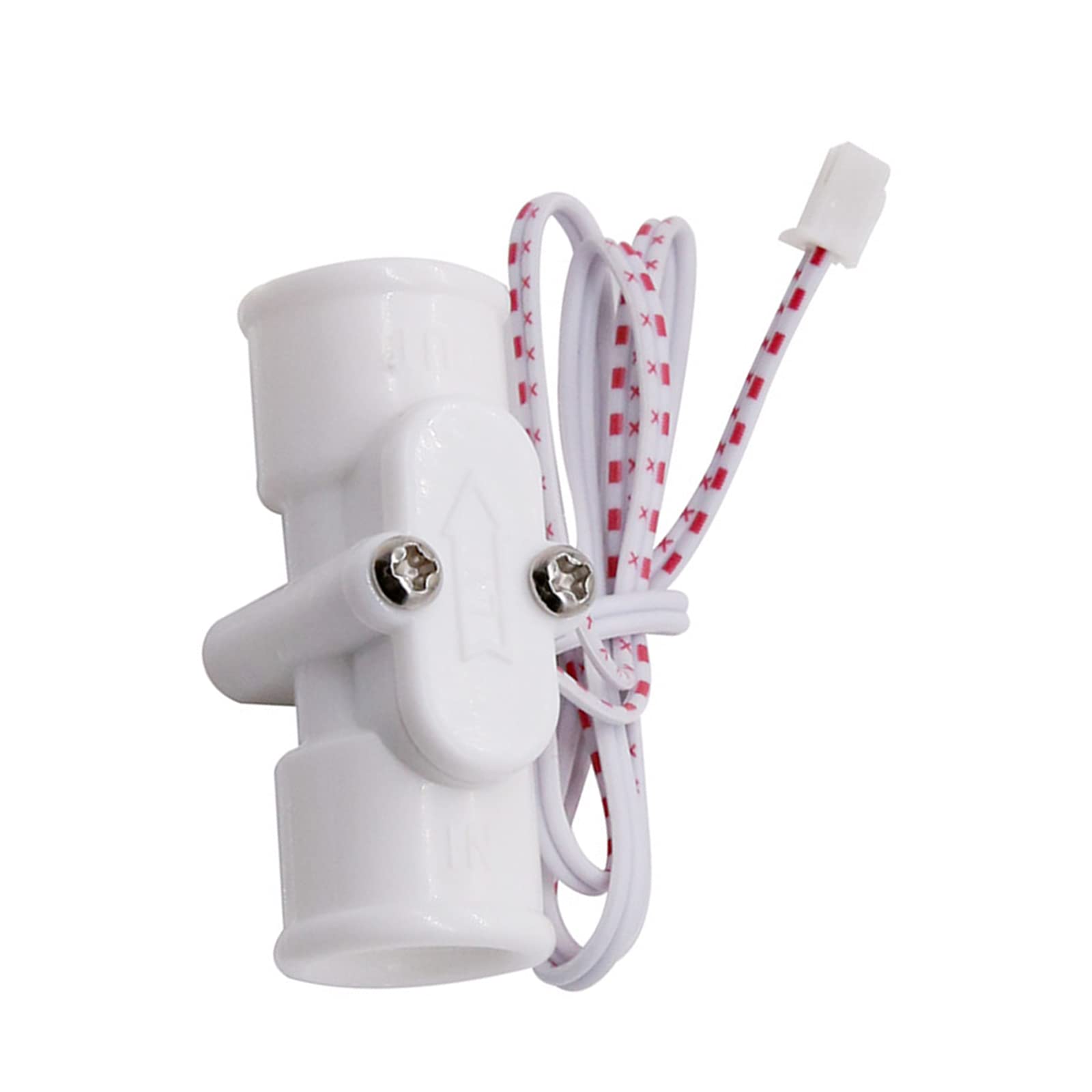

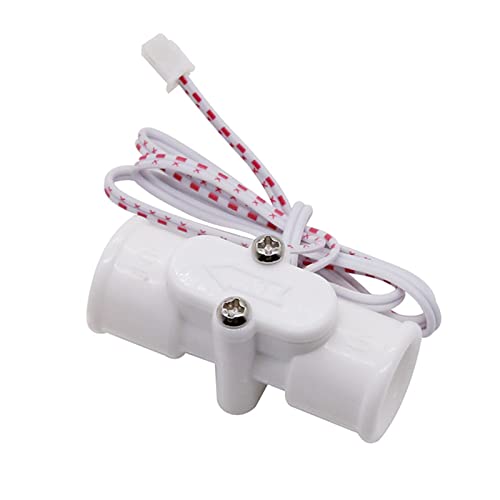

ItemName : JinGuoZiLP Compact- Flow Sensor G1/4" Liquid Water Flow Sensor Flowmeter Water Flow
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : science-lab-flowmeters
Manufacturer : JinGuoZiLP
Material : Plastic
NumberOfItems : 1
PartNumber : Ultrasonic Flow Meter
ProductDescription : Features:
When the water flows in the preset- flow channel, it pushes the magnet- to displace. When it moves to the corresponding tube, the tube conducts after sensing the magnetic field. When there is no water flow, the magnet- returns to its position under the thrust of the spring, and the tube is disconnected after the corresponding tube cannot sense the magnetic field.
Thread: G1/4-inch, flow: 300ml/min-, response time: less than 1s.
Lightweight, reasonable size, stable performance, low water pressure start-, easy to install, safe to use.
Can be perfectly used for water dispenser, water purifier, water vending machine,
High quality material, which is sturdy- and in use.

Specifications:
Plastic
Applicable water quality: turbidity less than 1; Fe-, C-o & Ni- less than 0.3Mg-/L
Applicable water pressure: equal less than 0.8mpa
Applicable water temperature: 5~50℃
Ambient- : less than 85%
Storage temperature: -20~50℃
Thread: G1/4
flow: 300ml/min-
Response time: less than 1s
type: Normally open
Length of wire: 50cm
Cable- connection strength (outlet end of the body) : Exert 20N-10s tensile force along the of the
Apply 20N-10s pulling force along the vertical direction of the (no damage at the connection)
Hydrostatic pressure: Open 1.05MPa for 5 minutes (no leakage damage
Voltage-resistance: applied between live- part and non-live- part
DC160V, 1min DC200V, 1s
(No flicker breakdown)
closing current: 0.5A
load current :1A
On resistance :0.12Q-
Disconnect-resistance :10120
Power connection capacity :0.2PF

Note:
Please allow 1-3cm error due to manual measurement. Please make sure you do not mind bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package includes:
1x Water Flow

ProductSiteLaunchDate : 2024-05-13T10:05:09.797Z
Size : 12* 8* 2cm
UnitCount : 1
UnspscCode : 52140000
