Specification
Brand : Graigar
BulletPoint : Flow Control Unit
BulletPoint1 : High Accuracy measuring,Wide measuring range,Small size, Light weight
BulletPoint2 : Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
BulletPoint3 : Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
BulletPoint4 : Several types transducer for selection, TS-2 measuring pipe size from DN15mm to DN100mm
BulletPoint5 : Large LCD display, Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.
Color : moderate grey
ExternallyAssignedProductIdentifier : 4549747241421
ExternallyAssignedProductIdentifier1 : 0725370414133
ExternallyAssignedProductIdentifier2 : 725370414133
IncludedComponents : No

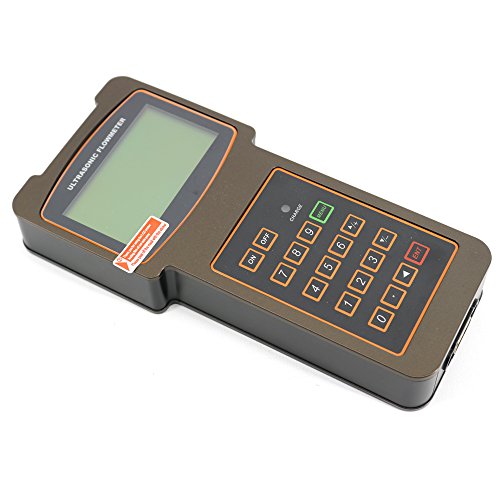

ItemName : Graigar TUF-2000H+TS-2 Digital Ultrasonic Flow Meter Flowmeter with TS-2 Transducer Measuring Range DN15-100mm 0.59-3.93in
ItemPackageDimensions_Height : 8.26 inches
ItemPackageDimensions_Length : 19.29 inches
ItemPackageDimensions_Width : 15.74 inches
ItemTypeKeyword : science-lab-flowmeters
Manufacturer : Graigar
Material : TL-1-HT-JUNEE NI
ModelNumber : TH5B0073#G14
PartNumber : TUF-2000H+TS-2
PowerSourceType : Handheld
ProductDescription : Description:

TUF - 2000H hand-held ultrasonic flowmeter using external clamp type sensor measuring liquid flow. Installation process is very simple, all Chinese man-machine interface, more easy to operate. Especially suitable for flow balance test and flow monitoring: drinking water, river water, sea water, cooling water, hot water, industrial waste water, oil, diesel oil, fuel oil, chemical liquid, etc.
Second, the handheld ultrasonic flowmeter features


Measurement Data

Linearity: 0.5%
Repeatability: 0.2%
Accuracy: is better than the plus or minus 1%, velocity > 0.03 m/s
Response Time: 0 ~ 999 seconds, the user option
Velocity Range: ± 32 m/s
Section Size: 15 mm(0.59in) to 6000 mm(236.2in)
Accumulator: seven are. Negative. Net cumulative apparatus
Liquid type: all kinds of can conduction ultrasonic single homogeneous liquid
Ann all sex: setting value of the lock, change the data need to unlock
Display: 4 x 8 Chinese or 4 x 16 English
Communication interface: RS - 232 baud rate, 75-57600, at the same time compatible Fuji ultrasonic flowmeter, also should the user's requirements compatible with other products
Sensor: mark worthy to type TM1, while the other four choices
Sensor cable: standard for 5 m x 2, also can be extended to 10 m x 2
Power supply: 3 quarter AAA built-in Ni - H battery, every time is full of electric sustainable work 12 hours, AC100V - 240 V adapter
Data record: built-in data recorder can record 2000 line data
Manual accumulator: seven, key can start for calibration
Shell material: ABS
Physical size: 210 x 90 x 30 mm(8.27*3.54*1.2in)
500 g(1.2 LBS) including battery


Standard Configurations:

1. Ultrasonic Flowmeter
2. TS-2 Transducer
3. Signal cable
4. Data cable
5. Fixed steel chain
6. Charger
7. Ruler
8. Certificate of Warranty
9. Packing List
10. Empty Bottle
11. Carring box
ProductSiteLaunchDate : 2018-04-13T07:00:00.000Z
Size : Large
Style : Digital
