Specification
Brand : Graigar
BulletPoint : Flow Control Unit
BulletPoint1 : TDS-100F Ultrasonic flow meter Low fixed ultrasonic flowmeter with large planning integrated circuits CPLD, table process, accuracy is higher.
BulletPoint2 : ay, month and year flow accumulation function, can record run 64 days before the operation, the first 64 months, the first five years of accumulated flow operation.
BulletPoint3 : On low, the power management function, can record, electricity and traffic on 64 times before, can be manually or automatically compensate to reduce flow losses.
BulletPoint4 : Low effectively overcome the wall of the ultrasonic signal attenuation and rough surface of the pipe to scattering of ultrasonic signal from surface reduce the energy consumption of ultrasonic signal.
BulletPoint5 : Low overcame a signal to a small amount of sediment, suspended particles and bubbles, the effect of improved flow measurement accuracy, especially suitable for pipe flow measurement.
Color : moderate grey
ExternallyAssignedProductIdentifier : 4549747241421
ExternallyAssignedProductIdentifier1 : 0725370414317
ExternallyAssignedProductIdentifier2 : 725370414317
IncludedComponents : No

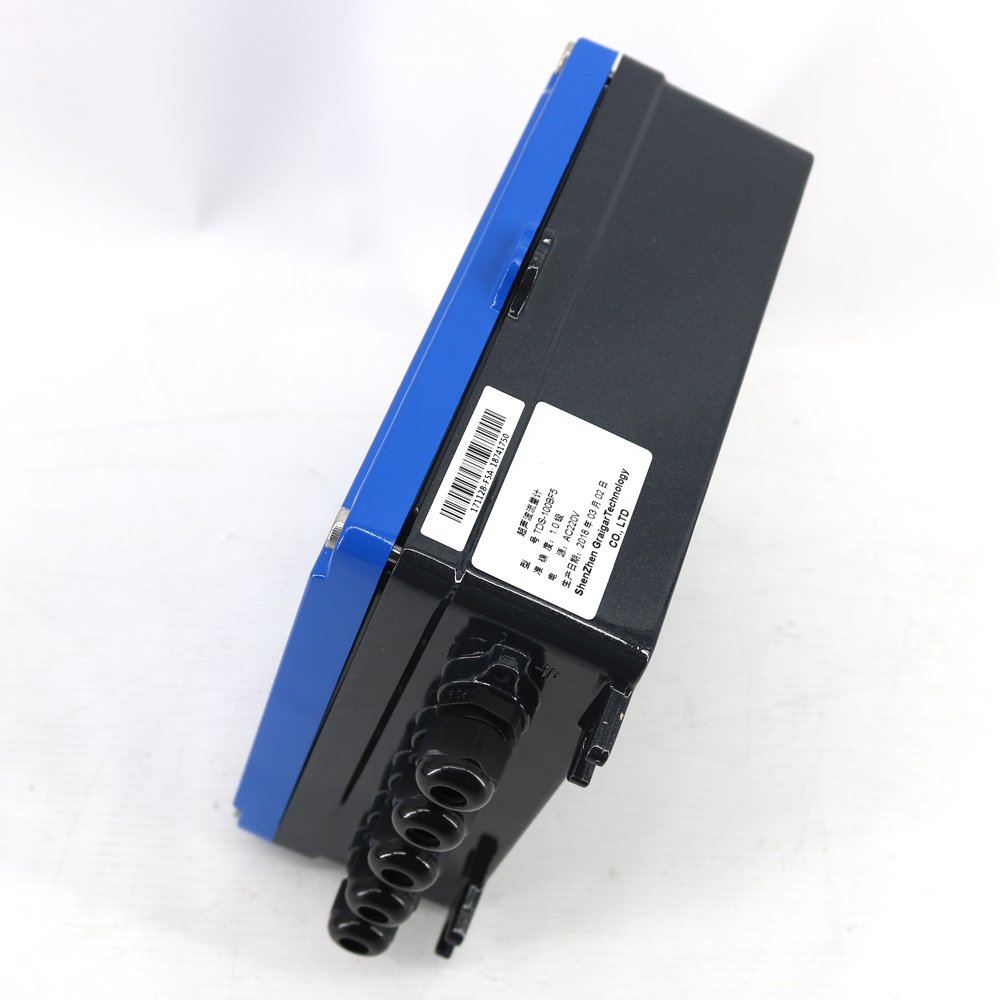

ItemName : Graigar TDS-100F5-M2 Fixed Wall-Mount Ultrasonic Flow Meters Flowmeter DN50-700mm 1.97-27.56in with M2 Transducer
ItemPackageDimensions_Height : 8.26 inches
ItemPackageDimensions_Length : 19.29 inches
ItemPackageDimensions_Width : 15.74 inches
ItemTypeKeyword : science-lab-flowmeters
Manufacturer : Graigar
Material : TL-1-HT-JUNEE NI
ModelNumber : TDS-100F5-M2
PartNumber : TDS-100F5-M2
PowerSourceType : Handheld
ProductDescription :

Specification:

Accuracy: Better than 1%

Measurement period: 500ms

The maximumflow rate: 64 m/s

Disply: 2*10 LCD display with english totalizers for net accumulation and positive and negative accumulations

Body material: Aluminium alloy

Operation: 2*5 membrane keyboards

Input:Three 4-20mA Current input,accuracy 0.1%,can collect temperature,pressure,level signals etc.

Two way three wired PT100

Data storage: Built-in SD sard can store time ,instant flow,totle flow,signal statusand so on ,via special Software send the data to computer ,and easy toStatistics and Management

Communication: MOBUS ,M-BUS,FUJI extension agreement ,compatible for other manufacturers's communication

Communication Interface:RS-232C,baud-rate :from 75 to 57600.Protocol made by the manufacturerand compatible with that of the FUJI ultrasonic flow meter.

Other functionAutomatic memory the negative and positive and net flow 512 days ago and 128 month ago and ten years ago .

Can automatic memory outage and flow data before thirty times ,can alsoachieve the flow automatically and manually refill,all flow can be read by MODBUS

Can programme ration or batch controller,Self diagnosis failure function

Can via email to transmit the code to update the software

Clamp-on

S2-type: for pipe size  (DN15~DN100mm)

M2-type: for pipe size (DN50~DN700mm)

L2-type: for pipe size (DN300~DN6,000mm)



Standard configuration:

TDS-100F5 Ultrasonic Flowmeter

Clamp Fixture

Standard M2 Transducer

2 x 5m Signal Cable

ProductSiteLaunchDate : 2018-05-16T07:00:00.000Z
Size : Large
Style : Digital
