Specification
Brand : AOTROY
BulletPoint1 : Gas mass flow meters are designed for low gas flow rate measurement in the gas pipelines of 3mm and 8mm in diameter.
BulletPoint2 : Flow rate range of 0~2, 5 L/min and 0~20, 50 L/min available with BST1/4 (R1/4) connection.
BulletPoint3 : Small gas mass flow meter is characterized with compact size, high accuracy and good repeatability.
BulletPoint4 : Gas mass flowmeter, LED display instantaneous flow and flow accumulation, suitable for compressed air, O2, N2 and a wide range of applications.
BulletPoint5 : Do not know how to choose the product specifications can let us know, we will help you recommend suitable for you.
IncludedComponents : Gas Mass Flow Meter

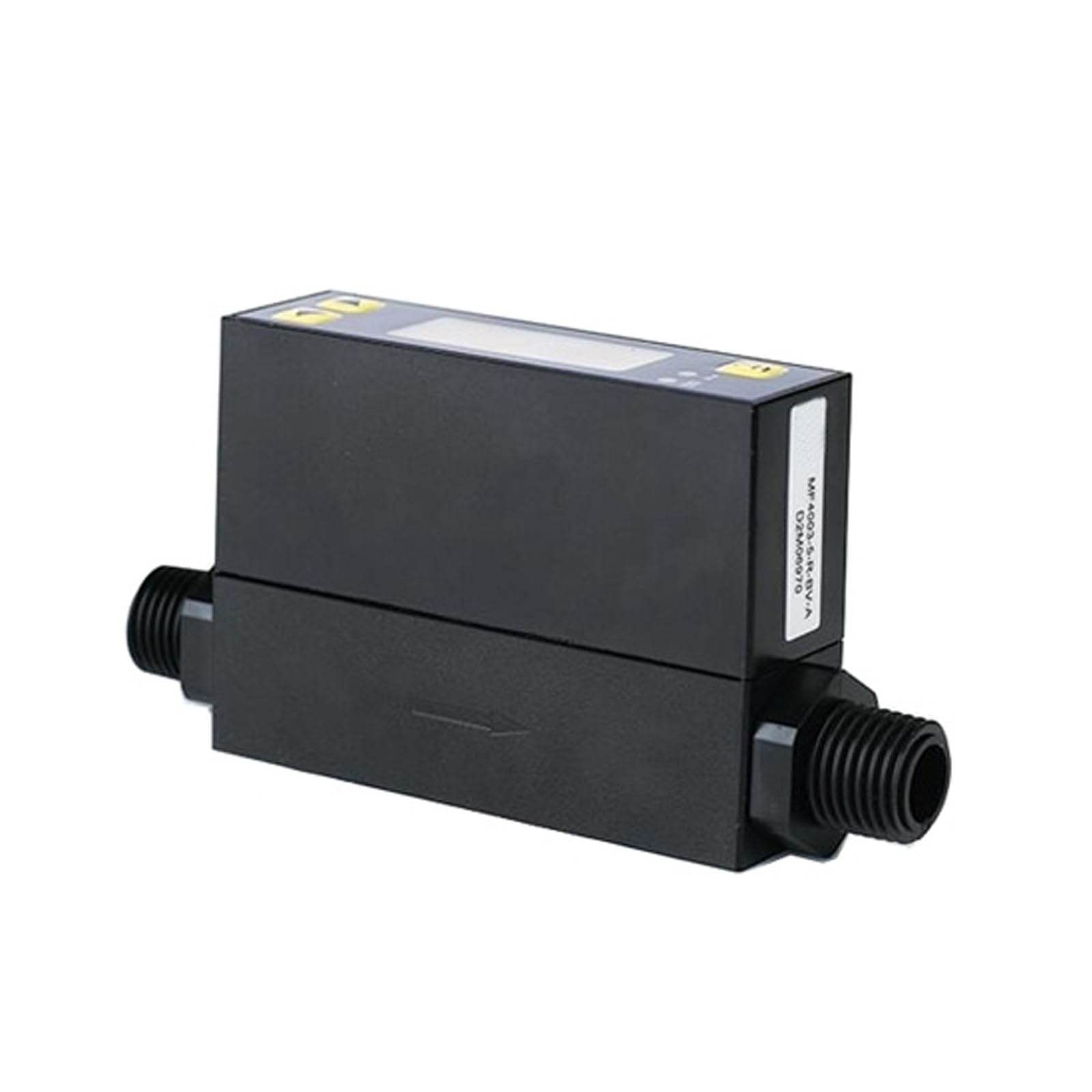

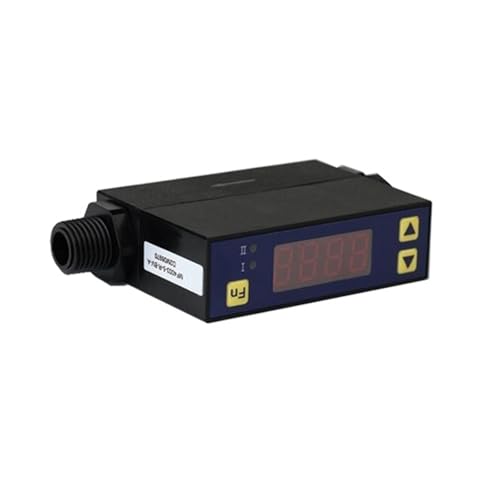

ItemName : Gas Mass Flow Meter, Air/O2/N2, 0-2/5/20/50L/min,5 Pins,Accuracy±(1.5+0.2)% FS (N2O, Flow Range:0-2 L/min)
ItemTypeKeyword : science-lab-flowmeters
Manufacturer : AOTROY
Material : N2O
NumberOfItems : 1
PartNumber : FLOW-MF4000
ProductDescription :

Model : MF4003,MF4008

Flow Range *: 0~2/5 L/min ; 0~20/50 L/min

DN : 3mm8mm

Gas *: Air, N2O, CO2, O2, N2, Ar.

Turn-down Ratio: 100:1

Accuracy: ±(1.5+0.2)% FS

Repeatibility: 0.25%

Zero Drift : ±30mV

Output Drift : ±0.12%/℃

Response Time: 10ms (default, 20, 50, 100, 200, 500, 1000 settable)

Power Supply: 8-24V DC, 50mA

Signal Output *: Linear: Analog 0.5~4.5V DC (Standard); RS232, RS485 (Optional)

Display: 4-digit 7-segment LED, 2 LED indicator

Display Unit: Instantaneous flow rate: SLPM, Flow accumulation: SL

Display Resolution: 0.001, 0.01, 0.1 L/min settable0.01, 0.1 L/min settable

Working Pressure: ≤0.5MPa

Pressure Loss: ≤100Pa≤600Pa

Working Temperature: -10℃ ~ +55℃

Storage Temperature : -20℃ ~ +65℃

Humidity: <95%RH (no icing or condensation)

Keyboard: 3 keys

Pin Out: 5 Pins, NS-TECH CD R-5

Mechanical Connection: BST1/4 (R1/4)

Calibration: Air @20℃, 101.325kPa

Weight: 75g

Note: For N2O and CO2, MF4003 is selectable with 2 L/min, without 5 L/min; MF4008 is selectable with 20 L/min, without 50 L/min.
