Specification
Brand : KUAOXK
BulletPoint1 : 1. The screen can provide clear readings, and the internal accessories are made of stainless steel.
BulletPoint2 : 2. Plug and play, compact size, stable performance. Easy to replace and maintain internal components, suitable for output modules, sensors and remote transmitters.
BulletPoint3 : 3. LCD display: The LCD screen can display instantaneous flow and cumulative flow.
Color : One Color
ExternallyAssignedProductIdentifier : 7635668164547

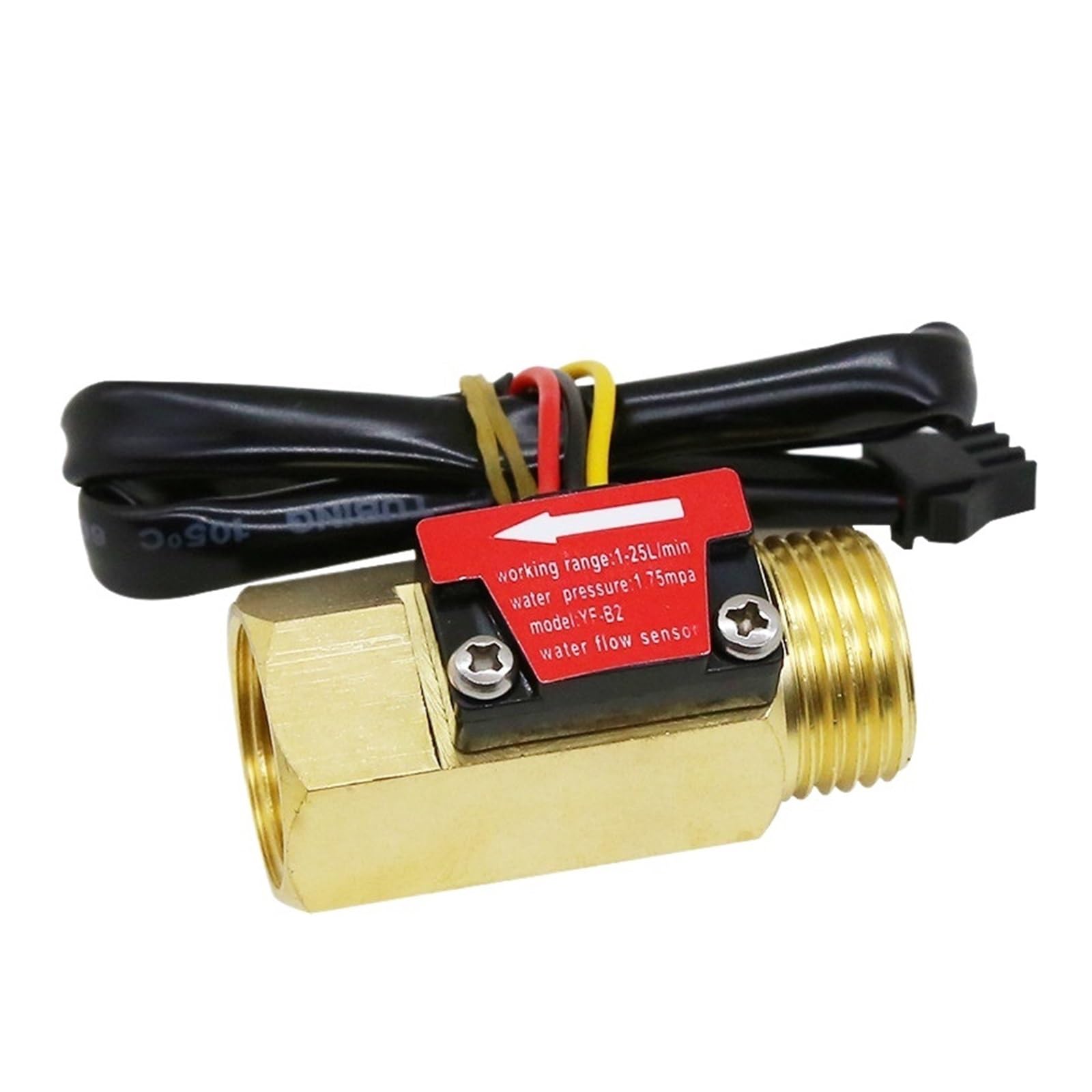

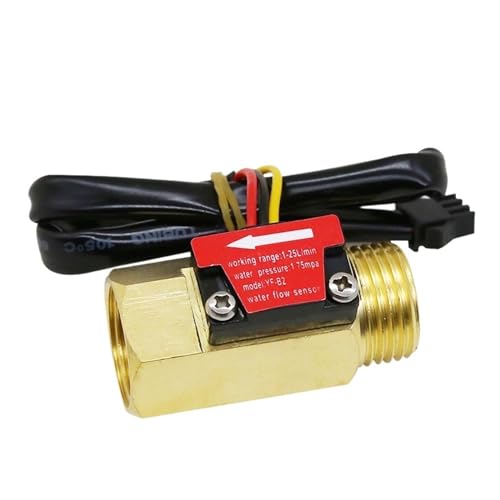

ItemName : Flow Sensor Meter Digital Pipeline Water Flow YF-B1 YF-B2 YF-B3 BSP G1/2" Flow Sensor Meter 1-25L/min Flow Meter Water Flow Sensor(YF-B2)
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-flowmeters
Manufacturer : KUAOXK
Material : metal
MeasurementAccuracy : 1
ModelName : KUAOXK
ModelNumber : KUAOXK
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KUAOXK
PowerSourceType : AC
ProductDescription : 1. Zero function, instantaneous flow and cumulative flow readings on the display screen, the readings are intuitive and clear, and highly reliable
2. Strong and durable, long service life, small size, accurate measurement and simple operation.
3. Internal thread, easy to install, tight sealing, no leakage.
Model: YF-B1
Specifications:
Interface size: 4 points (G1/2)
Working voltage range: DC5-18V
Inner diameter/outer diameter: inner diameter water inlet 15.4, water outlet 13.5mm/outer diameter 20.5mm
Thread length: 9.3mm
Water pressure resistance: 1.75MPa
Output pulse high level: >DC4.7V (input voltage DC 5V)
Output pulse duty cycle: 50%±10%
Insulation resistance: >100M
Flow range: (at 1-25L/MIN)±3%
Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute, no leakage and deformation
Pulse frequency: (Hz)=[ 11*Q ]±5%(Q--flow L/min )
Model: YF-B2
Specifications:
Interface size: 4 outer teeth for the water inlet, 4 inner teeth for the water outlet (G1/2)
Working voltage range: DC5~18V
Inner diameter/outer diameter: inner tooth inner diameter 20.8 outer tooth inner diameter 14.5/outer diameter 20.7
Thread length: 10.6mm
Material: Copper
Water pressure resistance: 1.75MPa
Output pulse high level: >DC 4.7V (output voltage DC 5V)
Output pulse duty cycle: 50%±10%
Tightness: Close each hole, add 1.7MPa water pressure test for 1 minute without leakage and deformation
Model: YF-B3
Specifications:
Interface size: 4 outer teeth for the water inlet, 4 inner teeth for the water outlet
Working voltage range: DC5-18V
Inner/Outer Diameter: 15mm/20.8mm
Thread length: long teeth 18.5mm short teeth 10.5mm
Material: Copper
Water pressure resistance: 1.75MPa
Output pulse high level: >DC4.7V (input voltage DC 5V)
Output pulse duty cycle: 50%±10%
Insulation resistance: >100M
Flow range: [at 1-25L/MIN]±3%
Tig
ProductSiteLaunchDate : 2024-08-03T01:45:26.558Z
Size : YF-B2
UnitCount : 1
