Specification
AgeRangeDescription : adult
Brand : Dasiter
BulletPoint1 : The appearance of this product is light and flexible, small in size, plug and play, easy to install.
BulletPoint2 : The impeller is equipped with a stainless steel shaft, with more effort to extend the service life.
BulletPoint3 : The sealing ring adopts the structure of the upper and lower stresses to never leak.
BulletPoint4 : The Hall element is imported and isolated from water to prevent water ingress and never aging.
BulletPoint5 : All raw materials are in compliance with ROHS testing standards.
CareInstructions : Wipe Clean
Color : White
ExternallyAssignedProductIdentifier : 7509081795322
ExternallyAssignedProductIdentifier1 : 0824007326754
ExternallyAssignedProductIdentifier2 : 824007326754
Hazmat : auto-grounding
ItemDisplayWeight : 2 pounds

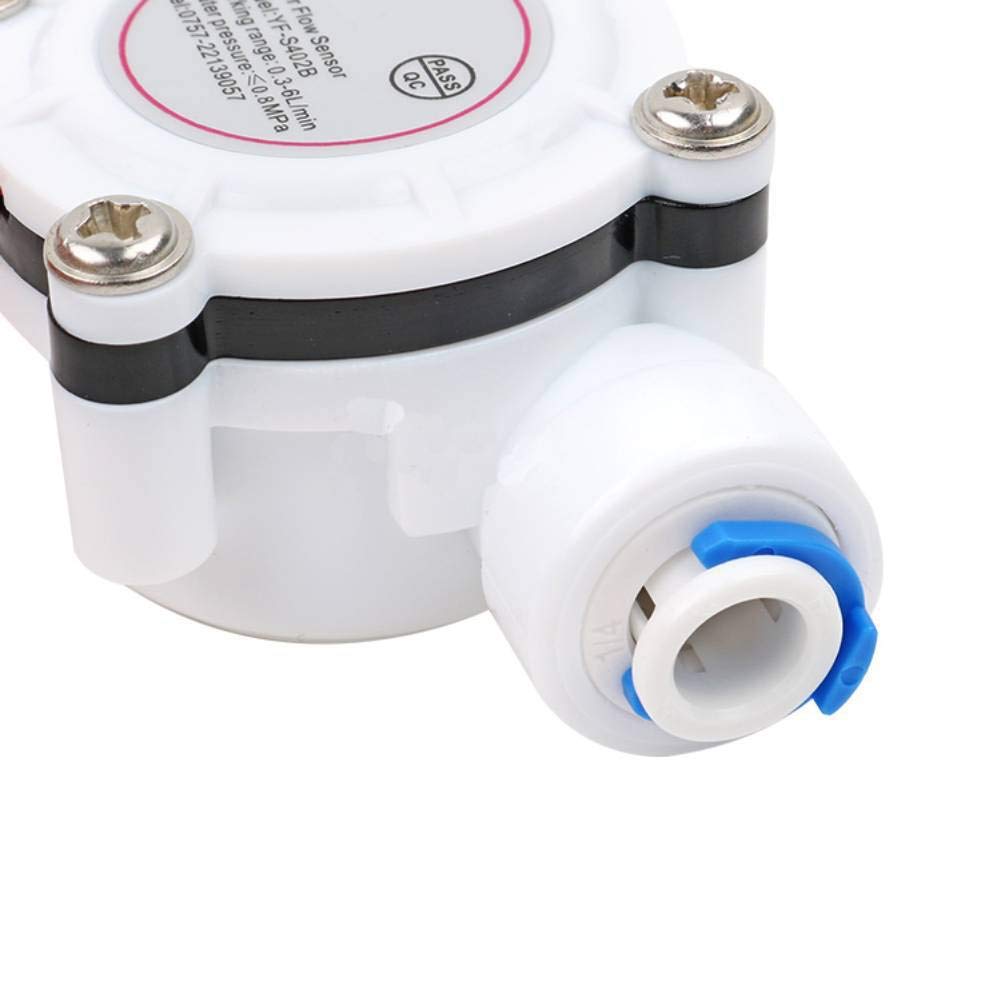

ItemName : 1/4" Hall Water Flow Sensor PE Tube Quick Connect High-Precision Flowmeter Fluid Flow Rate Counter Meter Coffee Machine Flow Meter 0.2-8L/Min
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangular
ItemTypeKeyword : science-lab-flowmeters
Manufacturer : Dasiter
Material : Glass
Material1 : Glass
Material2 : Rubber
ModelName : 1005003730448784
ModelNumber : 1005003730448784
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DA096-Water Flow Sensor
ProductDescription : The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor. It is installed on the water inlet of various coffee machines, water dispensers, and electrolysis machines. It is used to detect the water inlet flow rate. When water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate change. The Hall sensor outputs a corresponding pulse The signal is fed back to the controller, and the controller judges the size of the water flow and regulates it.

Technical parameters

1 Starting water flow: <0.2L∕min
2 Starting water pressure: <0.1Mpa
3 Working water flow range: 0.2－8L∕min
4 When cleaning the residual water on the impeller with air, pay attention that the output signal cannot be higher than 150HZ, and the idling time should be within 30 seconds.
5 Maximum withstand water pressure; 0.8Mpa
6 Working voltage range: 3.5-12VDC (DC voltage) DC voltage
7 Working current: 0.5－1.5mA
8 Working environment temperature: 1-100℃
9 Applicable ambient temperature: –40－100℃
10 Output characteristics: [38*Q] Q is the flow rate L/min Hz (Hertz) error ±3%
11 Service life: 106 H (hour) 5V DC 1mA
12 Electric strength: >600V AC (AC voltage) Duration 5S Leakage current 3mA
13 Insulation resistance: >100mΩ (Megohm) Insulation resistance between connector and housing or valve body

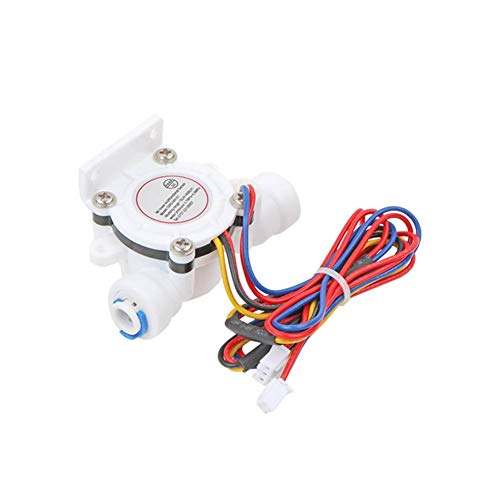

Wiring Method:

Red---IN---Connect to positive

Yellow---OUT---Signal output line

Black---GND---Connect to negative

Precautions for use:

Severe impact and chemical attack are strictly prohibited.
Throwing or collision is strictly prohibited.
Install the inlet and outlet water according to the arrow on the product.
The medium temperature should not exceed 120 degrees.

Package Included:

1 x 1/4" Hall Water Flow Sensor

ProductSiteLaunchDate : 2020-06-20T14:32:34.165Z
Reusability : Reusable
Size : 1
StreetDate : 2017-03-12T00:00:01Z
Style : Classic
TemperatureRange : 0-150 degrees_celsius
UnitCount : 1
UnspscCode : 41000000
