Specification
AgeRangeDescription : adult
Brand : Sonew
BulletPoint : Valves
BulletPoint1 : Wide Application: Can be used for water heater, credit card machine, water vending machine and so on.
BulletPoint2 : Stable Working: Resistant to high temperature, enables stable working as well as low pressure starting.
BulletPoint3 : Water Meter: Mainly consisted of a valve body, a water rotor assembly and a Hall sensor.
BulletPoint4 : For Control: When the water passes through the water rotor assembly, the magnetic rotor rotates and the speed changes with the rate. The Hall sensor outputs the corresponding pulse and feeds it back to the controller to judge the size of the water and adjust it.
BulletPoint5 : Easy to Install: Designed to have a light weight and a small size, very easy to store and install.
Color : One Color
ExternallyAssignedProductIdentifier : 7320479336169
IncludedComponents : No

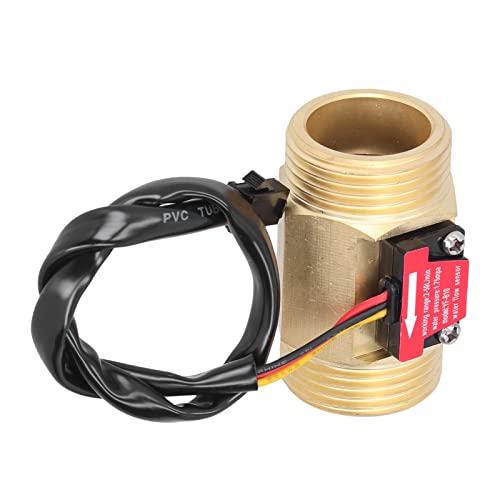

ItemName : Water Meter, Male Thread Hall Flows Sensor Secure Sealing for Control
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-flow-sensors
Manufacturer : Sonew
ModelName : Sonewdbefyg3kvs
ModelNumber : Sonewdbefyg3kvs
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Sonewdbefyg3kvs
ProductDescription : 1. For Control: When the water passes through the water rotor assembly, the magnetic rotor rotates and the speed changes with the rate. The Hall sensor outputs the corresponding pulse and feeds it back to the controller to judge the size of the water and adjust it.
2. Water Meter: Mainly consisted of a valve body, a water rotor assembly and a Hall sensor.
3. Wide Application: Can be used for water heater, credit card machine, water vending machine and so on.
4. Stable Working: Resistant to high temperature, enables stable working as well as low pressure starting.
5. Easy to Install: Designed to have a light weight and a small size, very easy to store and install.

Specification:
Item Type: Water Sensor
Output Output NPN pulse
Model: YF-B10
Interface Size: 1.3in british system male external thread.
Rated Voltage: 24VDC
Inner Diameter: Approx. 24.38mm / 1in
Outer Diameter: Approx. 32.9mm / 1.3in
Thread Length: Approx. 13mm / 0.5in
Material: Brass
Water Pressure : >1.75MPa
Output Pulse High Level: >DC4.7V (input voltage DC5V)
Output Pulse Duty Cycle: 50%±10%
Load Capacity: ≤10mA (DC5V)
Insulation : >100MΩ
Range: 2~50 L/min ± 5%
Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute, no leakage and deformation.
Pulse Characteristics: F=(8xQ-4)±5%, F is frequency, Q is L/Min.

PackageList:
1 x Water Sensor

Notice:
1. Severe impact and chemical erosion are strictly prohibited.
2. Throwing or collision is strictly prohibited.
3. Install in the direction of the installation arrows on the product.
4. The temperature of the medium should not exceed 120℃.
ProductSiteLaunchDate : 2024-09-26T13:52:12.853Z
Size : One Size
UnitCount : 1
UnspscCode : 30180000
