Specification
Brand : Respicefinem
BulletPoint1 : Seamless Integration for Diverse Applications: Engineered with a universal NPT thread connection and compatible with voltages ranging from 6 to 380V, the STFS-25 water switch easily integrates into existing pipelines. It caters to monitoring needs of water, , and other non-hazardous fluids
BulletPoint2 : Robust Construction for Reliability: Crafted with a combination of bronze and stainless steel for bellows and blades, this water switch stands up to corrosive environments and high-pressure systems, maintaining functionality in temperatures ranging from -25°C to 120°C and pressures up to 15 bars
BulletPoint3 : Adjustable Sensitivity for Customized Control: Adjustable settings allow fine tuning of the switch activation point to meet specific application requirements. This direct regulation mechanism allows precise control of circuit turn-on or turn-off times based on fluid , resulting in improved system responsiveness
BulletPoint4 : Built-in Protection Mechanisms: The STFS-25 features a SPDT (single-pole, double-throw) switch for immediate response to fluctuations, ensuring timely interlocking or shutdown. In applications where fast response to deviations is critical
BulletPoint5 : Installation and Maintenance: With clear installation and adjustment instructions, this water pipe switch is designed for ease of setup and ongoing maintenance. The ability to test the switch's function post-installation ensures correct operation, while the sealed adjustment screw prevents unauthorized, safeguarding against accidental misconfiguration
Color : One Color
ExternallyAssignedProductIdentifier : 7650202039679

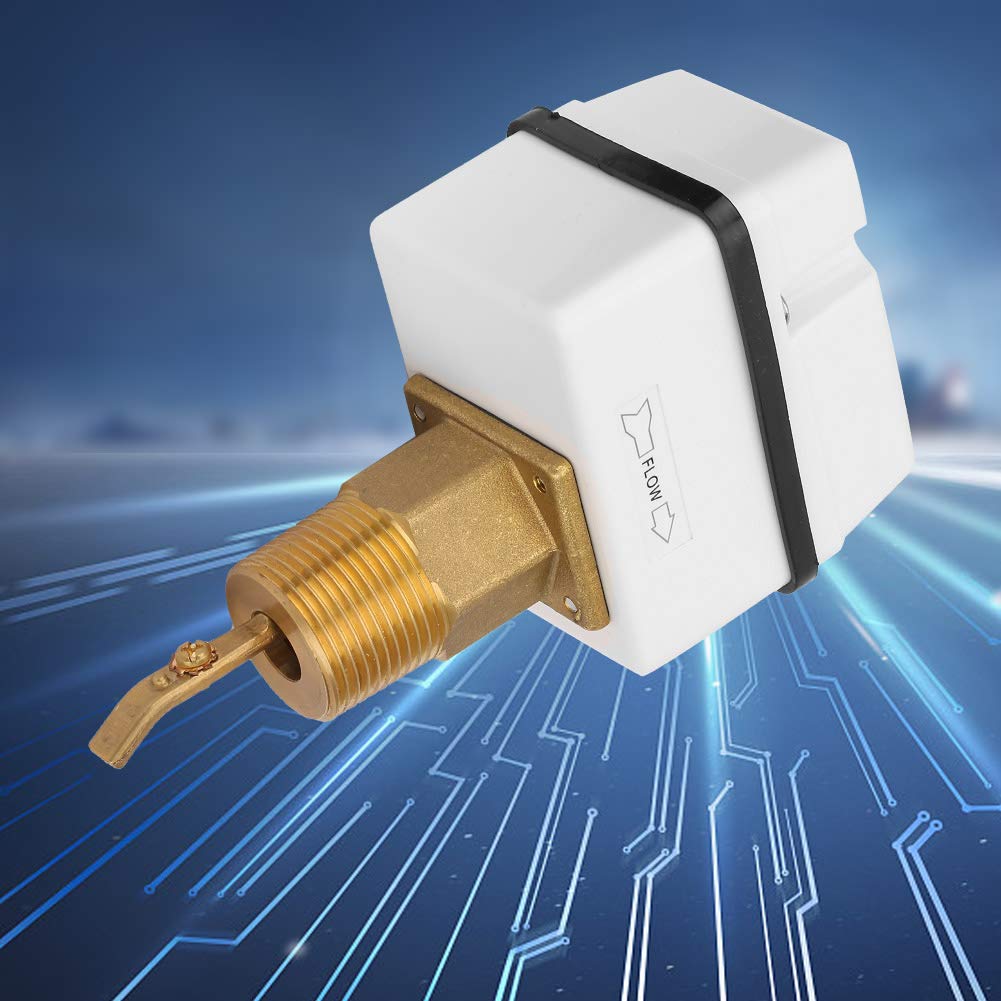

ItemName : Respicefinem Stfs-25 Water Pipe Switch Sensor Npt Thread Connection Spdt Contacts 6‑380v Single Pole Double Throw Controller Water Switch Tank Water Pipe Switch
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-flow-sensors
Manufacturer : Respicefinem
ModelName : ODJTTIGmzy6hipok0
ModelNumber : Respicefinemrnpxuw2q6m
NumberOfItems : 1
PartNumber : Respicefinemrnpxuw2q6m
ProductDescription : Features:
Used for sensing changes in the rate of liquids flowing through pipes, such as water, ethylene, or other non-hazardous liquids.
When the liquid exceeds or falls below the set rate, its single-pole double-throw switch (SPDT) can make one circuit conduct, while cutting off the other circuit.
The switch is usually used in places where interlocking or cut-off protection is required.
STFS-25 fully sealed liquid switch can use different slurry according to the rate of installed pipeline.


Specification:
Wide voltage:6-380V

Pipe fittings: 1 11-1/2NPT
Material of bellows and blades: phosphorous bronze and stainless steel
Blade: 1, 2, 3 , 6
Liquid temperature (℃) : -25-120
Maximum liquid pressure: (bar) : 15

Installation and adjustment:
1. Open the switch housing;
2. The switch has been set at the minimum value when leaving the factory. Increase the setting value and turn the adjusting screw clockwise;
3. Press the target piece to check whether the micro switch can work normally. Excessive counterclockwise rotation of the adjustment screw may lead to the failure of the switch;
4. After the installation, please press the switch to check the pulp bar several times. One day, there is no click sound when the pulp bar returns.Turn adjusting screw clockwise until there is a click sound;
5. The adjustment screw of black lacquer seal is only for factory to adjust the switch state, please do not change or adjust it;
6. Observe three working cycles, make sure that the switch and the system connected with it are in normal operation, and cover the switch shell in time.

Package list:
1 x liquid switch
1 x Chinese and English manual
4 x target piece



ProductSiteLaunchDate : 2024-08-27T07:26:54.363Z
Size : One Size
UnitCount : 1
UnspscCode : 39122200
