Specification
Brand : Generic
BulletPoint1 : Mainly used for water heaters, fireplaces, fountains, coffee machines, hot card machines, steam equipment, water sales on campus card systems, self-service sale of water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.
BulletPoint2 : Electrical parameters:
BulletPoint3 : Model
BulletPoint4 : OKD-HS25
BulletPoint5 : Product Features

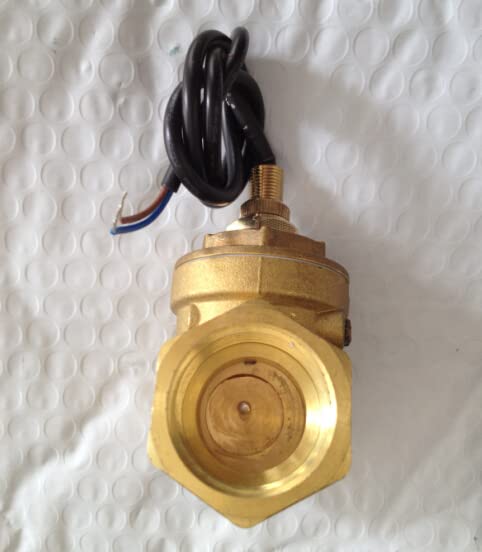

ItemName : OKD-HS25 caliber DN25 piston flow switch brass water meter output switching signal
ItemTypeKeyword : electronic-component-flow-sensors
Manufacturer : Generic
PartNumber : PHS-C56B19D9582DB8243F52161EF2D55128
ProductDescription : How it works:
Water flow rate sensor using a Hall element to measure a Hall effect magnetic sensors of physical quantities. Water flow sensor is mainly composed of copper valve, flow rotor assembly, steady flow components and Hall sensors, installed in the inlet end of the water heater is used to detect the size and water flow off.
And passing a current in a direction orthogonal to the magnetic field direction of the Hall element into a string of positive load resistor, while passing a DC voltage of 5V. When the water through the turbine rotor magnetic switch housing when pushed, resulting in different magnetic poles of the rotating magnetic field, magnetic flux lines cut to produce low pulse level. Since the Hall element is proportional to the rotational speed of the output pulse signal frequency and the magnetic rotor, and the rotor speed is proportional to the water flow, water flow according to the size of the boot.
Main Applications:
Mainly used for water heaters, fireplaces, fountains, coffee machines, hot card machines, steam equipment, water sales on campus card systems, self-service sale of water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.
Electrical parameters:
Model
OKD-HS25
Product Features
Built-piston up and down, the piston inside the permanent magnet with reed switch signal is given (0/1)
Material
Bronze, the tooth interfaces
LWH mm
68 * 39 * 75
The teeth Interface
G1 "
Start Flow
3.5L/min
Maximum flow
30L/min
Switching Power
70W
Working Pressure
0.005-1.0Mpa
The maximum pressure
1.5Mpa
Use Media
Water, if used in other liquid media please explain, professional configured by my factory
Operating Temperature
Below 80
Installation
Product direction arrows into the water, horizontal mounting
Flow regulat
