Specification
Brand : Grid Controls
BulletPoint : Useful in the following applications: Water treatment systems, Aquarium, water chiller plants, chemical dosing, pump control Pump Systems Blending or Additive Systems Liquid Transfer Systems Fire Sprinkler Systems Water Treatment Systems Solar systems Pool cleaning systems Irrigation systems
BulletPoint1 : Compatible Pipe Materials of this clip-on ultrasonic flowmeter: Stainless steel, iron, copper, resin PVC, others.
BulletPoint2 : Power supply: DC10-24V Accuracy: ±2%, up to ±1% after calibration. Supported media: water, others (single without solid particles and impurities) Supported pipeline materials: hard material pipes such as metal, PVC, PP or PVDF Electric power: less than 3W Ambient temperature: -10~60°C (no freezing) Supported medium temperature: 0~75°C (no freezing on the surface) Cable length: standard 2 meters Machine material: aluminum alloy, industrial plastic Power supply and electrolyzer: M12 aviation plug
BulletPoint3 : Only supports low viscosity liquids, such as water, chemical liquids, oil, diesel, etc. Sampling frequency: 300 milliseconds. Maximum flow speed: 10m/s
BulletPoint4 : Easy to operate and easy to read
BulletPoint5 : 90 - 240 VAC
Color : One Color
Department : unisex-adult
ExternallyAssignedProductIdentifier : 7650056151497
ExternallyAssignedProductIdentifier1 : 0697937181218
ExternallyAssignedProductIdentifier2 : 697937181218
IncludedComponents : Not Included

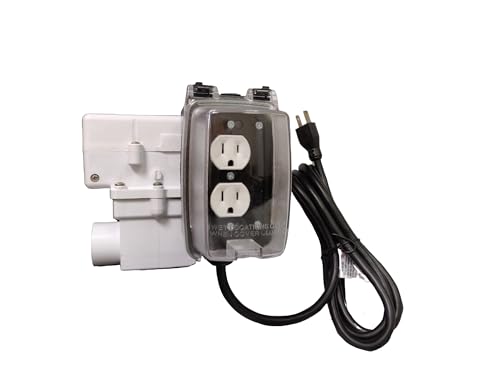

ItemName : FLOW SWITCH, Grid Controls 2" M210 10A Flow Switch with electrical box, dual receptacle and cord, Chemical Dosing Control, For Pump
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-flow-sensors
Manufacturer : Grid Controls
Material : Polypropylene
Material1 : bronze
Material2 : glass
MaximumFlowRate : 15 gallons_per_minute
MaximumSupplyVoltage : 18 volts_of_direct_current
MeasurementAccuracy : ±3%
MeasuringRange : 0.3 - 10 L/min
ModelName : CUFTOBJM
ModelNumber : CUFTOBJM
MountingType : Flange Mount
NumberOfBoxes : 1
NumberOfItems : 1
OutputType : NPN
PackageLevel : unit
PartNumber : 57-F1-2212-010
PowerSourceType : Solar Powered
ProductDescription : To use with pumps and heaters without any wiring hassle. Just plug your water (bottom receptacle) and chemical dosing pump (top receptacle). The flow switch has a 10A microswitch that provides closed contact when there is a water flow and open contact when there is no water flow. The microswitch is prewired to remove any wiring need. The flow switch provides dual NEMA 5-15 receptacle in weatherproof box and in-use cover and 9' power cord with NEMA 5-15 plug. All UL rated components are used in construction. The bottom receptacle is always HOT (powered) and can be used for a water pump. The top receptacle turns ON/OFF with the microswitch and can be used for single phase chemical dosing pump. Micro Switch Rating: 10A Maximum 230V Turn On at and above 13 GPM flow. Turn off at and below 5 GPM flow. 2" PVC Inlet and outlet spigot connections, Glue type, insert flow switch into 2" pipe socket and glue it. Wetted Surfaces - PVC, Polypropylene, Buna N, SS304 Line Pressure: 50 PSI Temperature: Up to 110 deg F Underwriters Laboratories recognized. 10A dry contact. 1/2" Electrical Conduit Connection Useful in the following applications: Pump Systems Blending or Additive Systems Liquid Transfer Systems Fire Sprinkler Systems Water Treatment Systems Solar systems Pool cleaning systems Irrigation systems Note: 1. Adding flow switch in the line will add pressure drop and restrict the water flow. You can expect 10-15 GPM maximum water flow through our 1" flow switch depending on your water pressure. 2. Installation and troubleshooting instructions are available on our website.
ProductSiteLaunchDate : 2023-12-19T11:21:40.865Z
Size : 0928400757
SpecificUsesForProduct : Water Pump
Style : DN50-DN65
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
UnitCount : 1
UnspscCode : 39122200
UpperTemperatureRating : 80 degrees_celsius
Voltage : 110 volts
