Specification
Brand : DINGGUANGHE-CUP
BulletPoint1 : Bearing Design
BulletPoint2 : Bearing Height: bearing diameter from the shaft, the shaft is determined, so by loading conditions, load bearing by bearing a high pressure P (N/mm²) of the decision，
BulletPoint3 : usually bearing the L/D (bearing height/bearing diameter), the ratio in the range of 0.5-3 for the appropriate, but should pay particular attention to the high load,
BulletPoint4 : easy cause deviation contacts, high-speed situations caused by heat, then L/D is more appropriate to take the following 1.
BulletPoint5 : Bearing wall: plain bearings with rolling bearings compared to the wall thickness less restricted, thin wall thickness of one of its main advantages. Under normal circumstances, the wall thickness t= (0.05~0.07) d= (2~5) mm.
ExternallyAssignedProductIdentifier : 8306045930893

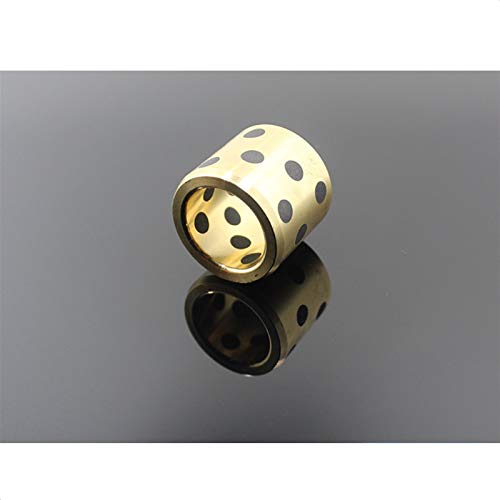

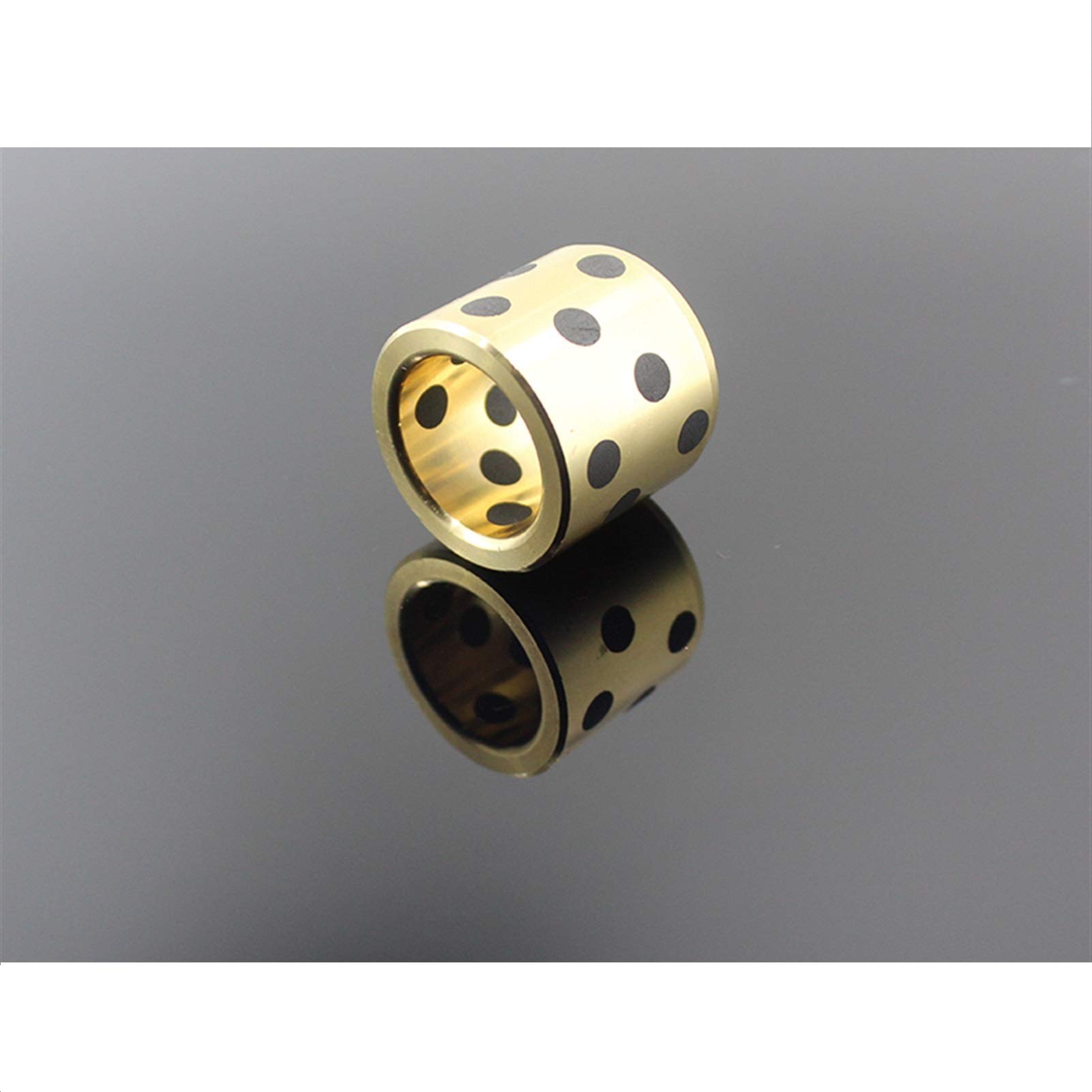

ItemName : DINGGUANGHE-CUP Flanged Bearings Solid Lubricating Bearing Bushing JDB122130 JDB121840 JDB121615 JDB121610 (2Pcs) JDB Bearings Industrial Products (Diameter : JDB121610)
ItemPackageQuantity : 1
ItemTypeKeyword : flanged-sleeve-bearings
Manufacturer : DINGGUANGHE-US
Material : Metal
NumberOfItems : 1
PartNumber : DINGGUANGHE-US
ProductDescription : Premium Flanged Ball Bearing.
Demensions

Type: JDB Solid Lubricating Baring
Material: Tin-Plating
Model Size Quantity
JDB101412 10x14x12 mm 2 Pcs
JDB101410 10x14x10 mm 2 Pcs
JDB101215 10x12x15 mm 2 Pcs
JDB101625 10x16x25 mm 2 Pcs
JDB122130 12x21x30 mm 2 Pcs
JDB121840 12x18x40 mm 2 Pcs
JDB121615 12x16x15 mm 2 Pcs
JDB121610 12x16x10 mm 2 Pcs

Caution

1 Before assembly, on the terms of lubricant applied to the grinding parts can be cut short walk in period, is conducive to operation of machinery, running;
2 Clean the surface of the assembly when foreign body, preferably refrigerated assembly, such as unconditional, they should slowly push, non-beating, to avoid harming the bearings and cause deformation;
3 Face after use, due to solid lubricant film lead to the formation of black or gray surface phenomenon. Do not scrub as usual;
4 Working environment where corrosive or in water use, the shaft is recommended the surface of stainless steel or chrome.

Structure Characteristics and Applications

It is backed with strengthening brass that has good physical performance and good capability for casting. What’s more, the brass backing has pretty good anti-erosion ability in air, fresh water and seawater. The surface is regularly and finely machined with sockets in witch particular solid lubricant is filled. The Product is widely used on consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc.
ProductSiteLaunchDate : 2021-04-10T11:18:08.515Z
Size : JDB121610
SpecificationMet : Steam
