Specification
Brand : Cansookay
BulletPoint1 : Low Working Pressure Max 1/2 PSI (65mbar), CE&CSA tested Main Control Valve In & Out with 3/8" Male Flare thread. (Max BTU rating: 50000)
BulletPoint2 : Material: The fire pit gas control valve kit are made of high quality brass material with heavy-duty construction for durable use.
BulletPoint3 : Size: Thermocouple Length: 600mm/23.62inch; Head Tip: M8; Knob Diameter 44mm; "D" Insert for Valve: 6.0-6.1mm.
BulletPoint4 : Keep The Thermocoupler to be Heated and Push the Valve around 5-10s Then Release Hand (If Flame stops, Ajust the location of Thermocouple tip)
BulletPoint5 : ATTENTION: It’s a low pressure valve rated around 50000BTU need to work with thermocouple, please confirm your system before order to avoid return.
Color : gold
ExternallyAssignedProductIdentifier1 : 762716203594
ExternallyAssignedProductIdentifier2 : 0762716203594
FinishType : Oil Rubbed Bronze
FormFactor : 盘子
FuelType : Propane
Hazmat1 : DANGEROUS GOODS IN APPARATUS (gas)
Hazmat10 : DE_Unregulated
Hazmat11 : EG_Unregulated
Hazmat12 : ES_Unregulated
Hazmat13 : FR_Unregulated
Hazmat14 : GB_Unregulated
Hazmat15 : IE_Unregulated
Hazmat16 : IN_Unregulated
Hazmat17 : IT_Unregulated
Hazmat18 : JP_Unregulated
Hazmat19 : MX_Unregulated
Hazmat2 : UN3363
Hazmat20 : NL_Unregulated
Hazmat21 : PL_Unregulated
Hazmat22 : SA_Unregulated
Hazmat23 : SE_Unregulated
Hazmat24 : SG_Unregulated
Hazmat25 : TR_Unregulated
Hazmat26 : US_Unregulated
Hazmat27 : ZA_Unregulated
Hazmat3 : 9
Hazmat4 : AE_Unregulated
Hazmat5 : AU_Unregulated
Hazmat6 : BE_Unregulated
Hazmat7 : BR_Unregulated
Hazmat8 : CA_Unregulated
Hazmat9 : CN_Unregulated
HeatingMethod : Forced Air
IncludedComponents : 3/8" Flare Inlet & Outlet, Fits
IndoorOutdoorUsage : indoor
InstallationType : Freestanding

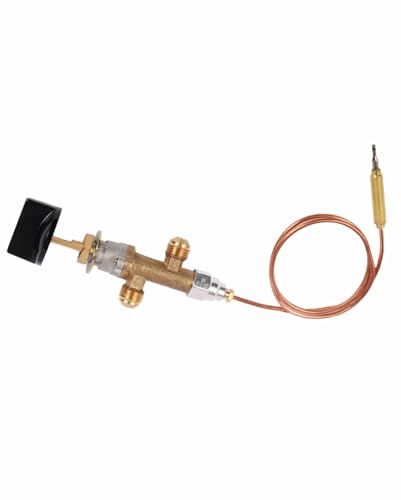

ItemName : Low Pressure LPG Propane Gas Fireplace Fire Pit Flame Failure Safety Control Valve Kit with Thermocouple and Knob Switch, 3/8" Flare Inlet & Outlet, Fits for Gas Grill, Heater, Fire Pit, Fireplace
ItemPackageDimensions_Height : 14.7066 centimeters
ItemPackageDimensions_Length : 4.0894 centimeters
ItemPackageDimensions_Width : 9.7028 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : fire-pit-and-fireplace-parts
Manufacturer : cansookay
Material : Brass
ModelName : fire pit safety control valve
ModelNumber : fire pit safety control valve
MountingType : Floor Mount
NumberOfBoxes : 1
NumberOfItems : 1
Orientation : Corner
PackageLevel : unit
PartNumber : A500-12
PowerSourceType : gas_powered

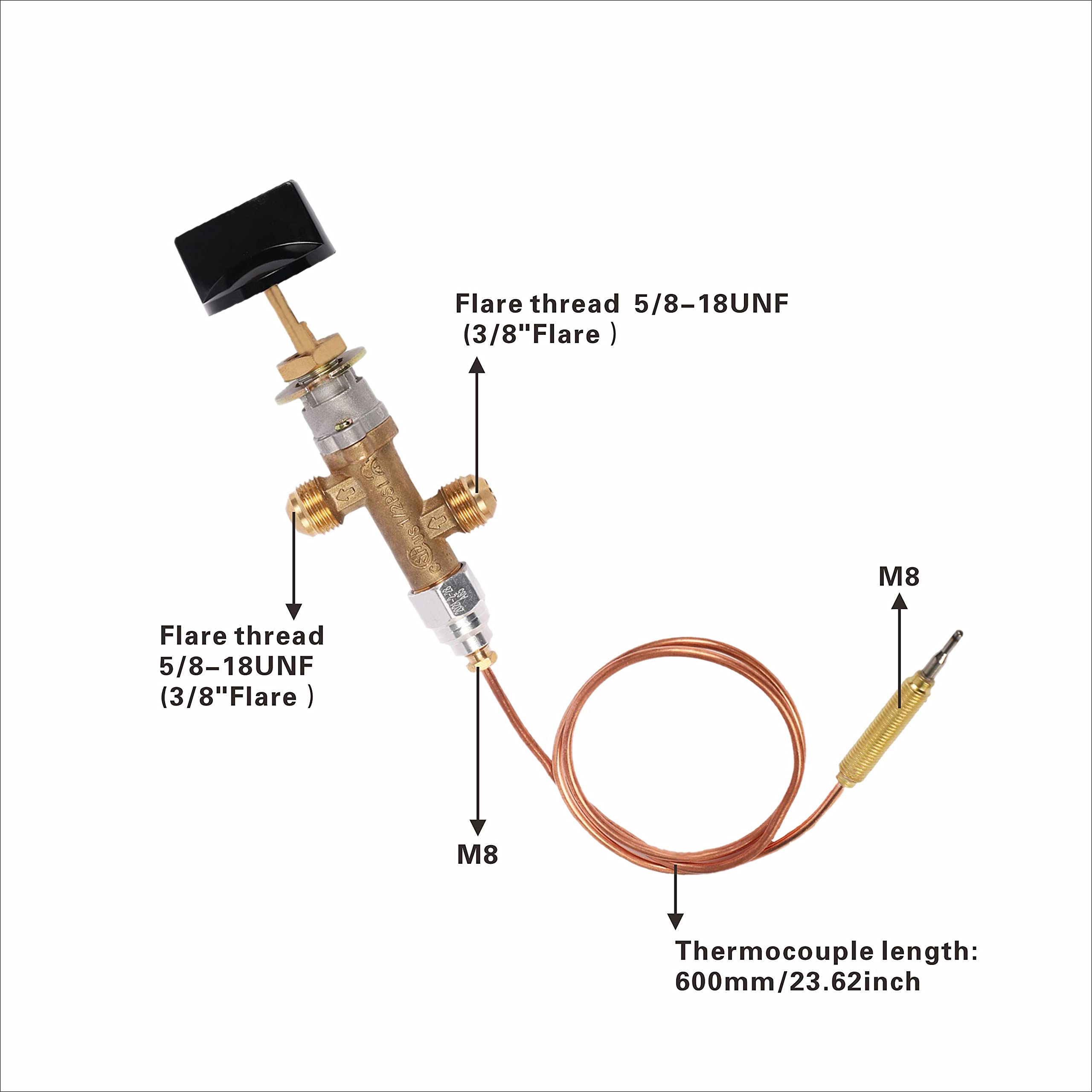

ProductDescription : Specifications:

Total Length: 600mm

Head Thread Size: M8*1

End Connection Size for Valve: M8*1

Max BTU rating: 50000

Working pressure: 65mbar Voltage:>20mV

Thermocouple temperature: 200 650 Degree Celsius

Time For Opening Valve: Less Than 10s

Operation Instructions

1) Fix the valve on a plate or board of your grill or fire pit by the head screw and flange.

2) Connect your inlet and outlet hose on inlet and outlet side. (fix it tightly enough in case of gas leakage)

3) Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread if 8mm before you buy)

4) Connect thermocouple and end thread well

5) Open gas by correct size knob and push your valve around 510s till the thermocouple head is heated enough.

6) Release your hand and it work properly If when you release hand, gas valve shut off again, please check a. If your thermocouple is always be heated on flame b. If the thermocouple end is well connected with valve c. If the inlet and outlet side well connect with hose you have Possible problems occurs during your use: Valve after turn can not stick during using Reason: a.

The thermocouple head is not heated in right place, please adjust thermocouple tip position; b.

The connection between thermocouple end and valve is not connected tight enough or too tight, please adjust the screw again.

Solution: Need to push valve first then turn the spindle and hold for few seconds, it cannot stick immediately may need 515 Seconds.

Package Content: 1Pcs x Gas Control Valve with Thermocouple and Knob Switch

ProductSiteLaunchDate : 2021-03-26T15:16:07.368Z
RoomType : Kitchen
RoomType1 : Living Room
RoomType2 : Kitchen
Size : 8.35 x 3.43 x 2.6 inches
SpecificUsesForProduct1 : Indoor
SpecificUsesForProduct2 : Outdoor
Style : Classic
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 40141600
Voltage : 20 millivolts
WarrantyType : Limited
