Specification
Brand : RABEEXP
BulletPoint1 : ✅【Product Parameters】Name: #2 Bag Filter; Material: 304 stainless steel; Diameter 219mm/8.62in; Height: 1145mm/45.08in; Wall Thickness: 2.0mm/0.079in; Bag Specifications: 180*810mm/7.09*31.89in; Filter Area: 0.46㎡; Reference flow: 30-40t/h; Import/Export: DN50 inner wire; Pressure: 1.0 Mpa; Net Weight: 20kg/44.09lb.
BulletPoint2 : ✅【High Quality Structure】The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter cylinder cover, a quick opening mechanism, and a stainless steel filter bag reinforcement net. Movable foot design, height can be adjusted around 1145mm.
BulletPoint3 : ✅【Filter Principle】The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket. The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag.
BulletPoint4 : ✅【High Performance】Bag filter has many advantages such as reasonable structure, good sealing, strong circulation ability, and easy operation. In particular, the probability of side leakage of the filter bag is small, the filtering accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost.
BulletPoint5 : ✅【Easy to Maintain】The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.
Color : Black
ExternallyAssignedProductIdentifier : 7707654174103
ExternallyAssignedProductIdentifier1 : 0755824159792
ExternallyAssignedProductIdentifier2 : 755824159792
FitType : Universal Fit
IncludedComponents : Filter*1

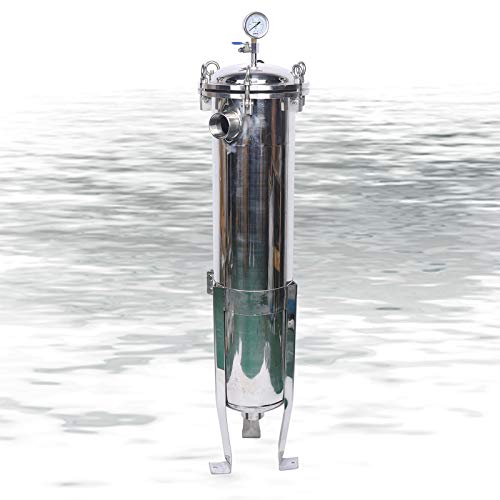

ItemName : RABEEXP Bag Filter Housing Pressure Filtration Device 304 Stainless Steel in/Out Bag Filter Housing, Multi-Purpose Filtering Equipment with Pressure Gauge High Pressure Filtration Machine (#2)
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-process-filter-housings
Manufacturer : RABEEXP
Material : Fiberglass
ModelName : as described
NumberOfItems : 1
PartNumber : 755824159785
ProductDescription :

Introduction to filters

Bag filter is a kind of multi-purpose filtering equipment with novel structure, small size, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability.

Bag filter is a new type of filtration system. Inside the bag filter, the filter bag is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. Impurities are intercepted in the filter bag and can be used continuously after replacing the filter bag.

Product parameters:

Name: #2 Bag Filter

Material: 304 stainless steel

Specification: Diameter 219mm/8.62in

Height: 1145mm/45.08in

Wall Thickness: 2.0mm/0.079in

Bag Specifications: 180*810mm/7.09*31.89in

Filter Area: 0.46㎡

Reference flow: 30-40t/h

Import/Export: DN50 inner wire

Pressure: 1.0 Mpa

Net Weight: 20kg/44.09lb

Package weight: 22kg

Packing list:

Filter*1

ProductGrade : Replacement Part
ProductSiteLaunchDate : 2024-03-26T07:03:32.430Z
Size : #2
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40000000
