SpecificationBrand : Purptarol
BulletPoint1 : 【Efficient Sealing】: This stainless steel bag filter operation efficiency is high, the filtrate from the inlet pipe flow into the filter bag filter shell side.The filter bag is installed in the reinforced net basket to facilitate liquid penetration. When the filter bag reaches the required fineness grade, the qualified filtrate can be obtained, and the impurity particles are intercepted by the filter bag
BulletPoint2 : 【Simple Operation and Energy saving】: Filter bag side leakage probability is small, can correctly ensure filtration accuracy, filter bag replacement fast, reduce operating costs
BulletPoint3 : 【Main Material】: 304 stainless steel, specification: diameter 219mm, height: 1145mm wall thickness: 2.0mm, bag specification: 180*810mm, filter area: 0.46㎡, reference flow: 30-40t/h, import and export: DN50 internal line, pressure: 1.0pa
BulletPoint4 : 【Easy to Clean】:Water filter purification equipment has the inner and outer surfaces are solved by mechanical sandblasting and polishing to make them smooth and easy to clean
BulletPoint5 : 【Wide Application】This industrial filter is very suitable for use in agricultural irrigation, electricity, paper making, plastic industries, and cooling water treatment plants. It is used for rapid treatment of various types of tap water, circulating water, sewage, or fuel, achieving solid-liquid separation and improving work efficiency
Color : Blue
ExternallyAssignedProductIdentifier : 4640373334836
ExternallyAssignedProductIdentifier1 : 0747495784755
ExternallyAssignedProductIdentifier2 : 747495784755
ExternalTestingCertification : no
IncludedComponents : Filter*1

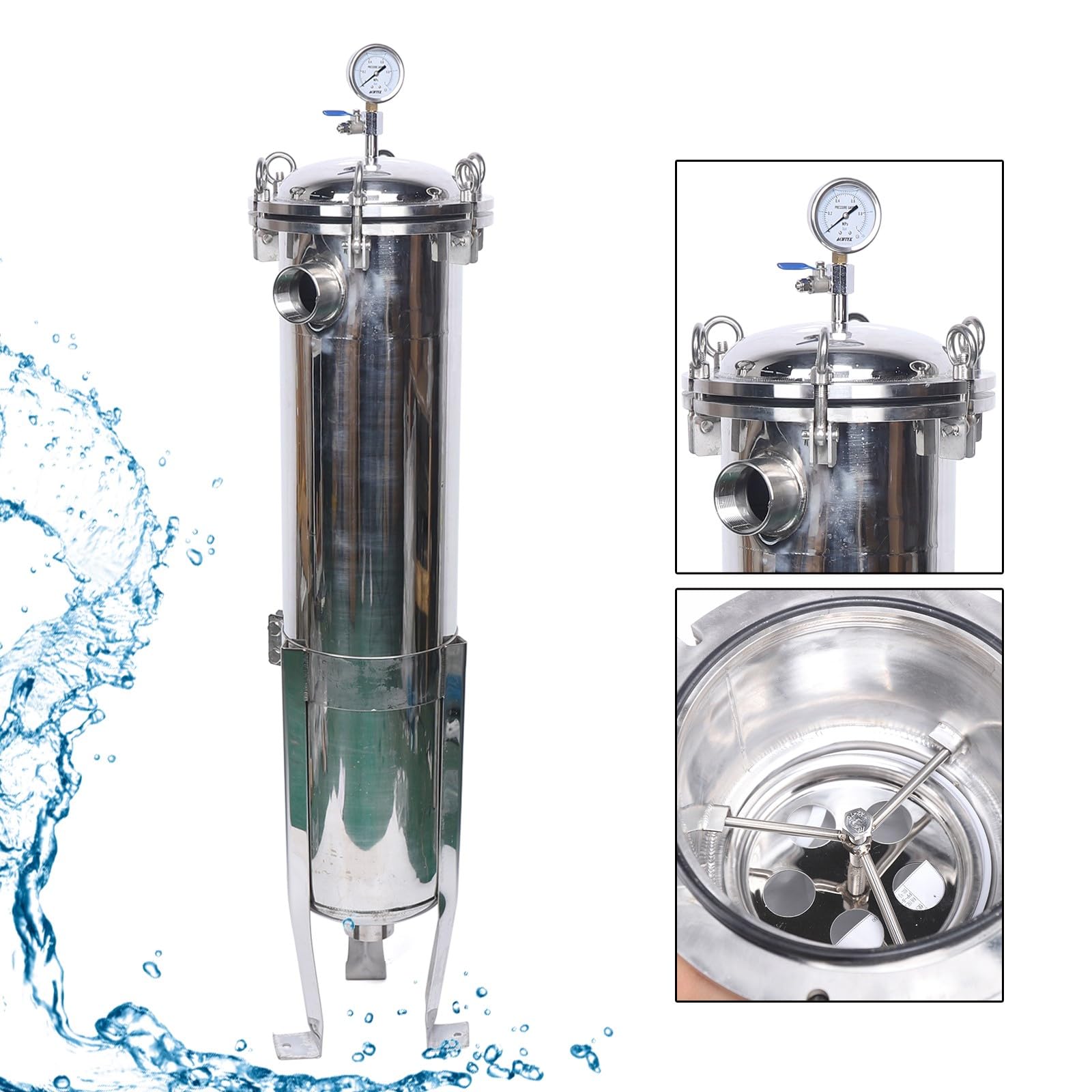

ItemName : Purptarol 304 Stainless Steel Bag Filter, Water Filter Purification Equipment,1.0pa Bag Industrial Process Filter Housings in/Out High Pressure Tool
ItemTypeKeyword : industrial-process-filter-housings
Manufacturer : SJinGfim
Material : Polypropylene (PP)
ModelName : 150067-75-A
ModelNumber : 1.0mpa High Pressure Filtration System
NumberOfItems : 1
PartNumber : kgk1125
ProductDescription :
To Filter principle
The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter cylinder cover, a quick opening mechanism, and a stainless steel filter bag reinforcement net. The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket. The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.
Bag filter has many advantages such as reasonable structure, good sealing, strong circulation ability, and easy operation. In particular, the probability of side leakage of the filter bag is small, the filtering accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost. The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean.
Product parameters:
Package weight: 22kg
Material: 304 stainless steel
Specification: Diameter 219mm
Height: 1145mm
Wall thickness: 2.0mm
Bag specifications: 180*810mm
Filter area: 0.46㎡
Reference flow: 30-40t/h
Import/Export: DN50 inner wire
Pressure: 1.0pa
packing list:
Filter*1
ProductSiteLaunchDate : 2025-04-18T07:36:47.840Z
Size : 0.75
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40000000
