Specification
Brand : AVCRAY
BulletPoint : F8S Automatic Super 8 Film Splicer
BulletPoint1 : 【Main parameters】Coating film thickness range: 0-3500μm, Coating film width: 100mm, Accuracy: ±2μm
BulletPoint2 : 【Material】The whole frame of the adjustable film applicator is made of aluminum alloy,with strong structure. The scraper is made of high-quality stainless steel, which is wear-resistant, rustproof, easy to disassemble and easy to clean.
BulletPoint3 : 【Magnetic attraction device】The adjustable film applicator uses the principle of magnetic adsorption to adsorb the scraper, control the gap size, and magnetic adsorption, making the film more precise.
BulletPoint4 : 【Adjustable coating film thickness】The coating film thickness range is 0-3500μm. By adjusting the two micrometers above the preparation device, adjust the scraper, and the magnetic attraction can control the gap size, that is, the required coating film thickness.
BulletPoint5 : 【Application】The adjustable film applicator is widely used in printing, coating, ink, cosmetics, adhesives and other scientific research industries.
Capacity : 30 ounces
CareInstructions : Hand Wash Only
Color : Colorful
IncludedComponents : Film Coating Applicator

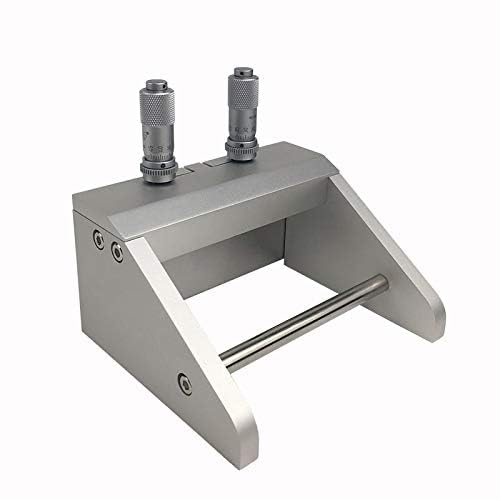

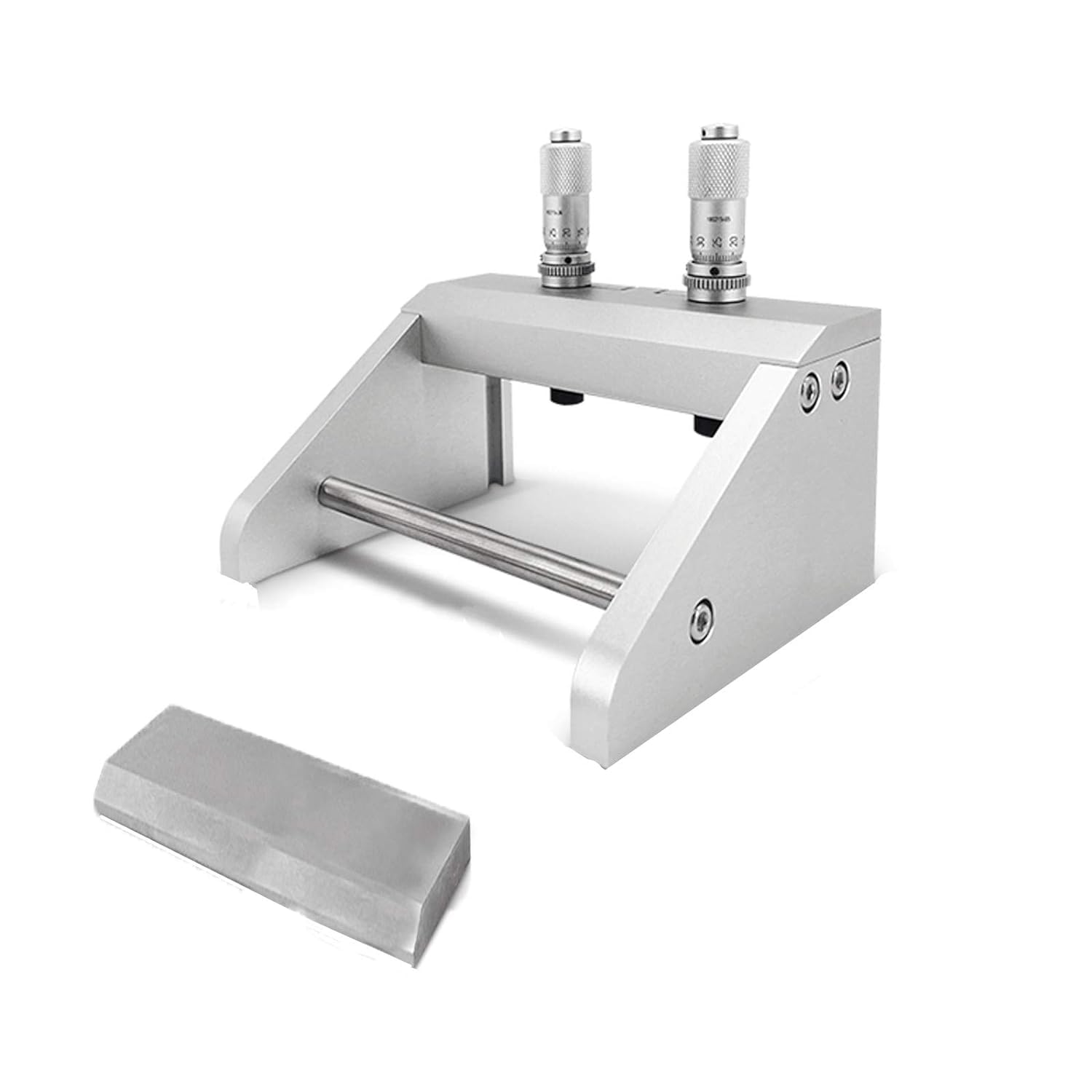

ItemName : AVCRAY Wet Film Preparation Device Adjustable Film Coating Applicator Film Coater with Micrometer Wet Film Applicator Coating Device (100mm)
ItemPackageDimensions_Height : 8.5 inches
ItemPackageDimensions_Length : 4.24 inches
ItemPackageDimensions_Width : 4.25 inches
ItemTypeKeyword : film-processing-supplies
Manufacturer : Avcray
ManufacturerMinimumAge : 180
Material : Acrylic
ModelName : tools
ModelNumber : AVC40102081
NumberOfItems : 1
OccasionType1 : Birthday
OccasionType2 : Christmas
OccasionType3 : New Year
OperationMode : Automatic
PartNumber : 03L4613J49HCRG7
PowerSourceType : hand_powered
ProductDescription :

Features:
1.The adjustable film applicator has a compact design, a solid structure, simple operation, uniform coating, high precision and small in error.
2.The adjustable film applicator can be operated manually or used with an automatic wet film preparation device.
3. The adjustable film applicator is suitable for research projects that accurately evaluate the subtle differences in film thickness.
4.The adjustable film applicator adopts high-precision micrometer to adjust the gap of scraper in units of 10 μm, with high precision and small error.

Specification:
Coating width: 100mm/150mm/200mm/250mm
Coating film thickness range: 0-3500μm
Accuracy: ± 2μm
Weight:0.6kg

Instructions:
1.Before use, the instrument is generally adjusted to the "0" position. If not,the instrument should be adjusted to "0" on a parallel surface.
2.When adjusting "0", rotate the two micrometers so that the bottom of the scraper and the two side plates are on the same plane.At this time, the reading of the micrometer should be the same, and the "0" scale of the micrometer should be aligned with the scale line at the lower end.
3.Rotate the micrometer to adjust the scraper to the required gap size, that is, the required coating thickness.Then hold both sides of the board with your hands and scrape on the sample board to prepare the required coating.

Maintenance:
1. Before each work, use a soft cloth dipped in alcohol to carefully wipe the applicator head and body to keep them clean.
2. Regularly inspect screws, nuts, pins and other fasteners in various parts to prevent loosening and eliminate product quality accidents.
3. Do not bump into high-precision parts such as the coating head and differentiator, and handle them with care.
4. When adjusting the differentiator, the left and right sides should be adjusted symmetrically and evenly.

ProductSiteLaunchDate : 2024-04-25T09:12:59.662Z
Size : 100mm
Style : Classic
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
