Specification
Brand : Wekuant
BulletPoint1 : Extend 1 port bi-directional Balanced Audio of 16-bit digitally encoded broadcast quality Audio over 1 single-mode(SM) or multi-mode (MM) optical fiber cable. These unit is single direction - Audio signal is transmitted in the direction from T (Transmitter) to R (Receiver).
BulletPoint2 : The extender can work on both singlemode and multimode. Long transmission distance: SM up to 12.4 miles (20Km), MM 0.31 miles(500meters). Use SC UPC / PC connectors with SM and MM fiber optic cables.
BulletPoint3 : Crystal clear sound, No Loss, No Delay.Pure & Clean fiber optic audio signal transmission, 16-bit digitally encoded broadcast quality. LEDs for power supply and optical fiber link status indication can monitor the operating status of the system.
BulletPoint4 : Typically used in applications for Staging, Theaters, Stadiums, Parks, Broadcast, studio audio and professional AV applications, etc., and are available for stand-alone and desktop type, or wall mounted, installations.
BulletPoint5 : No need to set up, Easy to use.
BulletPoint6 : Does Not Contain: Alkaline / Nickel / NIMH or Lithium Ion Batteries.
BulletPoint7 : The image shown here is indicative ONLY. If there are any inconsistencies between the image and the actual product, the actual product WILL govern.
Color : Black
CompatibleDevices : DVD Player
CompatibleDevices1 : Monitor
CompatibleDevices2 : PC
ConnectorGender : Male-to-Male
ConnectorGender1 : Male to Male LC UPC Fiber Optic Jumper/Patch Cable.
ConnectorGender2 : Connector 1: Duplex LC, UPC Polish, 1.25mm, small form factor, ceramic ferrule connector.
ConnectorGender3 : Connector 2: Duplex LC, UPC Polish, 1.25mm, small form factor, ceramic ferrule connector.
ConnectorType : RCA
ConnectorType1 : Optical
ConnectorType2 : XLR
CurrentRating : 5 amps
DataTransferRate : 100 gigabits_per_second
ExternallyAssignedProductIdentifier : 9466457344875
ExternallyAssignedProductIdentifier1 : 0723496828605
ExternallyAssignedProductIdentifier2 : 723496828605
FinishType : Crystal
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

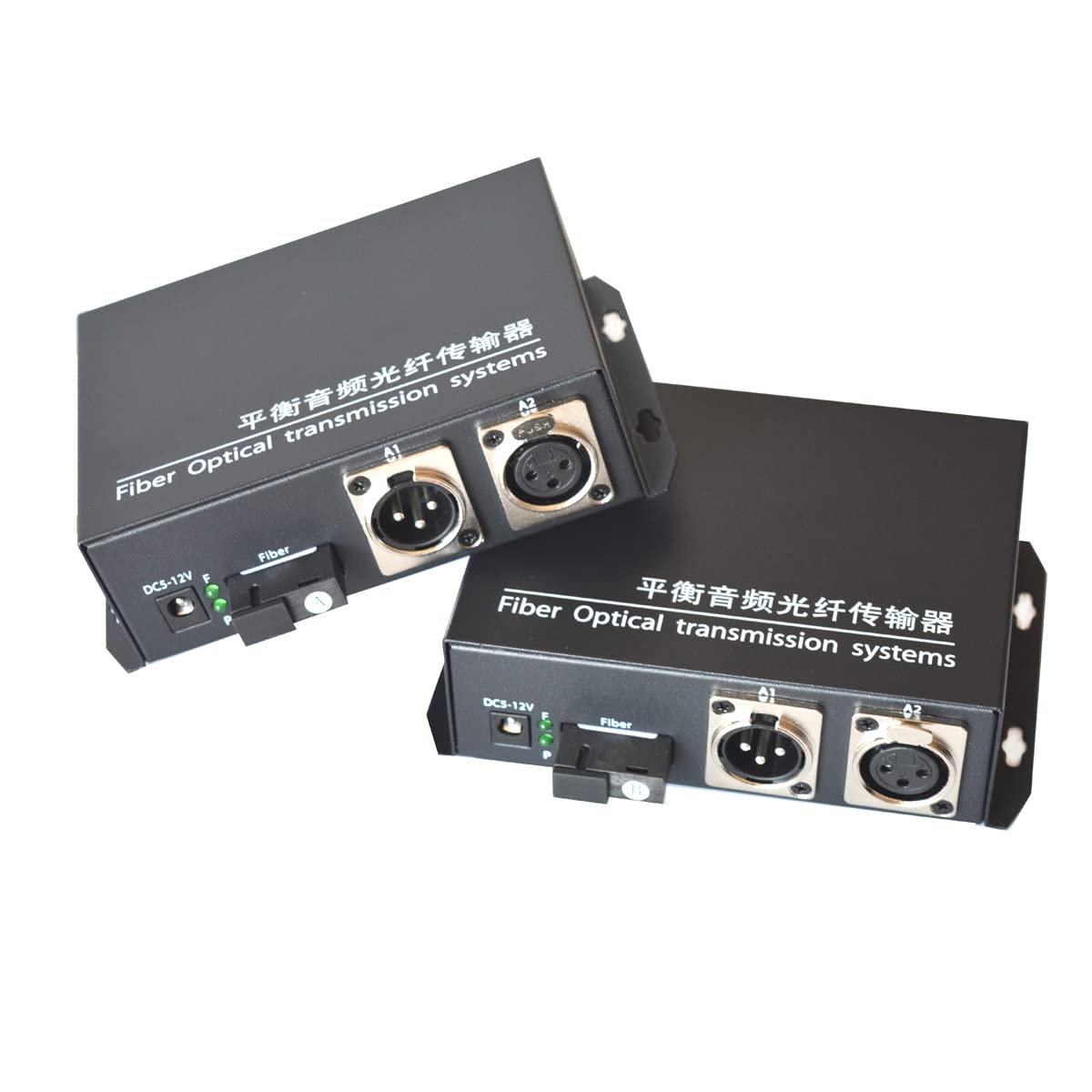

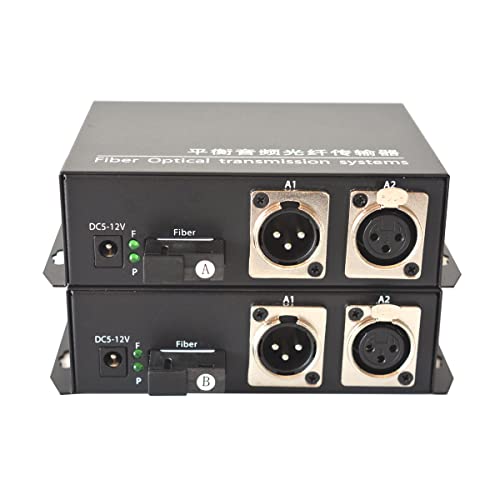

ItemName : Wekuant 1x BIDI 3Pin XLR Balanced Audio Over Fiber Optic Extenders | SC Fiber Media converters, Single Mode 20Km(12.4mi) and Multimode 500m (0.31Mi) | Broadcast Quality | 1 TX and 1 RX Kit
ItemPackageDimensions_Height : 3 inches
ItemPackageDimensions_Length : 2 inches
ItemPackageDimensions_Width : 2 inches
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : fiber-optic-audio-cables
Manufacturer : Wekuant
ModelNumber : OMNI081921044
NumberOfItems : 1
NumberOfPorts : 1
PartNumber : OMNI081921044
ProductDescription : TIP: This model can be compatible with multimode fiber up to 500m, it must require your multimode fiber quality is in good condition, don't have large loss and don't use longer beyond 500m, as regular multimode fiber have large loss which will be caused the transmission distance shorter. Larger loss, shorter transmission distance.
We suggest you using single-mode fiber instead of multimode fiber, As single-mode have tiny loss, which can be transmission longer up to 20Km. if multimode is mandatory for you,please try to decrease your fiber loss, minimize your fiber loss as much as possible.

Specifications:
Fiber Optic Port:
Wavelength: 1310nm/1550nm
Fiber: single fiber multimode (MM) or single mode (SM)
Transmission range: 20km for SM, 500m for MM
Optical interface: SC simplex (only 1 fiber needed)
Optical fiber type: 9/125u single mode, 50/125u or 62.5/125u multimode
Output power: -14~ -8dBm
Rx sensitivity: -30dBm

XLR Audio Ports:
Number of Channels: 1 bi-directional
Input Connector: XLR (Female)
Output Connector: XLR (Male)
Input / Output Impedance: 10K Ohm
Max input/output voltage: 3.0Vp-p
Frequency Response: 10Hz～44.1KHz @±3dB
SNR: > 70dB

General Spec:
Support Voltage: AC100-240V, DC5V2A, US standard Power Plug (default US, EU/UK/AU standard is optional)
Power Consumption: ≤8W
Working temperature: -20°C ~ +75°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
Installation: stand-alone
Dimension:140mm(L)×100mm(H)×30mm(W)

LED working indicator:
P: Power
ON: power on;
OFF: power off

F: Fiber optic
ON: Optical port works normally
OFF: Optical port works abnormally

Package content:
1x Balanced Audio Transmitter
1x Balanced Audio Receiver
2x Power supply adapter
1x Free 3M SC-SC SM fiber patch cord
1x User Manual.

ProductSiteLaunchDate : 2022-01-11T17:02:05.036Z
RecommendedUsesForProduct : Security
Size : 10 feet
SpecificationMet : Oem
Style : 1 Port (BIDI)
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43201500
