Specification
Brand : Mavaol

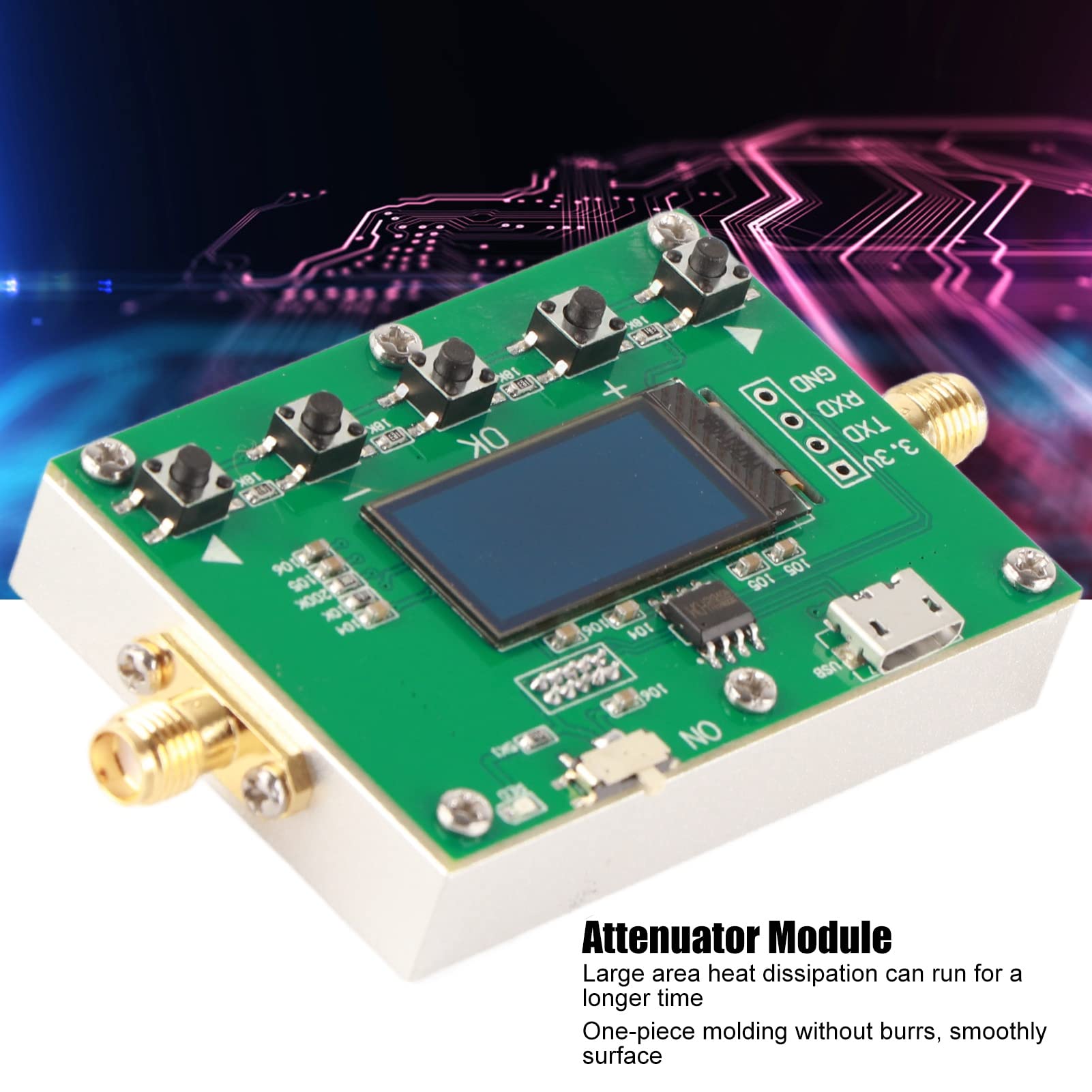

BulletPoint1 : [HIGH-PERFORMANCE PCB DESIGN] - The 1.6mm thick double-sided board with 1.5 oz copper thickness ensures excellent current passing performance.
BulletPoint2 : [EFFECTIVE HEAT DISSIPATION] - Featuring a large heat dissipation area, this attenuator module can run for extended periods without overheating.
BulletPoint3 : [SEAMLESS INTEGRATED STRUCTURE] - With no burrs and a smooth surface, this attenuator offers easy installation and a professional look.
BulletPoint4 : [CONVENIENT AND PORTABLE] - Small in size and easy to carry, this digital attenuator is for on-the-go testing and experiments.
BulletPoint5 : [PRECISE ATTENUATION CONTROL] - With a working frequency of LF-6GHz and an attenuation range of 0-31.75dB, this attenuator ensures accurate adjustment.
ExternallyAssignedProductIdentifier1 : 0027521639236
ExternallyAssignedProductIdentifier2 : 027521639236
ItemName : Digital Programmable Attenuator Module Precision PCB Electronic Component 6G for Lab Testing
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemTypeKeyword : fiber-optic-attenuators
Manufacturer : Mavaol
ModelNumber : Mavaol7f9oq40evg
NumberOfItems : 1
PartNumber : Mavaol7f9oq40evg
ProductDescription : [HIGH-PERFORMANCE PCB DESIGN] - The 1.6mm thick double-sided board with 1.5 oz copper thickness ensures excellent current passing performance.
[EFFECTIVE HEAT DISSIPATION] - Featuring a large heat dissipation area, this attenuator module can run for extended periods without overheating.
[SEAMLESS INTEGRATED STRUCTURE] - With no burrs and a smooth surface, this attenuator offers easy installation and a professional look.
[CONVENIENT AND PORTABLE] - Small in size and easy to carry, this digital attenuator is for on-the-go testing and experiments.
[PRECISE ATTENUATION CONTROL] - With a working frequency of LF-6GHz and an attenuation range of 0-31.75dB, this attenuator ensures accurate adjustment.

Spec:
Item Type: Digital Programmable Attenuator
Material; PCB
Working Frequency: LF-6GHz
Attenuation Adjustment Range: 0-31.75dB
Attenuation Step: 0.25 (dB)
Insertion Loss: 1.5dB (the high-frequency end insertion loss will be larger)
Standing Waving Ratio: 1.4
Attenuation Accuracy: ±0.25dB Maximum
Rated Power: 1W
Connector Form: SMA (female, male screw and female hole)
Temperature Range: -10℃～+50℃(operating), -40℃～+70℃(not running)
Input and Output Impedance: 50Ω


Package List：

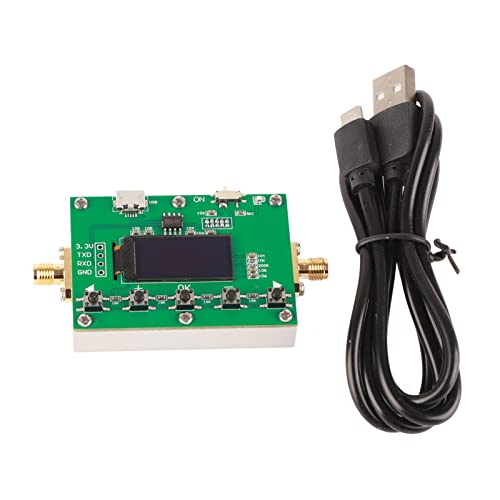

1 x Digital Programmable Attenuator
1 x USB Cable

Note：




ProductSiteLaunchDate : 2024-11-25T06:17:16.138Z
UnspscCode : 43000000
