Specification
Brand : JAOTONGBO
BulletPoint1 : - High-quality carrier-grade optical fiber splitter
BulletPoint2 : - PLC type with plug-in SC interface
BulletPoint3 : - Supports 1x8 channels and 1x16 channels
BulletPoint4 : - Compatible with various fiber optic systems
BulletPoint5 : - Easy to install and use
Color : One Color
CompatibleDevices : 安全摄像头
ConnectorType : Optical
ExternallyAssignedProductIdentifier : 4336885823967
FrequencyBandClass : single_band
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

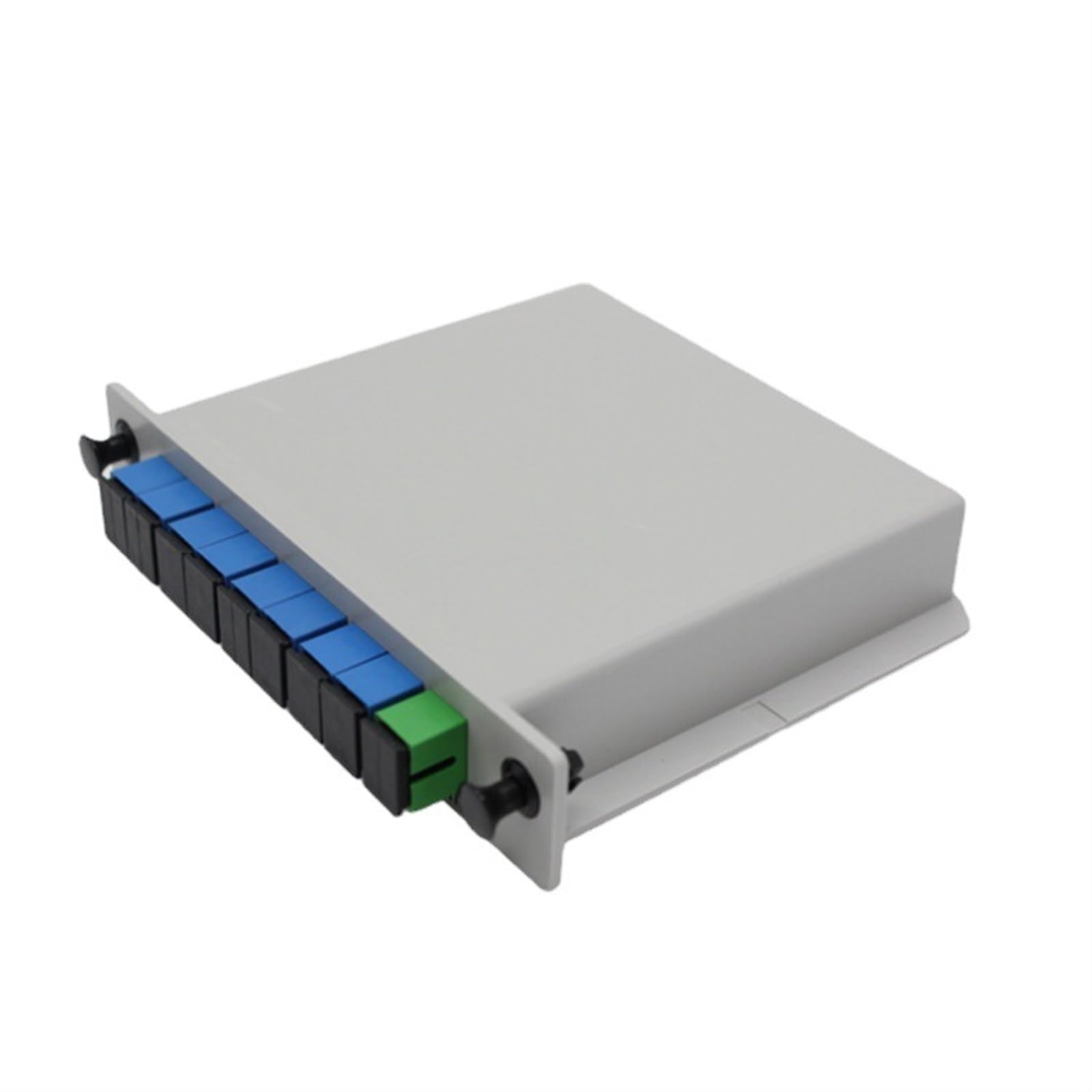

ItemName : 10 Pcs Carrier-grade optical fiber splitter PLC type/plug-in SC interface 1 point 8 channels, 1 point 8 channels splitter, SC interface 1 point 16 channels, 1 point 16 channels splitter(1-8)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : fc-fiber-optic-connectors
Manufacturer : JAOTONGBO
Material : fiber
Material1 : quartz
Material2 : fiber
ModelName : JAOTONGBO
ModelNumber : JAOTONGBO
NumberOfItems : 1
PartNumber : JAOTONGBO
ProductDescription : Planar waveguide optical splitter (PLC Splitter)
It is an integrated waveguide optical power distribution device based on a quartz substrate. It has the characteristics of small size, wide operating wavelength range, high reliability, and good spectral uniformity. It is especially suitable for connecting the central office and terminal equipment in passive optical networks (EPON, BPON, GPON, etc.) and realizing the shunt of optical signals.
The splitter evenly inputs the optical signal from a single or dual inlet to multiple outlets, or works in reverse to import multiple optical signals into a single or dual optical fiber.
The production process PLC splitter is made by semiconductor technology (lithography, corrosion, development and other technologies).The optical waveguide array is located on the upper surface of the chip, and the shunt function is integrated on the chip, that is, it is implemented on one chip.
1 equal division; then, the input terminal and the output terminal of the multi-channel optical fiber array are coupled at both ends of the chip and packaged.
Compared with the melt-pull cone splitter, the advantages of PLC splitter are：
(1) The loss is not sensitive to the wavelength of light, which can meet the transmission needs of different wavelengths.
(2) The spectroscopy is uniform, and the signal can be evenly distributed to the user.
(3) Compact structure and small size, it can be installed directly in various existing transfer boxes without leaving a lot of installation space.
(4) There are many shunt channels for a single device, which can be more than 32 channels.
(5) The cost of multiple channels is low, and the more branches, the more obvious the cost advantage.
Performance parameter table 1X8, 1X16 fiber type
Working wavelength (nm) 1260～1650
Working temperature (℃) -40~+85
Storage temperature (℃) -40~+85
Features
1.Wide operating wavelength
2.Low insertion loss
3 Small
ProductSiteLaunchDate : 2024-08-03T09:18:42.024Z
Size : 1-8
UnitCount : 1
UnspscCode : 26121600
WarrantyDescription : No warranty.
WirelessCommStandard : 802_11_AC
