Specification
Brand : Dayton
BulletPoint1 : Capacitor included
BulletPoint2 : Thermal protection = none
BulletPoint3 : Optional mounting bracket available Model 2A754
BulletPoint4 : 1/8 HP
BulletPoint5 : 230 Volts
Color : Brown
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 7903687219341
ExternallyAssignedProductIdentifier1 : 663001410584
ExternallyAssignedProductIdentifier2 : 0663001410584
ExternallyAssignedProductIdentifier3 : 00663001410584
Horsepower : 0.125 horsepower
IncludedComponents : Fasco D934 5.6-Inch Condenser Fan Motor, 1/3 HP, 208-230 Volts, 825 RPM, 1 Speed, 1.9 Amps, Totally Enclosed, Reversible Rotation, Sleeve Bearing

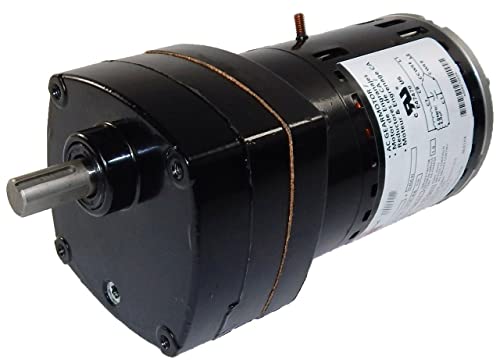

ItemName : Dayton 6Z075 AC Gear Motor, 4.5 RPM, Open, 115V
ItemPackageDimensions_Height : 12.5 inches
ItemPackageDimensions_Length : 5.7 inches
ItemPackageDimensions_Width : 5.5 inches
ItemPackageQuantity : 1
ItemTypeKeyword : electric-fan-motors
Manufacturer : Dayton
Material : Aluminum
ModelName : gear
ModelNumber : 6Z075
NationalStockNumber : 3010-01-153-9070
NumberOfItems : 1
PartNumber : 6Z075
ProductDescription :

AC Gearmotor, Gearmotor Voltage 115VAC, 1 Gearmotor Phase, Max. Torque 100.0 in.-lb., Single Gearmotor Shaft Type, Gearmotor Shaft Orientation Parallel, Gearmotor Rotation CW/CCW, Nameplate RPM 4.5, Open Gearmotor Enclosure, All Angle Gearmotor Mounting Position, 60/50 Hz, Overhung Load 90 lb., Input HP 1/80, Gear Ratio 361:1, Full Load Amps 0.3, None Thermal Protection, Motor Type PSC, Die Cast Aluminum Housing

Specification:

• Shaft Dia. (Dimension U): 1/2"
• Item: AC Gearmotor
• Thermal Protection: None
• Bearings: Heavy Duty Needle on Case, Ball on Motor
• Dimension L: 3.46"
• Input HP: 1/80
• Capacitor Required: 2MDV3
• Dimension X: 2.8"
• Rotation: Reversible
• Seals: Spring Loaded Lip Type on Input and Output Shaft
• Dimension C: 8.24"
• Phase: 1
• Motor Type: PSC
• Mounting: All Position
• Max. Torque: 100.0 in.-lb.
• Nameplate RPM: 4.5
• Enclosure: Open
• Gear Case Material: Die Cast Aluminum
• Gear Material: Steel or Heat Treated Powdered Metal
• Length Less Shaft: 7-1/4"
• Housing: Die Cast Aluminum
• Shaft Orientation: Parallel
• RPM Range: 0 to 15
• Overhung Load: 90 lb.
• Gears: 1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
• Gear Type: Helical First Stage/Spur
• Lubrication: Permanent Heavy Duty Gear Oil
• Full Load Amps: 0.3
• Voltage: 115
• Gear Ratio: 361:1
• Hz: 60/50
• Max. Ambient Temp.: 40 Degrees C
• Shaft Length (Dimension V): 1"
• Brake: Adaptable to 5X400

ProductSiteLaunchDate : 2010-09-09T13:06:49.864Z
Speed : 4.5 rpm
StreetDate : 2018-03-21T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26101200
Voltage : 115 volts
