Specification
Brand : HUSETOO
BulletPoint : Price For: Each
BulletPoint1 : ✅Small dc motor : it is a 12v motor power wheels motor upgrade solution, dc 12v -24v/10000-20000 rpm high speed rpm, torque 3-5kg, starting current 4-7a
BulletPoint2 : ✅775 dc motor : the size of the brushless dc motor is adjustable, and it supports dc motor control cw/ccw adjustment, built-in cooling fan, providing speed guarantee for high-intensity dc motors work
BulletPoint3 : ✅Long service life: has the characteristics of high speed, small size, stable performance, etc. metal gears are used, wear-resistan；it is a substitute product for cnc spindle and motores para portones electricos
BulletPoint4 : ✅D-type rotary shaft: 12 volt motor provide better anti-skid effect for installing drive belts, synchronous wheels and other motor sets，775 motor power wheels motor using pure copper wire winding, low loss
BulletPoint5 : ✅Wide range of applications: fruit juice machine, paper shredder, vacuum cleaner, diy small drill table, cutting machine, belt machine, lathe, milling machine, electric drill, hand drill polishing machine, buddha bead machine, lawn mower, electric grinder, engraving machine, etc.
Color : Gold
ConnectivityTechnology : Aux
EducationalObjective : Engineering Skills
ExternallyAssignedProductIdentifier : 7621721183716
ExternallyAssignedProductIdentifier1 : 735483942416
ExternallyAssignedProductIdentifier2 : 0735483942416
GpsrSafetyAttestation : 1
Horsepower : 80 watts
IncludedComponents : 775 dc motor;Motor bracket;Fixing screw;M4 screw spacers+;insert spring
ItemName : 775 DC Motor 12v DC Motor High Torque DC Motor Max 20000 RPM Dual Ball Bearings Quiet Power Wheels Motor Upgrade DC Motor（with Bracket） (D Shaft Motors-2Pack)
ItemPackageDimensions_Height : 11.0998 centimeters
ItemPackageDimensions_Length : 5.8928 centimeters
ItemPackageDimensions_Width : 10.2108 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electric-fan-motors
Manufacturer : HUSETOO
Material : Iron
ModelName : 775 motor
ModelNumber : a16101100ux0183
NumberOfItems : 1
NumberOfPieces : 60
PartNumber : 775 dc
ProductDescription : Description

Purchase tips:

Round shaft 775 motor: Generally used for such as mounting collets, conversion sleeves, etc., concentricity effect is better

D-axis 775 motor: generally used for installing transmission belts, synchronous wheels, etc., with better anti-slip and handover results

Features
-The following are the measured parameters of the  DC motors for reference:

-Rated voltage: 12V ~ 24V

-Rated current: 4A, 10A, 12A (recommended starting current 10A)

-Rated speed: about 12V/24V----10000RPM/20000RPM

-brushless DC motor step height: 4.5mm

-Motor step diameter: 17.5mm

-Shaft length: 16mm (shaft length above step level)

-Shaft diameter: 5mm shaft

-Motor diameter: 42mm

-Motor length: 66.5mm

-Step height of motor tail: about 7mm

-Length of shaft out of motor tail: about 4.5mm

-Mounting hole pitch: about 29mm

-Mounting hole diameter: M4 screw

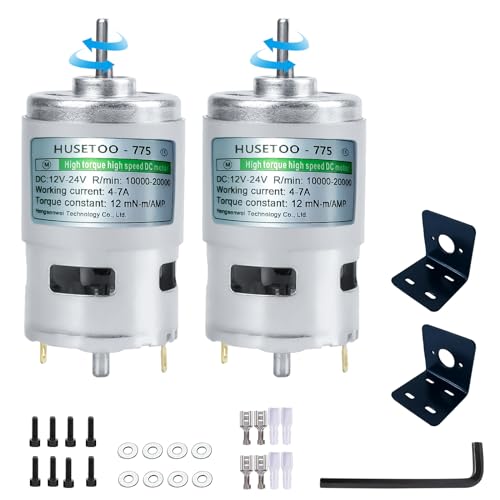

Packing list

2x 775 dc motor （D Shaft Motors）

2x Motor bracket

8x Fixing screw

8x M4 screw spacers+

4x insert spring
4x insert spring sheath

1x Inner hex wrench

Notes

Manual measuring, please allow 1 ~ 3mm error,thank you.



ProductSiteLaunchDate : 2023-02-19T07:31:18.210Z
Size : 6mmx9mmx12mm
Speed : 20000 rpm
StreetDate : 2017-03-12T00:00:01Z
Style : D Shaft Motors-2Pack
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupportedStandards : MP3
UnitCount : 1
UnspscCode : 26100000
Voltage : 12 volts
