Specification
Brand : HNZXIB
BulletPoint : Includes 2 fume extractors
BulletPoint1 : Closed Column Pressure Extractor (Comes with 1 yr. Limited warranty, excludes gaskets and screens)
BulletPoint2 : Dual function of open and closed extraction
BulletPoint3 : The closed glass column material, easy to clean
BulletPoint4 : Tubes contain 90g (3.2oz) of dry material (approximately)
BulletPoint5 : Manometer to measure pressure. Equipped with a pressure gauge, which can monitor the pressure in the machine at any time to improve production efficiency
ExternallyAssignedProductIdentifier : 3643931418758
ExternallyAssignedProductIdentifier1 : 0606267297568
ExternallyAssignedProductIdentifier2 : 606267297568

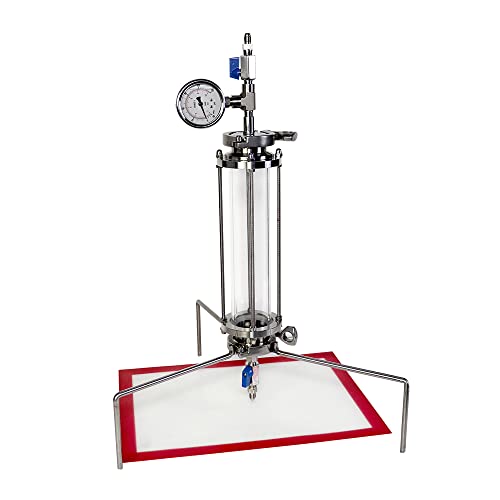

ItemName : HNZXIB 2'' x 11'' Closed Glass Column Pressurized Extractor, Dual Function of Open and Closed Extraction
ItemPackageDimensions_Height : 53.848 centimeters
ItemPackageDimensions_Length : 15.748 centimeters
ItemPackageDimensions_Width : 23.114 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : fume-and-smoke-extractors
Manufacturer : HNZXIB
Material : Stainless Steel
NumberOfItems : 1
PartNumber : 90G
ProductDescription : Product description：
Closed-loop extractor is a device used to extract solvent from solid matter. It is widely used in industrial plant concentrates. In the whole process, there are several parts used to extract the solvent. The solvent can be used and recycled in a closed-loop extractor.
This system allows the user to build up solvent pressure by closing the valve, pulling a vacuum, and filling the extractor, Extractor will fill about 85% with solvent before the internal pressure will equal the pressure of the can propellant.
Solvent Soak is expected to be between 30-90 min, but this all depends on the material, starting with frozen cans of solvent is recommended.
Parameters

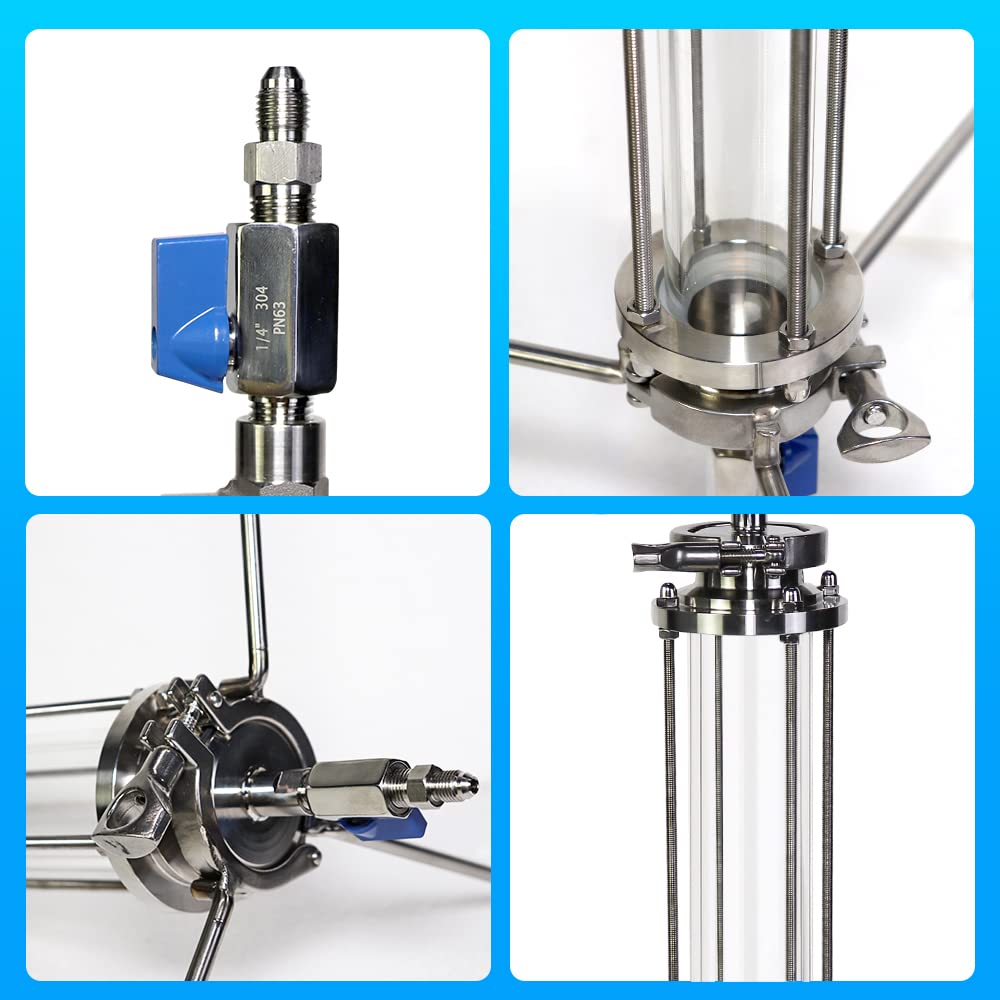

1 x Clamp Ferrule
1x2" Tri-Clamp Quadpod
2x2 "1/4" FNPT End Caps
1 x 2 "Single Pin Clamp
1x2"tri-clamp display gasket Viton 100 Mesh (150 Micron) Gasket
1 x tri-clamp 2 ”gasket
2 x 1/4" high-pressure ball valve,FNPT SS304.
2 x JIC-NPT304 stainless steel adapter. 1/4 "size
11.8" x15.75 " (300mm x400mm)Platinum Cured Silicone Non-Stick Pad
1x2 ”tri-clamp sight glass with special gasket on flanges
1 x 0-30 psi industrial grade compound gauge1/4” ss304 stainless steel
1x 1/4" FxFxM Street Tee
Operating Temperature Range: -30-200F
Special Design: We Can Produce According To Your Drawings
Tips:
We can change components according to your requirement. Please use the product accompanied by professionals, thank you

ProductSiteLaunchDate : 2021-11-19T18:08:06.577Z
Style : 2
SupplierDeclaredDgHzRegulation : not_applicable
