Specification
Brand : Ymiko
BulletPoint1 : 【Optimal for Precision Machining】 - Suitable for high precision machine tool processing, our Straight Shank ER11 boasts an internally ground hole treatment that not only increases lifespan but significantly outperforms ordinary tool holders.
BulletPoint2 : 【Superior Material】 - Expertly crafted from Collet Chuck Holder, this collet chuck holder effectively suppresses vibration, ensuring high concentricity and stable processing for an enhanced performance.
BulletPoint3 : 【Enduring Fatigue 】 - Engineered using a carburizing and quenching process, the collet chuck holder offers enhanced hardness, superior fatigue and durability at the interface for continued use.
BulletPoint4 : 【Versatile Clamping Range】 - Our tool holder offers incredible flexibility with a clamping range of 1-7mm. Coupled with a stable structure and an extended service life, it delivers exceptional performance for all your processing needs.
BulletPoint5 : 【High Concentricity】 - Take advantage of our ER11 Spring Collet that is intricately designed with the inside and outside integrally formed. Carefully controlled processing ensures a more and superior concentricity.
ExternallyAssignedProductIdentifier1 : 0670095606373
ExternallyAssignedProductIdentifier2 : 670095606373
IncludedComponents : No.

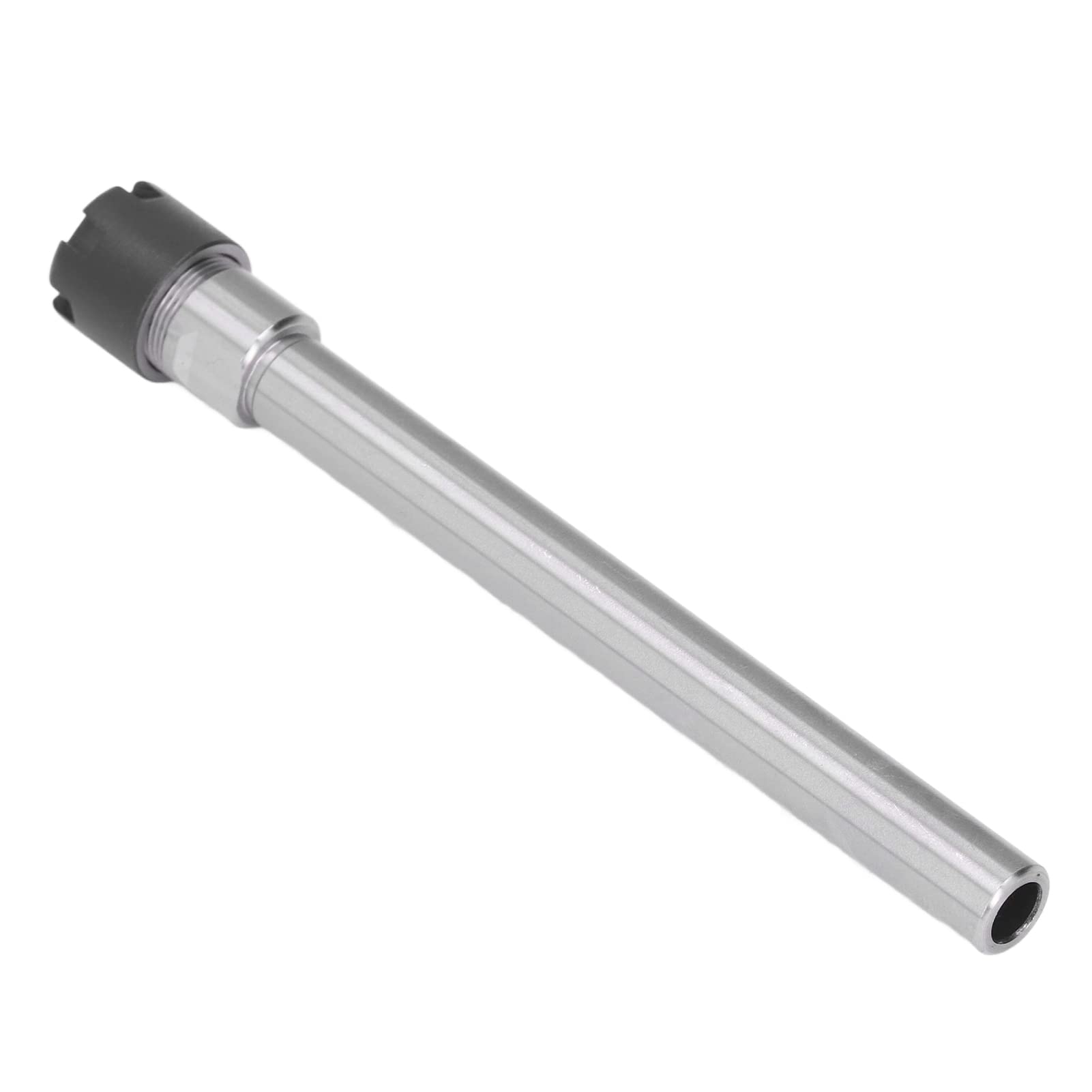

ItemName : Collet Chuck Holder, Er11 Spring Collet Handle Milling Tool Cemented Carbide ZDZCYS22DL 10Pcs 3.175mm Straight Shank Er11 2-Flute Straight Milling Cutter
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 4 centimeters
ItemTypeKeyword : end-mill-holders
Manufacturer : Ymiko
ModelName : Ymikogtukfh24cr-11
ModelNumber : Ymikogtukfh24cr-11
NumberOfItems : 1
PartNumber : Ymikogtukfh24cr-11
PowerSourceType : AC/DC
ProductDescription : 1. 40CR MATERIAL: Made of 40Cr material, effectively suppressing vibration, possess high concentricity, and stable processing
2. HIGH CONCENTRICITY: The inside and outside of the tool holder are integrally formed. Fine control processing bring more and high concentricity
3. FOR MACHINE TOOL PROCESSING: After inner hole ground treatment, suitable for machine tool processing and has a longer life than ordinary tool holders
4. STRONGER FATIGUE : Using carburizing and quenching process, the hardness is higher, the fatigue of the interface is stronger and more
5. 1‑7MM CLAMPING RANGE: The clamping range is from 1‑7mm, come with stable structure, excellent performance and long service life

Specification:
Item Type: Collet Chuck Holder
Product Material: 40Cr + carbon steel
Hardness: 45-46HRC
Head Diameter: Approx. 16mm / 0.63in
Clamping Range: Approx. 1 ~ 7mm / 0.04 ~ 0.28in
Adapter Collet: ER11
Thread Type: M
Tool Handle Diameter: Approx. 10mm / 0.39in

packing list:
1 x Collet Chuck Holder

1 x Wrench

Note:
1. Incorrect assembly may damage the accuracy of the nut and spring.
2. Only the matching collet chuck can be used to assemble the nut.
3. Do not clamp tools that exceed the clamping range.
ProductSiteLaunchDate : 2024-12-19T12:38:51.359Z
Size : MT3-SL25
UnitCount : 1
UnspscCode : 53120000
