Specification
Brand : ToneShaper
BulletPoint1 : Top-quality kit featuring the best parts available for your HH Strat!
BulletPoint2 : Works in any 2-humbucker Strat: Big Apple, Blacktop, Double Fat, Etc.
BulletPoint3 : Humbucker and single-coil tones from a single guitar!
BulletPoint4 : Auto-splits 4-conductor humbuckers to provide single-coil tones
BulletPoint5 : Auto-ranging volume pot drops from 500k to 250k in “Fender” settings, maintains tonal integrity!
Color : Silver
CustomerPackageType : Standard Packaging
ExteriorFinish : Metal plastic
ExternallyAssignedProductIdentifier1 : 673257216274
ExternallyAssignedProductIdentifier2 : 0673257216274
FinishType : Polished
GpsrSafetyAttestation : 1
GuitarBridgeSystem : Adjustable
GuitarPickupConfiguration : S
HandOrientation : Ambidextrous
IncludedComponents : Knob
IncludedComponents1 : Knob
IncludedComponents2 : Screw
ItemDepth : 0.47 inches
ItemDisplayDimensions_Diameter : 11 millimeters
ItemName : ToneShapers Wiring Kit, for Stratocaster HH (Requires 4-Conductor Humbuckers)
ItemPackageDimensions_Height : 20.193 centimeters
ItemPackageDimensions_Length : 2.54 centimeters
ItemPackageDimensions_Width : 14.605 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : electric-guitar-electronics
Manufacturer : ToneShaper
Material : Plastic
Material1 : Metal
Material2 : Plastic
MetalType : Aluminum
ModelName : KNOB S3
ModelNumber : A01-4mm
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfStrings : 3
PartNumber : A01-4mm
ProductDescription :

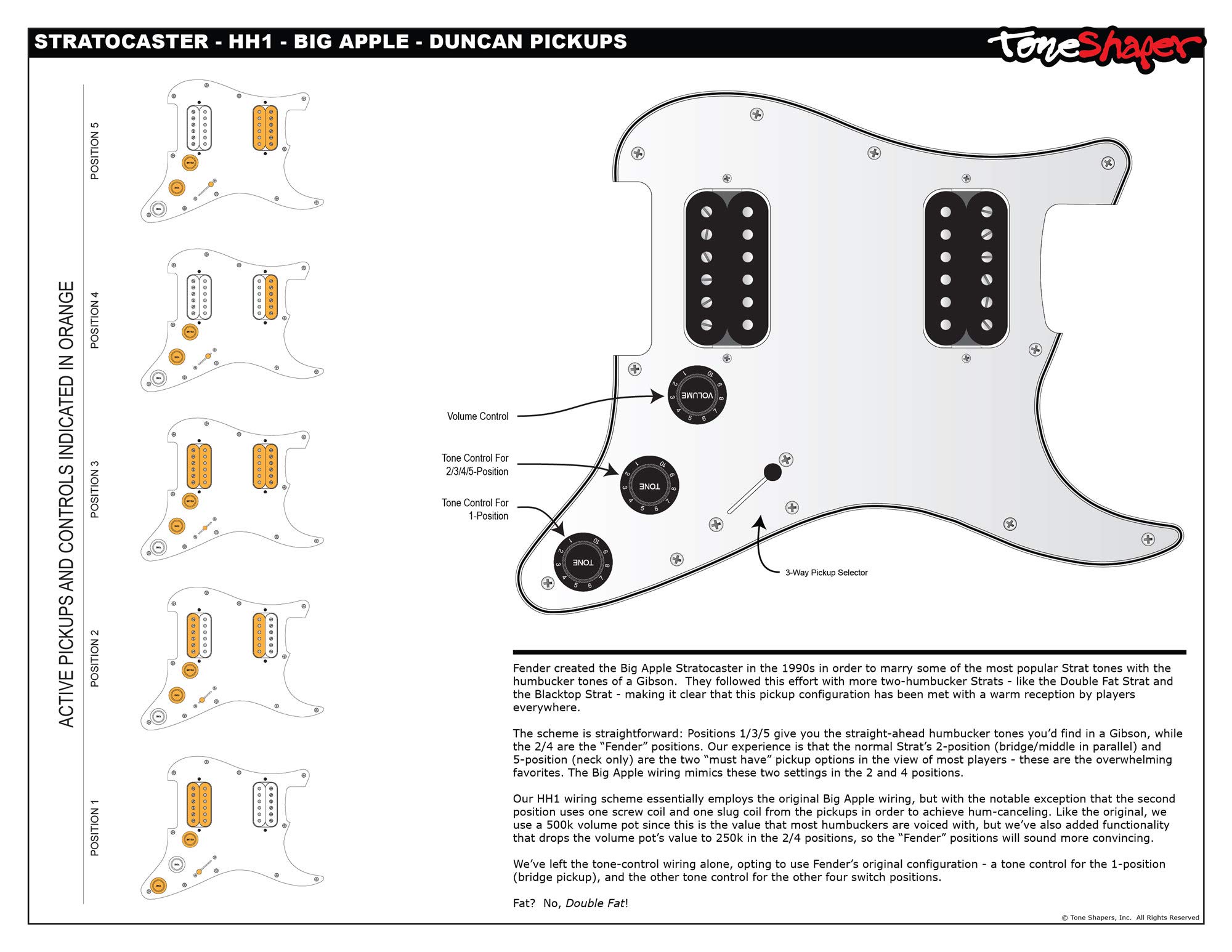

Fender created the Big Apple Strat in the 1990s to marry some of the most popular Strat tones (positions 2/4) with the humbucker tones of the guitars made by their competitors (positions 1/3/5):

5: Neck HB
4: Neck SC
3: Neck HB + Bridge HB
2: Neck SC + Bridge SC
1: Bridge HB

Our HH1 scheme employs Big Apple wiring, but our second position uses one screw coil and one slug coil from the pickups to retain hum-canceling. We use a 500k volume pot since this is the value most humbuckers are voiced with, but we’ve added functionality that drops the pot’s value to 250k in the 2/4 positions, so the “Fender” positions will sound most convincing.

We’ve left the tone-control wiring alone, using Fender’s configuration: a tone control for the 1-position (bridge pickup), and the other tone control for the other four switch positions.

Kit contents:

(1) Capacitor, .022µF Orange Drop
(1) Capacitor, .047µF Orange Drop
(1) Jack, Switchcraft, 1/4" Mono
(1) Pot, CTS 250K Audio, Low Torque (.250" Bushing Length)
(2) Pot, CTS 500K Audio, Low Torque (.250" Bushing Length)
(2) Resistor, 470K
(1) Screw for Shielding Ground Lug
(1) Shielding Ground Lug
(1) Switch, 5-Way, Oak-Grigsby, 4-Pole Superswitch, Narrow
(1) Treble Bleed Kit for Humbuckers
(1) Wiring Loom, Strat, HH
(3') Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, Black
(3') Wire, 22 AWG Cotton Push Back w/ Tinned Overcoat, White
(3') Wire, 22 AWG Stranded Silver-Plated Copper, Black PTFE
(3') Wire, 22 AWG Stranded Silver-Plated Copper, White PTFE
(1) Professional, Fully-Illustrated Wiring Diagram

ProductSiteLaunchDate : 2016-10-22T16:15:17.921Z
Size : A01-4mm
SpecificUsesForProduct1 : Drawer
SpecificUsesForProduct2 : Cupboard
Style : Adjustable
SupplierDeclaredDgHzRegulation : not_applicable
Theme : Music
UnitCount : 10
UnspscCode : 60131500
