Product Information
Editorial Review

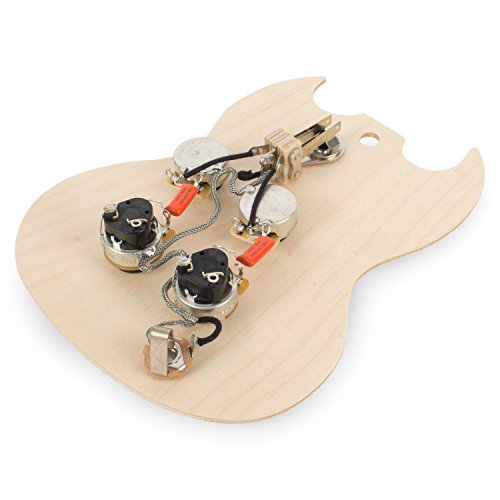

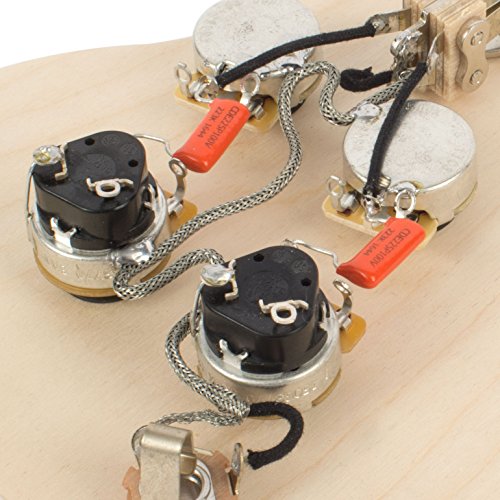

This prewired harness will SAVE YOU TIME and make your Gibson® SG® more versatile! Our pre-wired harness with push-pull pots splits the coils of humbuckers for single-coil operation. For humbucking pickups with series link access (3 wire, 5 wire, etc).Golden Age harnesses are assembled and soldered in the USA using top components, including Switchcraft switches and CTS pots for the best sound. Ready to drop into your guitar!Some simple soldering is needed to connect the switch and jack after you've threaded the wires through the guitar channels. Pickup lead wires will also need to be soldered to the harness.What's included:Installation instructions1 - reusable plywood template1 - Switchcraft 3-way right-angle switch (with amber knob)4 - 500K CTS control pots (2 regular, 2 push-pull; knobs NOT included)2 - Orange Drop capacitors1 - Switchcraft long-thread output jackComponents are prewired using cloth-covered push-back wireTECHNICAL SPECIFICATIONS:Switchcraft 3-Way Right-Angle Switch SpecsSwitch length: 2" (50.80mm)Body cavity depth required: 13/16" (20.64mm)Mounting hole diameter: 1/2" (12.70mm)Thread height: 3/16" (4.76mm)Requires at least 1-3/4" (44.45mm) from the center of the mounting hole to the edge of the control cavity for wiring clearance.CTS Control Pot SpecsResistance: 500K-ohmShaft diameter: 0.235" (5.95mm) split shaft, fine knurling (24 splines)Thread: 3/8" x 32Threaded portion height: 3/4" (19.05mm)Mounting hole diameter: 3/8" (9.52mm)Orange Drop Capacitor SpecsValue: .022uF (Code 223K)
Features
1) Ready to drop into your guitar, with only minimal soldering required
2) Quickly and easily upgrade your old wiring, and save work and time on new bulds
3) Assembled and soldered in the USA using premium components for long life and great sound
4) Installation instructions included
5) See Product Description for full list of components
Specification
Brand : Golden Age
Label : StewMac
Manufacturer : StewMac
Model : #AN2046
ProductGroup : Musical Instruments
ProductTypeName : INSTRUMENT_PARTS_AND_ACCESSORIES
Publisher : StewMac
Studio : StewMac
Title : Golden Age Pre-wired Harness for Gibson SG with Push-pull Pots
