Product Information
Editorial Review

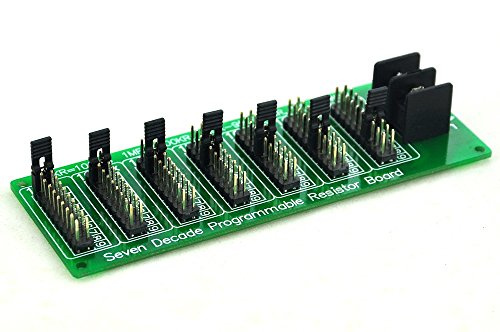

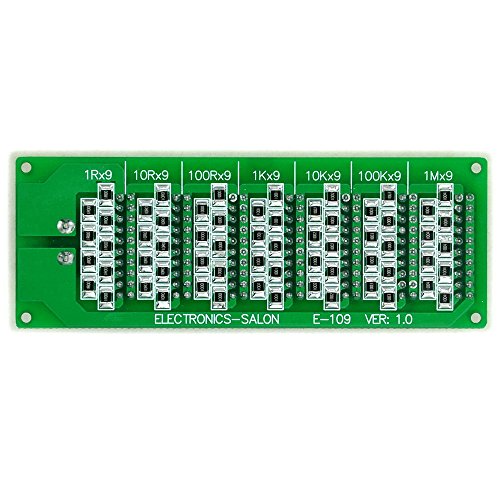

This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications. Features: Design based on "resistors series" theorem. 1/2 watt tolerance +/-1% SMD resistors. Screw terminal block easy to connect wires. High quality FR4 glass fiber PCB. With spare parts 10 pieces jumper caps (on board 7 pieces, total 17 pieces). Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step. Resistance Tolerance: +/-1% Rated Power: 1/2 Watt. Max. Working Voltage: 200V. PCB Size: 110mm x 40mm / 4.4" x 1.6" ã
Features
1) Quantity: a lot of 1 unit.
2) This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications.

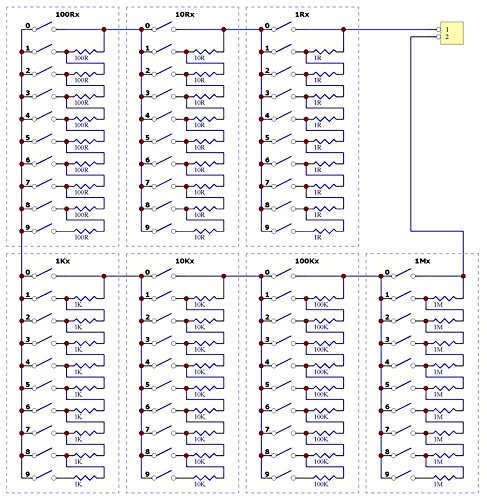

3) Design based on "resistors series" theorem. 1/2 watt tolerance +/-1% SMD resistors. Screw terminal block easy to connect wires. High quality FR4 glass fiber PCB. With spare parts 10 pieces jumper caps (on board 7 pieces, total 17 pieces).
4) Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step. Resistance Tolerance: +/-1%. Rated Power: 1/2 Watt. Max. Working Voltage: 200V.

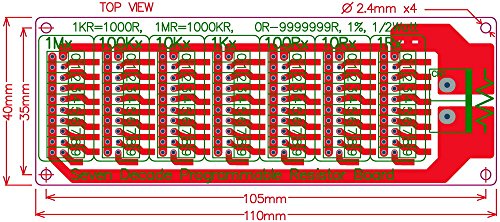

5) PCB Size: 110mm x 40mm / 4.4" x 1.6"
Specification
Brand : Electronics-Salon
EAN : 6921407382060
Label : Electronics-Salon
Manufacturer : Electronics-Salon
PackageDimensions_Weight : 0.15 pounds
PackageDimensions : L:4.88 X W:2.01 X H:1.18
ProductGroup : BISS
ProductTypeName : ELECTRONIC_COMPONENT
Publisher : Electronics-Salon
Studio : Electronics-Salon
Title : Electronics-Salon 1R - 9999999R Seven Decade Programmable Resistor Board, Step 1R, 1%, 1/2 Watt.
This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications. Features: Design based on "resistors series" theorem. 1/2 watt tolerance +/-1% SMD resistors. Screw terminal block easy to connect wires. High quality FR4 glass fiber PCB. With spare parts 10 pieces jumper caps (on board 7 pieces, total 17 pieces). Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step. Resistance Tolerance: +/-1% Rated Power: 1/2 Watt. Max. Working Voltage: 200V. PCB Size: 110mm x 40mm / 4.4" x 1.6" ã
