Specification
Brand : CHBMSS
BulletPoint1 : Small, lightweight and highly reliable load cells
BulletPoint2 : A load cell is actually a display device that converts mass into something measurable on a display.
BulletPoint3 : Load cells are widely used in today's heavy industry, manufacturing plants, large production plants and quality control environments.
BulletPoint4 : Please allow 1-3 mm volumetric error due to manual measurement.
BulletPoint5 : Colours may vary slightly due to different monitors and conditions at the time of photographing.
Color : One Color
ExternallyAssignedProductIdentifier : 7068574030086

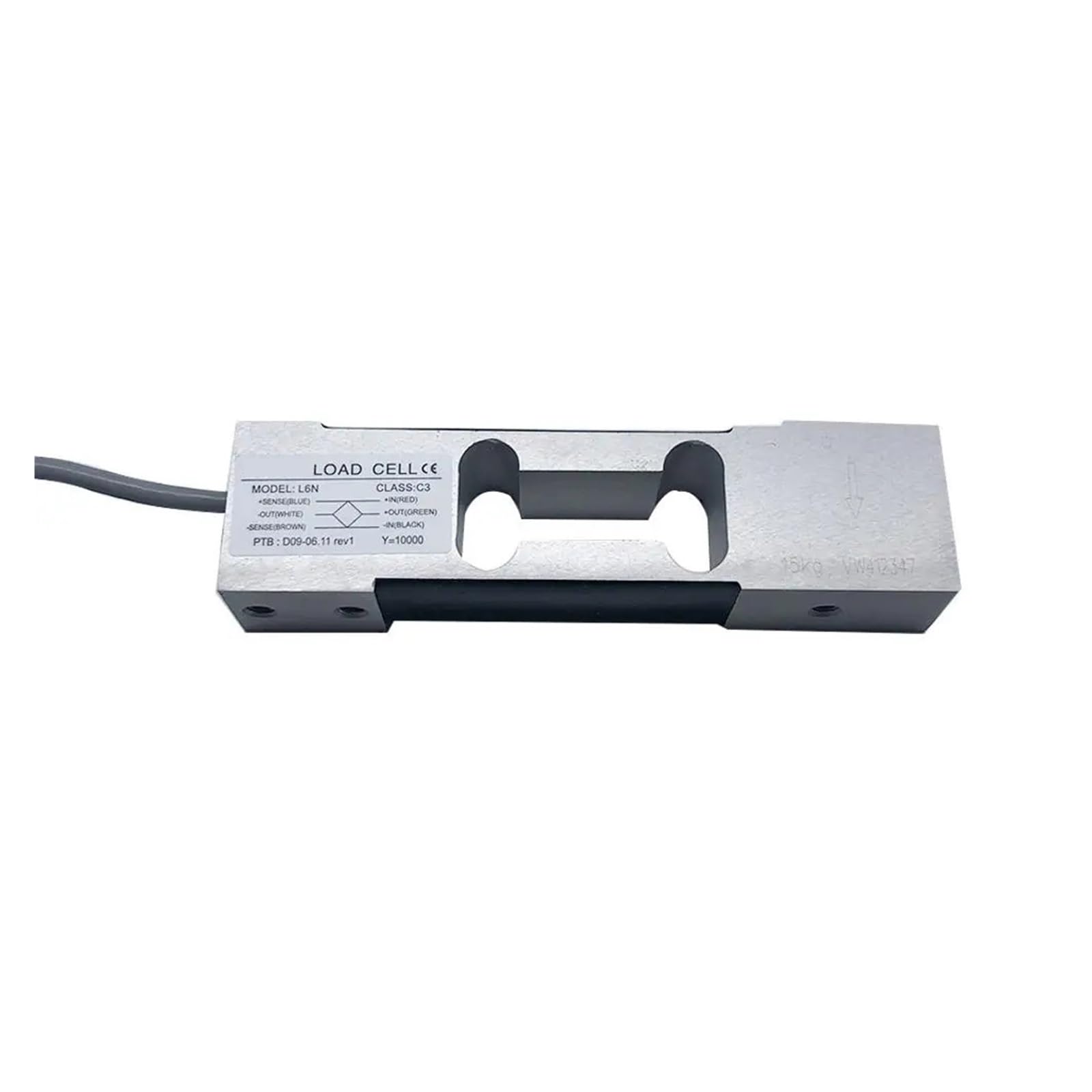

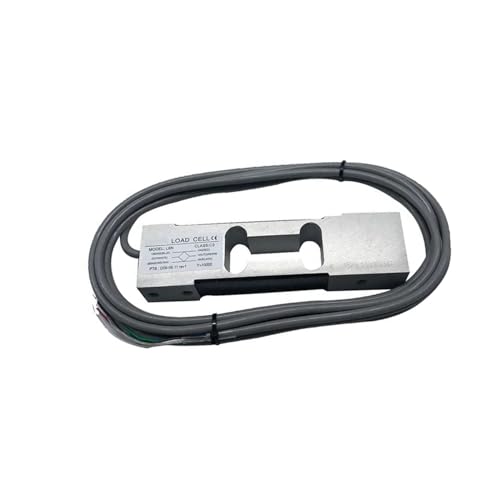

ItemName : Single Point Load Cell Accuracy Measuring Range Platform Scale Sensor, 3kg 5kg 8kg 10kg 15kg 20kg 30kg 50kg 100kg (Size : 3KG)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-indicators
Manufacturer : CHBMSS
MeasurementAccuracy : 1
ModelNumber : CHBMSS
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : CHBMSS
ProductDescription : Accuracy class
C3 C4 C5
Output Sensitivity
2.0±0.2mV/V
Comprehensive error
±0.2%F.S ±0.015%F.S ±0.01%F.S
Relative over 30 min
±0.0167%F.S ±0.0125%F.S ±0.01%F.S
Temp. influence on Output
sensitivity
±0.0175%F.S/10 ±0.0131%F.S/10 ±0.01%F.S/10
Temp. influence on the zero output
±0.02%F.S/10 ±0.012%F.S/10 ±0.009%F.S/10
Zero output ±2%FS
Temperature influence on zero
output -10~+40
Temperature range operating -35~+65
Input resistance 406±6
Output resistance 350±3
Insulation resistance 5000(50VDC)M
Reference excitation voltage 5-12V
Excitation,maximum 18DC
Maximum safe overload 120%F.S
Ultimate overload 150%F.S
Protection class IP65
Recommended weighing platform
size 400*400
Four-corner error
0.02% Load value/100mm
Recommended mounting torque 10
ProductSiteLaunchDate : 2024-03-13T09:06:00.175Z
Size : 3KG
UnitCount : 1
