Specification
Brand : ZJWZJH
BulletPoint1 : Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.
BulletPoint2 : Coil Voltage:110/120V AC, Coil Resistance: 1100Ω. Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:2NO2NC DPDT 2 Poles.
BulletPoint3 : Socket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .
BulletPoint4 : Package Content : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
BulletPoint5 : The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Color : One Color
ConnectorType : Screw
CurrentRating : 8 amps
ExternallyAssignedProductIdentifier : 7627441786190
IncludedComponents : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.
InputVoltage : 110 volts_of_alternating_current
ItemName : ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module, UL Certification (8 Pin- 8A, AC 110V)
ItemPackageDimensions_Height : 9.4996 centimeters
ItemPackageDimensions_Length : 3.7084 centimeters
ItemPackageDimensions_Width : 8.7122 centimeters
ItemPackageQuantity : 1
ItemShape : Rectangle
ItemTypeKeyword : electromechanical-relays
LowerTemperatureRating : -40 degrees_celsius
Manufacturer : ZJWZJH
Material : Copper
MaximumSwitchingCurrent : 8 amps
MaximumSwitchingVoltage : 250 volts_of_alternating_current
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
MechanicalLifeExpectancy : 5 years
MinimumSwitchingVoltage : 5 volts_of_direct_current
ModelName : YZTLIAYKPT
ModelNumber : YZTLIAYKPT
MountingType : DIN Rail Mount
NumberOfItems : 1
OperatingTime : 20 seconds
OperatingVoltage : 110 volts_of_alternating_current
OperationMode : ON-OFF
PartNumber : ZJ157FT-2PL-C3
ProductDescription : Package include :
Package Content : 1 x Electromagnetic Relay (AC110V),1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.

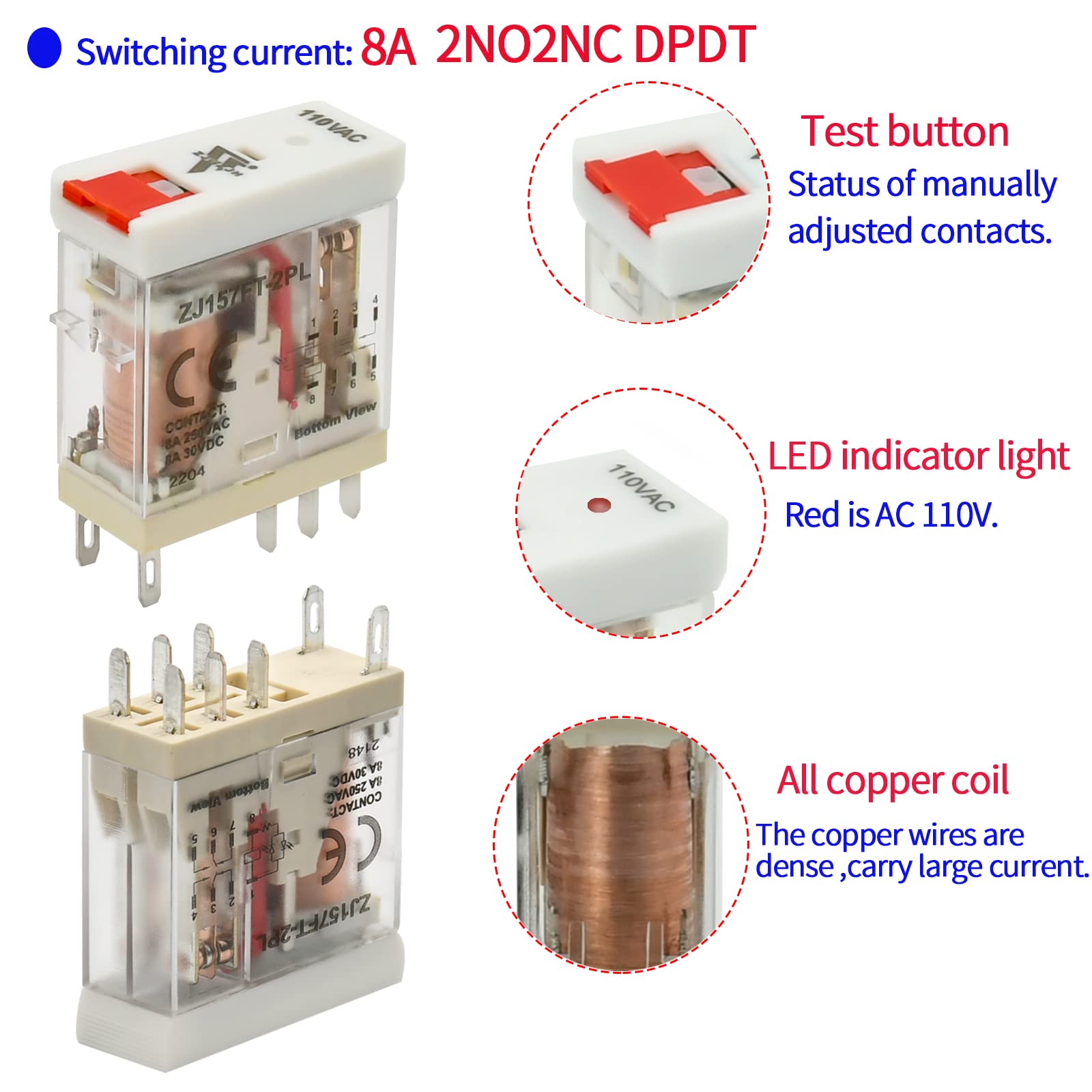

Relay Features

1.Small volume, 38.8*12.6*30.4mm, Easy installation
2.Get an electric shock load big: 8A
3.[Test key] can be used to manually adjust the instantaneous change of contact state.
4.[Frosted shell] The relay adopts a frosted upgraded shell with a toothed structure at the top to increase friction and facilitate plugging.
5.[See for safe use of electricity] LED indicator, red represents AC, green represents DC.
6.[High quality materials] The relay is made of high quality materials with high sensitivity, strong conductivity, high current carrying capacity and stable overall performance.

Contact Data

Rated Load:2NO 2NC DPDT,8A 250VAC /8A 30VDC
Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
Rated carry current:8 Amps
Max. contact voltage:AC250V,DC30V
Max. contact current:10A
Max. contact voltage:AC250V,DC30V
Max. contact current:10A
Max. switching capacity: 1250VA 150W

Characteristics

Operating time ≤20ms
Release time ≤10ms
Insulation resistance ≥1000mΩ （500VDC)
Ambient operating temperature:-40℃～+70℃
Weight: 123g
Ambientl humidity:5%～85%RH


ProductSiteLaunchDate : 2022-01-07T15:25:10.587Z
Size : 8 Pin- 8A
SpecificationMet1 : UL
SpecificationMet2 : CE
Style : AC 110V
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
UpperTemperatureRating : 70 degrees_celsius
Voltage : 110 volts_of_alternating_current
WarrantyDescription : Manufacturer warranty for 90 day
Wattage : 150 watts
