Specification
Brand : MAGNECRAFT
BulletPoint1 : This module is widely used in the design and development of the home and industrial electronic products of the majority of electronic enthusiasts, can be a good signal input source for the microcontroller, especially for the design of electronic circuits for students in institutions of higher learning. For automation equipment modification, PLC industrial control, robot, smart products.

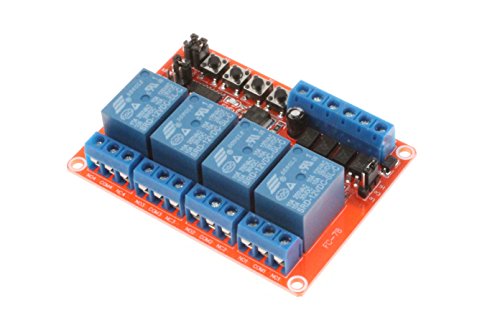

BulletPoint2 : Double-board design with PCB, 4-channel independent design, do not interfere with each other. The use of single-chip design, stable and reliable performance, strong anti-interference, not false trigger, superior performance.
BulletPoint3 : Trigger optocoupler isolation, the trigger power supply can be an independent external power supply, truly complete isolation. (If you need external trigger power: DC12V version of the trigger, in series with a 5.1-6.8K resistance; DC24V version of the trigger, in series with a 15-22K resistance; Otherwise it will damage the chip)
BulletPoint4 : With 4 tactile switches as a product test to directly verify product stability(Low-level trigger valid); with power indicator (green LED) and 4 switch indicators (red LED);
BulletPoint5 : NOYITO 4-Channel Relay Module Self-locking Triggering Interlocking High Low Level Trigger User Manual https://1drv.ms/b/s!AlzQUCOyZQhKgWqtI1OEN6hpVSmo?e=TSWcTQ
Color : Red
ConnectivityProtocol : X-10
ConnectorType : Screw
CurrentRating : 40 amps
ExternallyAssignedProductIdentifier : 7320479604688
ExternallyAssignedProductIdentifier1 : 0013227101108
ExternallyAssignedProductIdentifier2 : 013227101108
ExternallyAssignedProductIdentifier3 : 0048172069203
ExternallyAssignedProductIdentifier4 : 0662766167993
ExternallyAssignedProductIdentifier5 : 00048172069203
ItemName : Schneider Electric/Magnecraft 199AX-14 Relay; E-Mech; Power; DPDT; Cur-Rtg 40A; Ctrl-V 120AC; Vol-Rtg 277/28AC/DC; Screw
ItemPackageDimensions_Height : 2.032 centimeters
ItemPackageDimensions_Length : 12.7 centimeters
ItemPackageDimensions_Width : 8.89 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : MAGNECRAFT
Material : Copper
MaximumSwitchingCurrent : 40 amps
MaximumSwitchingVoltage : 250 volts_of_alternating_current
MeasurementSystem : Imperial
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelName : NHJLFKSA
ModelNumber : 199AX-14
MountingType : Panel Mount
NumberOfItems : 1
OperationMode : Automatic
PartNumber : 199AX-14
ProductDescription : Product Description
Work: self-locking / interlocking / triggering three optional.
[Self-locking]
Press once, relay pull, press again, relay closes.
Self-locking 4-Channel independent of each other without affecting each other, but also can be an external trigger switch (CH terminal wiring), with high or low triggering (optional), can control 4 such as lighting control.
[Triggering ]
Press the relay pull, release the button relay off. It is also possible to connect the trigger switch (CH terminal wiring) and trigger with high level or low level (optional).
[Interlocking]
Typical application of fan design, when S1 is pressed, S1 relay pull; when S2 is pressed, S1 is off, S2 relay pull. 2-channel interlock can only be connected all the way, but also an external trigger switch (CH terminal wiring), with high or low trigger (optional).

Electrical parameters:
Quiescent current: 22mA;
Working current:
1-Channel 45mA;
2-Channel 68mA;
3-Channel 91mA;
4-Channel 111mA;
Module Size: 77x57.5x18.5mm (L * W * H),
Weight: 70g / 0.16 lb;
Design has four bolt holes: Pitch 71x51mm, aperture 3mm.

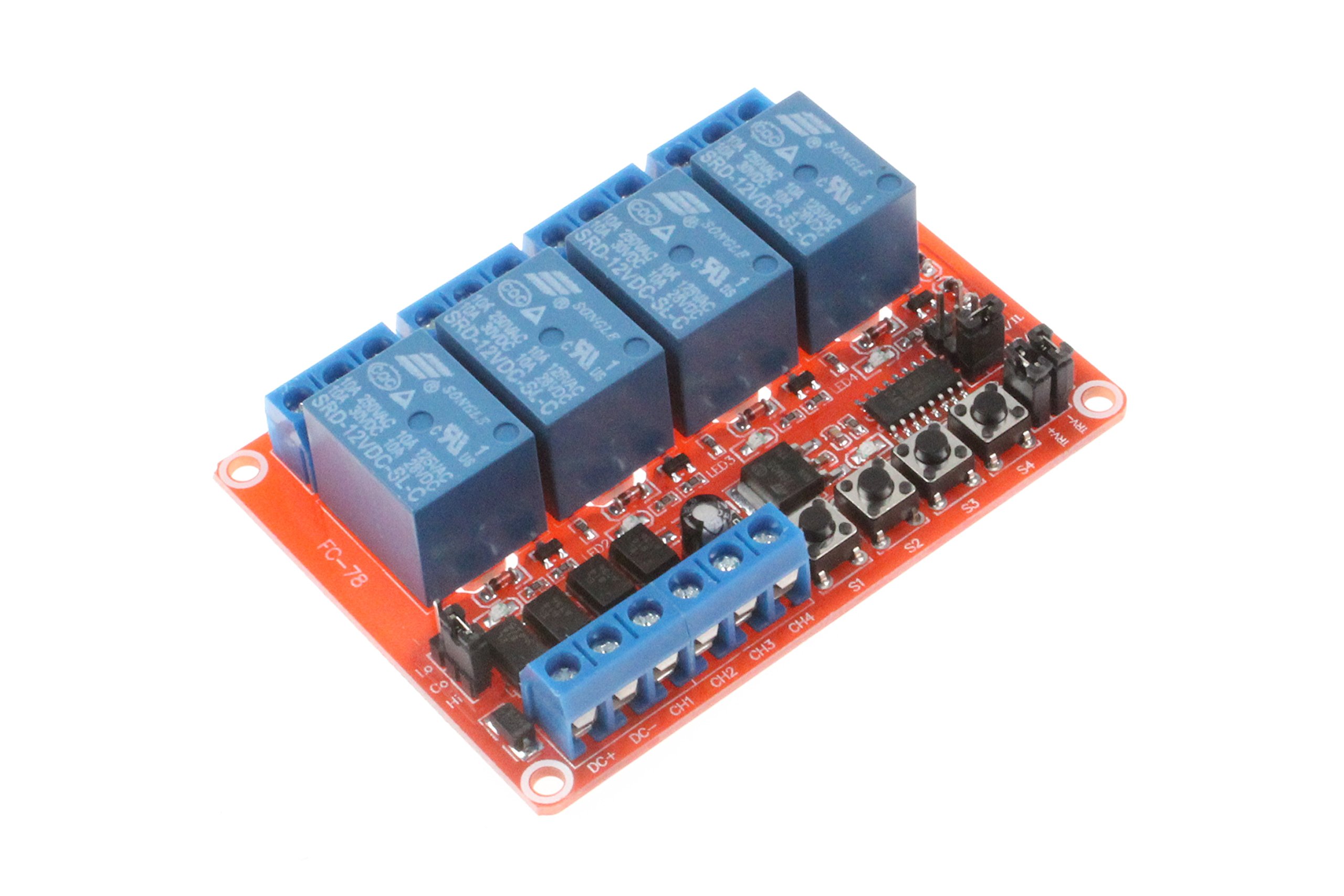

Module Interface:
Trigger side:
1.CH1-CH4: Corresponds to 1-4 relay trigger control terminal, supports high or low level trigger trigger;
2.TRV +: Connected to external trigger positive (if use external trigger , RTV + and VCC jumper cap need to unplug)
3.TRV-: Connected to external trigger negative (if use external trigger, RTV- and GND jumper cap need to unplug)
If the external trigger is not used, the TRV+, TRV-two jumper caps need to be plugged in.
If the external trigger is used, the TRV+, TRV-two jumper caps do not need to be plugged in.
Relay output:
1.NO1-NO4: NO
2.COM1-COM4: COM
3.NC1-NC4: NC.


ProductSiteLaunchDate : 2013-06-13T02:12:53.691Z
Size : One Size
SpecificationMet : UL
Style : 12V
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
