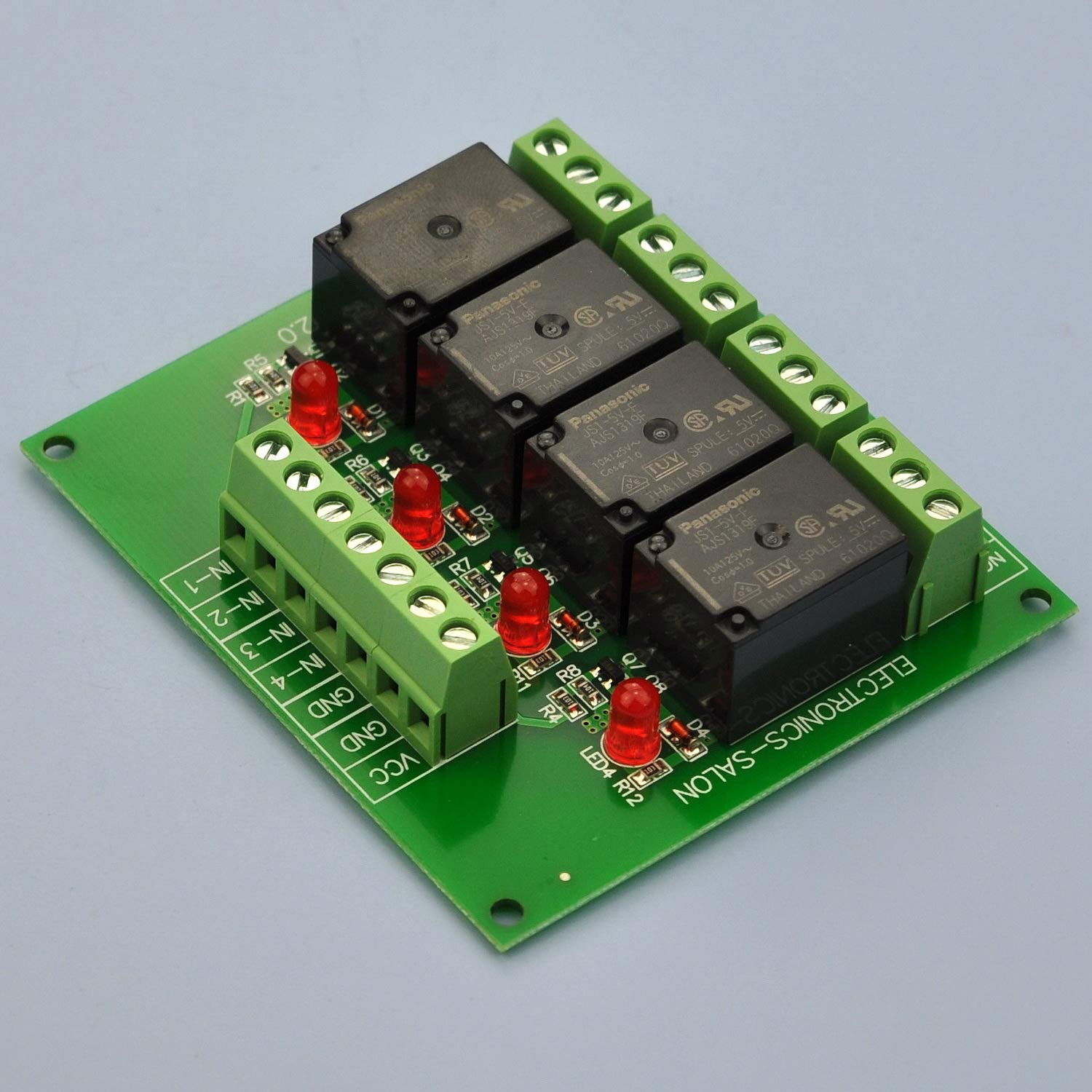

Electronics-Salon 4 SPDT 10Amp Power Relay Module, DC 5V Version.

Electronics-Salon 4 SPDT 10Amp Power Relay Module, DC 5V Version.

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 4900/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Proceed to Pay

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : Electronics-Salon
BulletPoint : Price For: Each
BulletPoint1 : 4 Channel SPDT power relay module, high quality JS1-5V-F 10Amp relays.
BulletPoint2 : Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
BulletPoint3 : High quality screw terminal block.
BulletPoint4 : FR-4 fiber glass PCB, dual copper layers.
BulletPoint5 : Datasheet: https://images-na.ssl-images-amazon.com/images/I/91NGZd-qx9L.pdf
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 6921407346444
ExternallyAssignedProductIdentifier1 : 0616880110465
ExternallyAssignedProductIdentifier2 : 616880110465
IncludedComponents : MK3P-I AC 110V+PF113A
InputVoltage : 250 volts
ItemName : Electronics-Salon 4 SPDT 10Amp Power Relay Module, DC 5V Version.
ItemPackageDimensions_Height : 9.6 centimeters
ItemPackageDimensions_Length : 3.4 centimeters
ItemPackageDimensions_Width : 8.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : Electronics-Salon
Material : Copper
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 24 volts
MeasurementSystem : Metric
ModelNumber : .
MountingType : Plug In Mount
NumberOfItems : 1
OperatingVoltage : 250 volts
OperationMode : Automatic
PartNumber : MD-D229/5V-1
ProductDescription :

4 Channel SPDT power relay module, high quality JS1-5V-F 10Amp relays.
Darlington transistor circuits drive relay coil, LED indicator for each relay channel.
High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.
Dimensions: L80mm x W72mm x H15.5mm

Operating Voltage / Current (VCC): 3.8 to 7.5VDC / 350mA(at 5VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.

Output (relay switch) contact rating for each channel:
For AC, 125 / 250 VAC, 10Amp
For DC, 30 VDC, 5Amp

The item no paper specifications, before buy please download the PDF datasheet:
https://images-na.ssl-images-amazon.com/images/I/91NGZd-qx9L.pdf


ProductSiteLaunchDate : 2015-10-10T02:33:24.205Z
Size : 1
SpecificationMet : Ma
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43201500
