Specification
Brand : ZJWZJH
BulletPoint : Price For: Each
BulletPoint1 : 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
BulletPoint2 : 【12v Relay Din Rail】Relay Coil Voltage: 12V DC/AC , Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.
BulletPoint3 : 【Dimension】Relay Model:HF41F/12-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
BulletPoint4 : 【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.
BulletPoint5 : 【Package】Package Content : 1× Power Relay; 1× Relay Socket Base;1x DIN Rail;2×Screw. Ambient temperature: -40℃ ~ 70℃. After sales service: if you have any question, please be free to contact us. We offer free replacement or full refund.
ConnectorType : Plug-In
CurrentRating : 6 amps
ExternallyAssignedProductIdentifier1 : 013227186761
ExternallyAssignedProductIdentifier2 : 2050003739528
ExternallyAssignedProductIdentifier3 : 0013227186761
IncludedComponents : 1× Power Relay; 1× Relay Socket Base;1x DIN Rail;2×Screw.

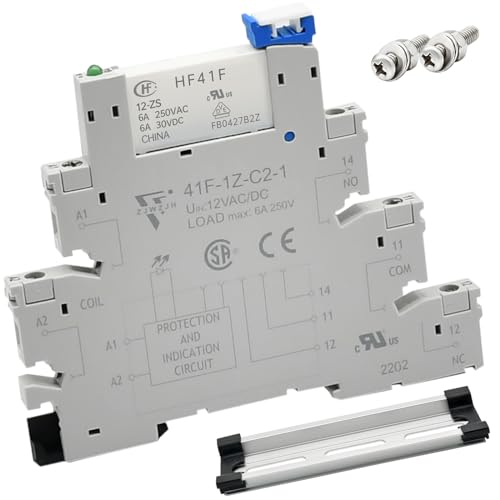

ItemName : Electromagnetic Relay 12VDC 12VAC SPDT 6Amp with LED Indicator, Socket Base, DIN Rail, Ultra Thin 6.2mm, UL/CE Certification
ItemPackageDimensions_Height : 3.5 inches
ItemPackageDimensions_Length : 5.12 inches
ItemPackageDimensions_Width : 0.63 inches
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : ZJWZJH
Material : Plastic
Material1 : gold
Material2 : Copper
MaximumSwitchingCurrent : 6 amps
MaximumSwitchingVoltage : 12 volts
MeasurementSystem : Imperial
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : HF41F/12-1PCS-2
MountingType : din_rail
NationalStockNumber : 5945-01-517-9192
NumberOfItems : 1
OperationMode : Automatic
PartNumber : HF41F/12-1PCS-2
ProductDescription : Package includes:
1 x Power Relay, 1 x Socket Base

Relay Features

Switching capacity: 6A Slim size: 5mm wide.
High fault voltage of 4 kV (between coil and contacts).
High sensitivity: approx. 170mW
Sockets available: Outline dimensions: (28.0x5.0x1 5.0) mm

Relay contact details

Contact layout: 1H,1Z

Contact Rating (Res.load): 6A 250VAC/30VDC
Max. Switching current: 6A
Max. Switching power: 1 500VA/180W
Mechanical strength: 10,000,000 Max. Switching voltage: 400VAC/125VDC
Contact material: AgSnO2, AgNi
Contact resistance: 100mQ (1A 6VDC)
ProductSiteLaunchDate : 2023-12-21T05:17:10.382Z
SpecificationMet : Nom
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
