Specification
Brand : lvifloae
BulletPoint : Relays
BulletPoint1 : 【Delay relay】：The delay relay module uses high-quality components with stable performance and simple , making it safe to purchase and use with peace of mind
BulletPoint2 : 【Delayed self-locking】：It can be widely used in various control situations that require delayed self-locking, and is a good helper for your work and life
BulletPoint3 : 【Preset function】：It has delayed opening, delayed closing, self-locking, and trigger delay functions. This module is pre-set with 4 functions to meet various application requirements, and can be customized and added with other specific functions according to user needs
BulletPoint4 : 【Power anti reversal】：It has power anti reversal function to prevent module damage. Parameters can be saved, and the settings will not be lost during power failure
BulletPoint5 : 【Delay time】：The delay time can be set arbitrarily between 0.1 seconds and 120 seconds, and can be adjusted to meet your usage needs
Color : One Color
ExternallyAssignedProductIdentifier : 7341571524377

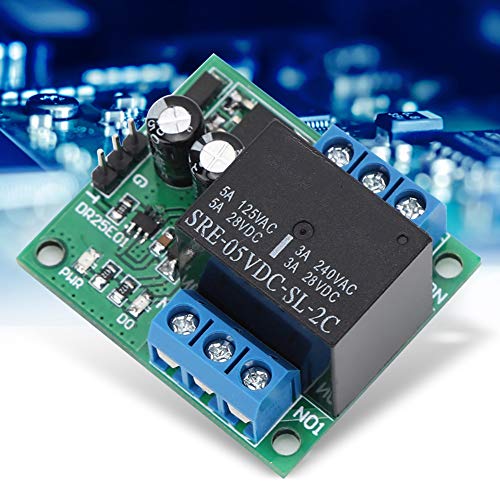

ItemName : DR25E01 DPDT Relay Module Double Pole Double Throw Self Locking Bistable Relay Board Locking Delay On Off Time Switch Super 555 Timer(DC6-24V) (DC6-24V)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : lvifloae
ModelName : lvifloaey1au0ecip8-12
ModelNumber : lvifloaey1au0ecip8-12
NumberOfItems : 1
PartNumber : lvifloaey1au0ecip8-12
ProductDescription : Item Type: DPDT Relay Module
Input Voltage: DC 5V (5V version), DC 6-24V (12V version) (optional)
Module Working Current: Forward 2MA, reverse 60-70MA
Load Current: 5A maximum (motor Control Mode: Low pulse control

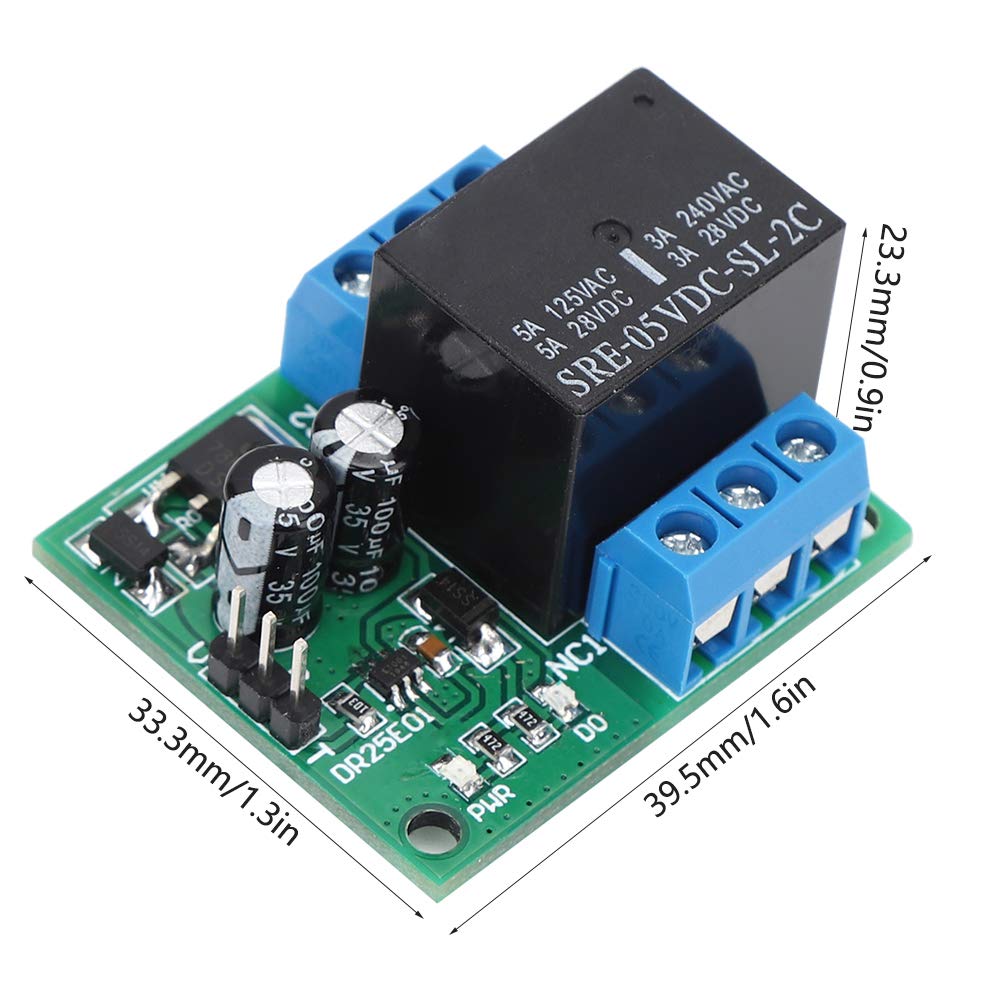

Size: Approx. 39.5 x 33.3 x 23.3mm / 1.6 x 1.3 x 0.9in
Pin Description:
V: Power positive
G: Power negative terminal and trigger signal ground terminal;
T: Trigger signal input (0.2-2 seconds low pulse).
NO1: Relay normally open port
COM1: Relay common port
NC1: Relay normally closed port
NO2: Relay normally open port
COM2: Relay common port
NC2: Relay normally closed port
How to use: When the power is turned on, the relay is turned off. Click the trigger port (T port) to pull in the relay, click the relay to release again, and so on.

Package List：
1 x DPDT Relay Module



ProductSiteLaunchDate : 2024-11-01T18:52:33.967Z
Size : DC6-24V
UnitCount : 1
UnspscCode : 39122300
