Specification
AgeRangeDescription : adult
Brand : sujeniir
BulletPoint : Motor Contactors
BulletPoint1 : Be careful:Since the acrylic material is soluble in organic solvent, please do not clean the acrylic bracket with any organic solvent,
BulletPoint2 : Use deionized water for cleaning. The PEEK bracket can use organic solvent. Dual pass AAO template electrochemical deposition special support
BulletPoint3 : Double pass AAO template (with a thickness of tens of microns) has a channel diameter of tens to hundreds of nanometers, and the channel length can reach tens of microns. The channels are parallel to each other, and
BulletPoint4 : the aperture uniformity is good. Therefore, metal nanowires with high aspect ratio and high density can be
BulletPoint5 : conveniently prepared by electrochemical deposition using double pass AAO as template.
Color : Diameter 13mm
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 4083928334927
ExternallyAssignedProductIdentifier1 : 8440889412396
ExternallyAssignedProductIdentifier2 : 8440889229901

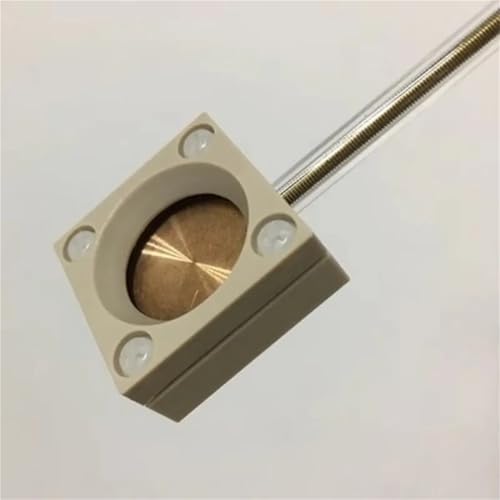

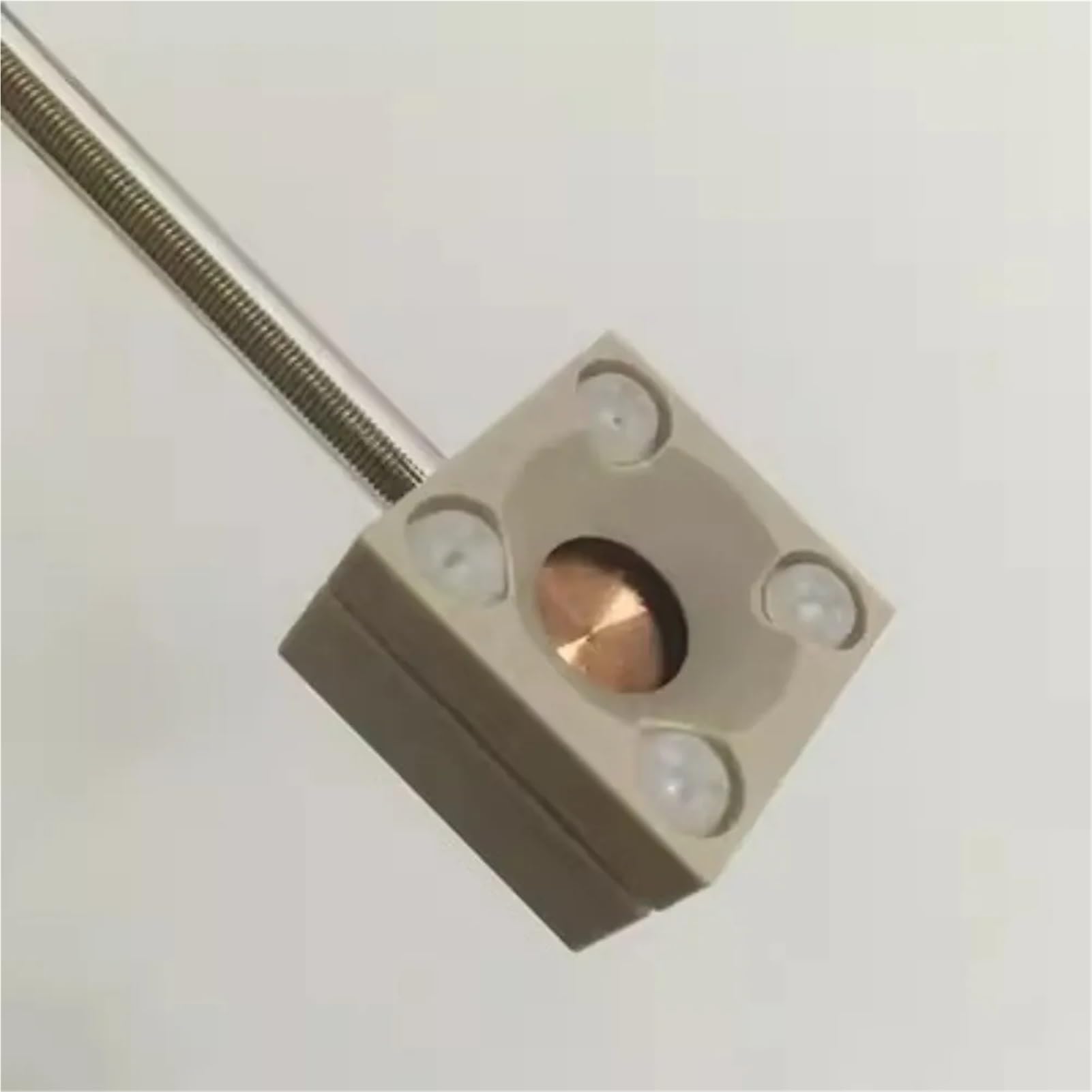

ItemName : sujeniir Electrochemical Deposition AAO Template Support Double Pass AAO electrodeposition Special(Diameter 13MM)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-electrochemistry-accessories
Manufacturer : sujeniir
Material : Copper
ModelName : sujeniir23905
ModelNumber : sujeniir23905
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : sujeniir23905
ProductDescription : Figure 1. Schematic diagram of the principle of preparing metal nanowires by electrochemical
deposition using two-way AAO as template
Figure 1 is the schematic diagram of the principle of electrochemical deposition of metal nanowire arrays using dual pass AAO templates. First, a continuous conductive metal layer should be prepared on one side of the dual pass AAO template. Magnetron sputtering, electron beam evaporation, thermal evaporation and other methods can be used. The conductive metal layer can be gold, silver, etc. The thickness of the conductive metal layer should be thicker (for example, the thickness is 1000nm). The hole of AAO must be completely blocked to form a continuous metal layer. Then, appropriate electrochemical deposition solution and deposition conditions (such as current, voltage, time) are used for electrochemical deposition. Due to the limitation of template holes, metal nanowires are formed. During the deposition process, the opposite side of the conductive metal layer of AAO (here called the front side of AAO) is required to be immersed in the electrochemical deposition solution, and the hole is filled with solution, while the opposite side of the conductive metal layer (the reverse side of the metal layer) must not contact the electrochemical deposition solution at all. In order to meet this requirement and facilitate the installation and removal of AAO templates, we have developed a special bracket for electrochemical deposition of double pass AAO templates, as shown in Figure 2.
Figure 2. (a, b) Special bracket for electrochemical deposition of two-way AAO template, used for two-
way AAO template with a diameter of 25mm. (c) The bracket of double pass AAO template is installed.
The pore diameter of AAO template is about 50nm, and the back evaporated metal is Au (40nm)/Al
(500nm). (d) Double pass AAO templates of nickel were deposited by DC electrochemical deposition.
The diameter of the effective area is
ProductSiteLaunchDate : 2024-10-18T08:45:47.066Z
Size : One Size
UnitCount : 1
UnspscCode : 23271800
