Specification
Brand : SEQURE
BulletPoint1 : Functions: Forward, reverse, braking
BulletPoint2 : Processor: 32-bit STM32G071, Operating frequency: Max 64MHz.
BulletPoint3 : Working Voltage: DC 18V-50.4V (5S-12S Lipo Battery), Constant Current: 200A, Peak Current: 250A
BulletPoint4 : Features: MOSFET combines with CNC metal radiator, effectively dissipating heat under a high current load.
BulletPoint5 : Protection: Low voltage protection, temperature protection, locked rotor protection, and current protection.
CpsiaCautionaryStatement : no_warning_applicable
IncludedComponents1 : electric speed controller * 1
IncludedComponents2 : signal line * 1

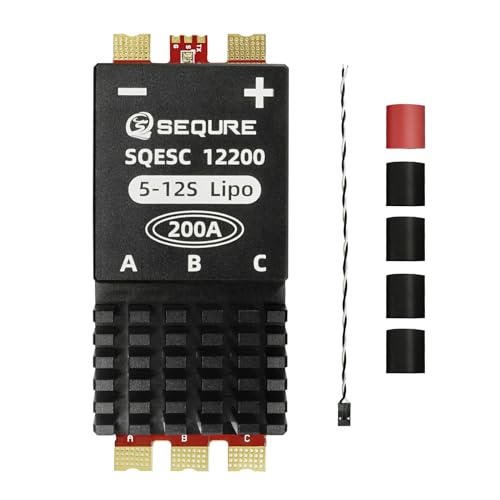

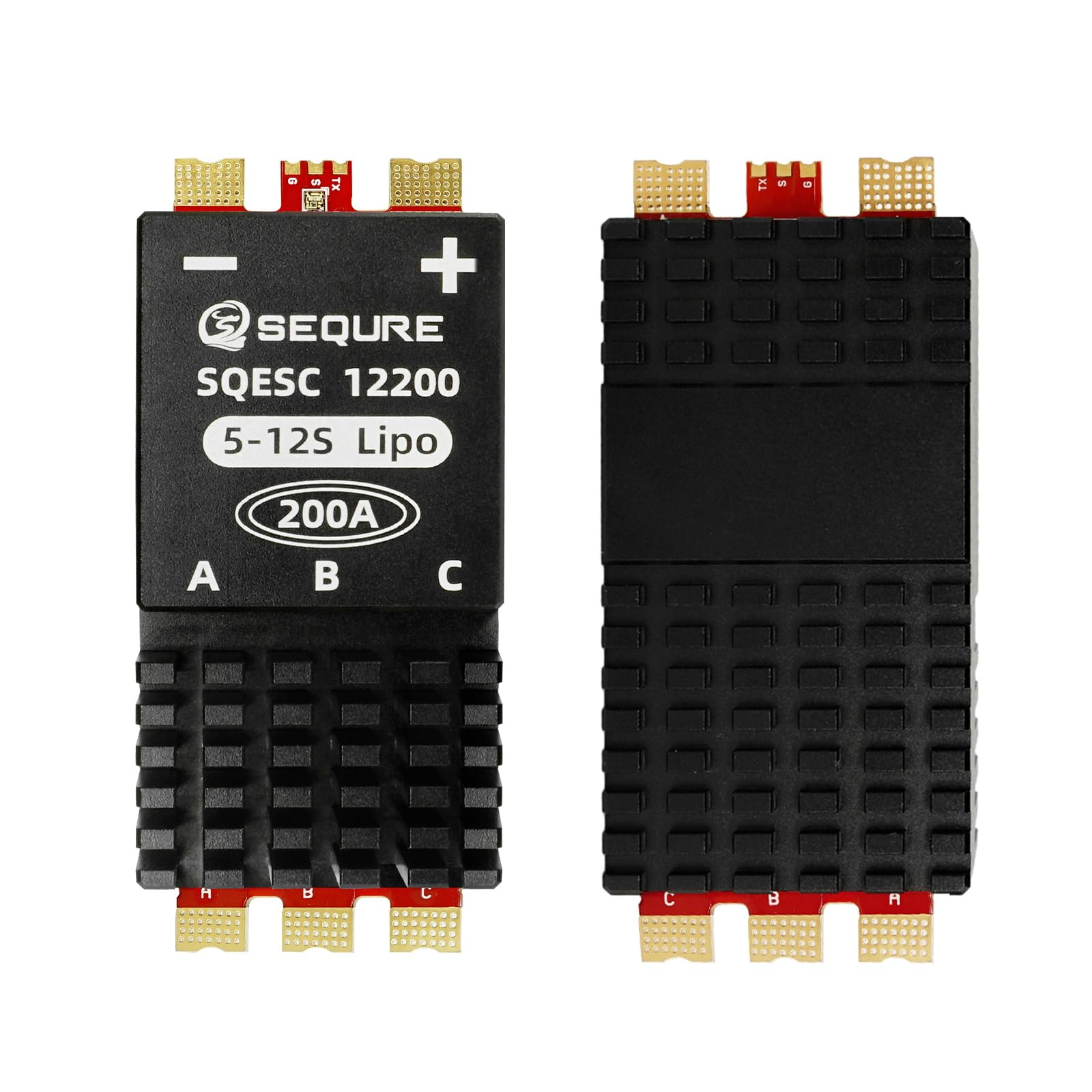

ItemName : SEQURE 200A Brushless ESC 5S-12S Electric Speed Controller for RC Cars Boats Crawler Tank - AM32 Firmware (NO BEC)
ItemPackageDimensions_Height : 1.1 inches
ItemPackageDimensions_Length : 5.9 inches
ItemPackageDimensions_Width : 3.7 inches
ItemTypeKeyword : hobby-rc-vehicle-speed-controls
Manufacturer : SEQURE
ManufacturerMinimumAge : 192
Material : Metal & Plastic
ModelName : SQESC 12200
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : SQESC 12200
ProductDescription : SEQURE 200A Brushless ESC 5-12S Lipo Battery RC Speed Controller

Specification
Model: SQESC 12200
Processor: STM32G071
Input voltage: DC 18V-50.4V(5-12S Lipo)
Continuous Curren: 200A
Peak Current: 250A
Support firmware: AM32
Signal Protocols: Dshot (All), PWM, Oneshot, Multishot, etc.
Programmable parameter adjustments: Yes
Steering Setting of the Motor: Yes
Accelerator calibration: Yes
Boost Timing Setting: Yes
Current Detection: Yes
Telemetry signal: Yes
RGB LED Light: Yes
Forward: Yes
Reverse: Yes
Brake: Yes

Features:
Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
Adopts high-power MOSFET, and combined with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
Onboard RGB LED color light settings, multiple LED colors can be customized.
Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.

ProductSiteLaunchDate : 2024-01-12T08:57:34.868Z
SafetyWarning : No safety warning
Size : AM32
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Unisex Adult
UnspscCode : 26111500
