Specification
Brand : SEQURE
BulletPoint1 : Output Capacity: Continuous Current 120A, Peak Current 150A. Input Voltage: DC 7V-33.6V(2-8S Lipo)
BulletPoint2 : This speed controller has functions of forward, backward.
BulletPoint3 : Support more signal protocols: Dshot (All), PWM, Oneshot, Multishot, etc.
BulletPoint4 : Safety Protection: low voltage protection, temperature protection, locked rotor protection, current protection, etc.
BulletPoint5 : Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
ExternallyAssignedProductIdentifier : 8253869856383
IncludedComponents : 1 * brushless esc

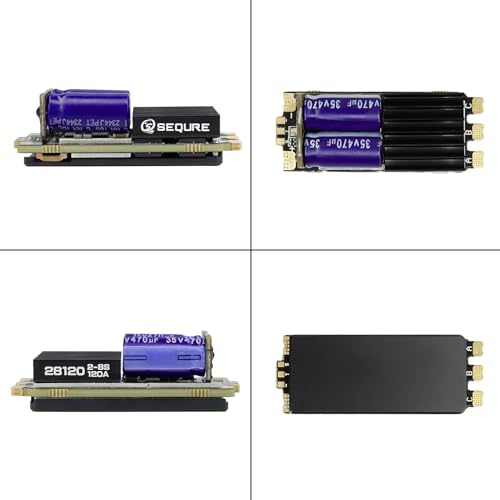

ItemName : SEQURE 120A 2-8S ESC Brushless Motor Speed Controller for FPV Drones Freestyle Multi-axis Aircrafts Helicopters - BLHeli_32
ItemPackageDimensions_Height : 0.69 inches
ItemPackageDimensions_Length : 4.6 inches
ItemPackageDimensions_Width : 3 inches
ItemTypeKeyword : hobby-rc-vehicle-speed-controls
Manufacturer : SEQURE
Material : Plastic
Material1 : Metal
Material2 : Plastic
ModelName : FBA-28120(BLHeli_32)
ModelNumber : FBA-28120(BLHeli_32)
NumberOfItems : 1
PartNumber : FBA-28120(BLHeli_32)
ProductDescription : SEQURE Brushless Motor Speed Controller 120A 2-8S ESC

Specification
Model: SQESC 28120
Processor: STM32G071
Input voltage: DC 7V-33.6V(2-8S Lipo)
Continuous Current: 120A
Maximum Current: 150A
Support Firmware: BLHeli_32
Signal Protocols: Dshot (All), PWM, Oneshot, Multishot, etc.
Programmable parameter adjustments: Yes
Steering Setting of the Motor: Yes
Accelerator calibration: Yes
Boost Timing Setting: Yes
Current Detection: Yes
Telemetry signal: Yes
RGB LED Light: Yes
Forward: Yes
Reverse: Yes
Brake: Yes
Weight: 0.76oz
Dimension: 5*2*1.7cm/1.9*0.78*0.66 inches

Features:
**Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz PWM frequency.
**Equipped with a high-power MOSFET and CNC metal radiator, this ESC dissipates heat effectively under high current load and works stably & continuously.
**The electronic governor automatically detects the throttle signal when powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot, and Multishot.
**Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
**Onboard RGB LED color light settings, multiple LED colors can be customized.
**Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships, and cars.

ProductSiteLaunchDate : 2024-05-30T07:00:00.000Z
Size : BLHeli_32
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 26111500
Voltage : 33.6 volts
