Specification
AgeRangeDescription : Kid
BatteriesRequired : 1
Brand : SEQURE
BulletPoint1 : Firmware: BLHeli_32, Working voltage: DC 7V-25.2V(2-6S Lipo), Constant current: 70A, Peak current: 110A
BulletPoint2 : BEC supports adjustable output: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A. Can directly supply power to external devices such as receivers and servos.
BulletPoint3 : SEQURE 2670 brushless esc supports reverse, towards, brake.
BulletPoint4 : Adopts 32-bit high performance processor STM32G071. Operating frequency could up to 64MHz. Supports 128KHZ PWM frequency.
BulletPoint5 : Automatically detects the throttle signal, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
BulletPoint6 : Low voltage protection, Over-heat protection, Locked rotor protection, current protection, etc.
BulletPoint7 : supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
Color : Blheli_32 + Bec
CpsiaCautionaryStatement : no_warning_applicable
Edition : 50A
ExternallyAssignedProductIdentifier : 8936037007687
ExternallyAssignedProductIdentifier1 : 0683770187586
ExternallyAssignedProductIdentifier2 : 683770187586
GpsrSafetyAttestation : 1
IncludedComponents : Brushless ESC + BEC
IncludedComponents1 : TOYTENSI 50A Marine ESC for RC Boat
IncludedComponents2 : User Manual
IndoorOutdoorUsage : outdoor
IsAssemblyRequired : 1

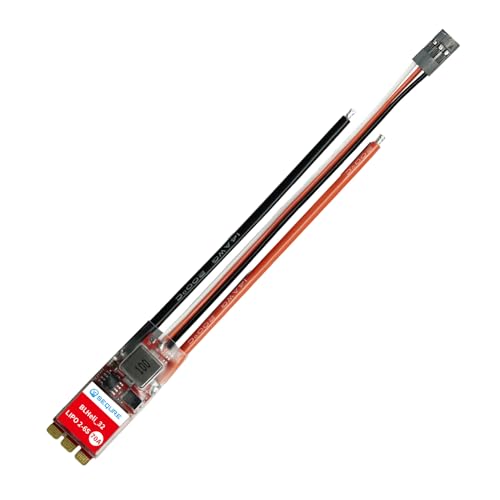

ItemName : 70A Bidirectional ESC, SEQURE Brushless Motor Electronic Speed Controller, Brake, Reverse, Forward, 2S-6S Lipo BLHeli_32 ESC 5V/4A BEC for FPV Drone RC Multi-axis Aircraft
ItemPackageDimensions_Height : 4.3 inches
ItemPackageDimensions_Length : 2.7 inches
ItemPackageDimensions_Width : 0.35 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-speed-controls
Manufacturer : SEQURE
ManufacturerMaximumAge : 110
ManufacturerMinimumAge : 12
Material : Aluminum
MaximumSpeed : 200000 rpm
ModelName : ESC
ModelNumber : DT2670B032BEC
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : sensored, sensorless
PartNumber : DT2670B032BEC
PowerSourceType : Battery Powered
ProductDescription : SQESC 2670 Brushless ESC BLHeli_32 Electronic Speed Controller 2S-6S Lipo

Technical Parameters
Model Name: SQESC 2670
Processor: STM32G071
Firmware: BLHeli_32
Input Voltage: DC 7V-25.2V(2-6S Lipo)
Constant Current: 70A
Maximum Current: 110A
BEC Output: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A
Signal Protocols: Dshot (All), PWM, Oneshot, Multishot, etc.
Programmable parameter adjustments: Yes
Steering Setting of the Motor: Yes
Accelerator calibration: Yes
Boost Timing Setting: Yes
Current Detection: Yes
Telemetry signal: Yes
RGB LED Light: Yes

Features:
PCB adopts an 8-layer 3OZ immersion gold process, high-power MOS combined with a metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.
Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal, and other settings.
Onboard RGB LED color light settings, multiple LED colors can be customized.
Widely used in FPV racing drones,multi-axis drones, fixed-wing, ship models, climbing vehicles, car models, and other scenarios

NOTE:
If you need to configure the parameters, please use the ESC-Link configuration tool to change the parameters. ESC-Link is compatible with AM32 and BLHeli_32.

ProductSiteLaunchDate : 2023-12-11T06:12:16.932Z
SafetyWarning : Please read the entire instruction manual carefully to become familiar with the features of the product before operating.
Style : BLHeli_32 + BEC
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetAudienceKeyword : Unisex Adult
TargetAudienceKeyword1 : Unisex Adult
TargetAudienceKeyword2 : People
TargetAudienceKeyword3 : Teens
TargetGender : unisex
Theme : Truck
ToyVehicleForm : Truck
UnitCount : 1
UnspscCode : 26111500
