Specification
BatteriesRequired : 1
Brand : Kongsen
BulletPoint1 : 【Intelligent Wireless Technology】the signal is not afraid of interference: adjust to the best performance, the signal is stable and low power consumption, the antenna is external, so that the remote control signal is everywhere.
BulletPoint2 : 【Note】The remote control needs to be used with the contactor. It cannot be directly connected to a power source. Connecting the power directly will burn the motherboard.
BulletPoint3 : 【Preheating Device】With battery voltage warming device,the power supply is cut off during low power. 【High-performance metal contact button:】 Ensures that the 2.5N presses 12 million times 0 failure.
BulletPoint4 : 【Material】IP65. Nylon fiber shell: comfortable touch, firm and fall resistance, strong anti-rolling ability, waterproof, anti-corrosion, insulation.
BulletPoint5 : DURABLE DESIGN - Mounted with an alloy steel manual chain with a black oxide finish which is resistant from corrosion and grime; The heavy-duty chain is forge-heated and combined with steel gear milling to strengthen durability; Cold-rolled steel cover protects the chains and gear system and improves reliability of this hoist
Color : 65-440V
ExternallyAssignedProductIdentifier1 : 0779584121967
ExternallyAssignedProductIdentifier2 : 779584121967

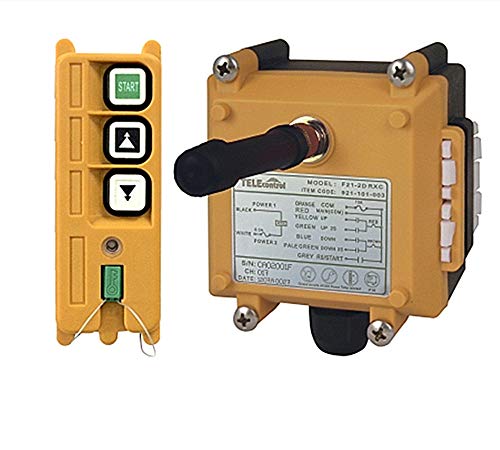

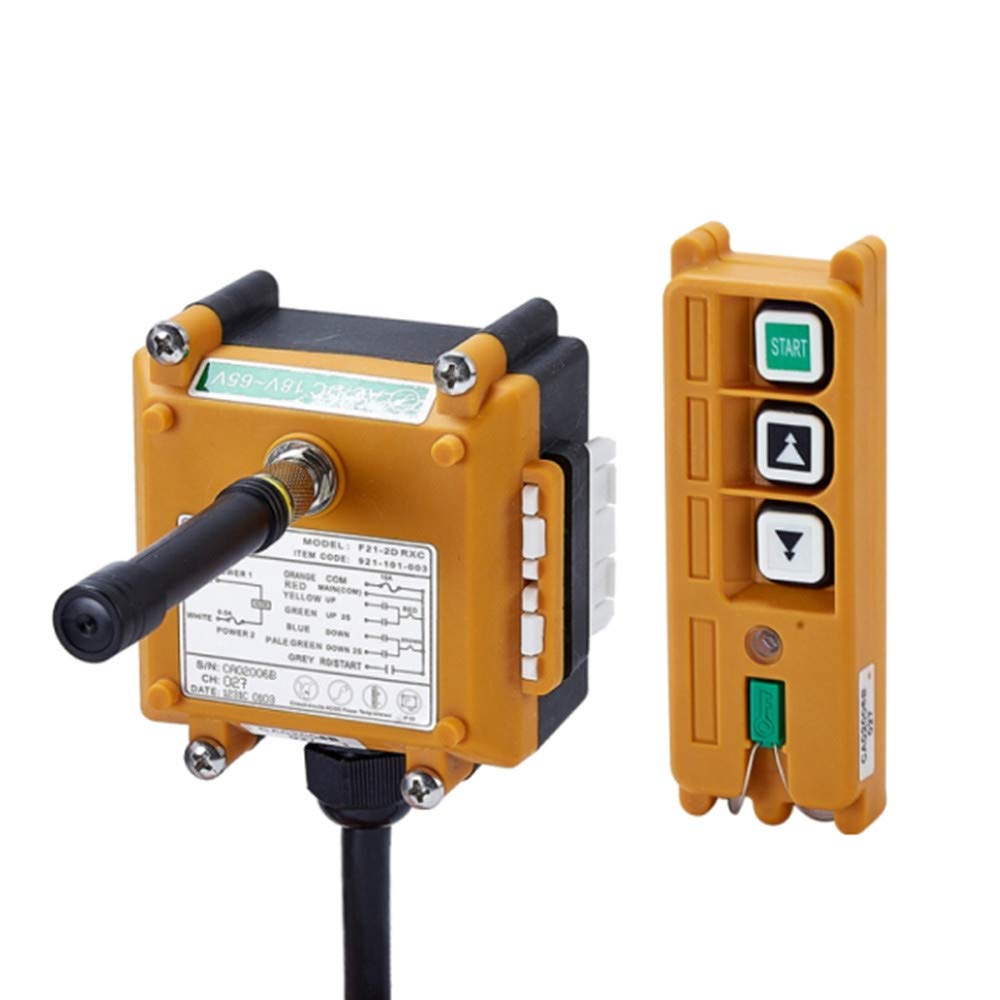

ItemName : Hoist Crane Industrial Radio Remote Control Wireless Transmitter Stop Button 2 Key Switch F21-2D (1 Transmitter+1 Receiver) (F21-2S AC/DC 65V-440V) (65-440V)
ItemTypeKeyword : electric-hoists
Manufacturer : Kongsen
Material : glass
PartNumber : F21-2D
ProductDescription : Parameters
Transmitter specifications

Number of function buttons: 2 double speed buttons,one “STOP”
Material: Glass-Fiber PA 66
Dimension:132*45*28mm
Weight: 98g (without batteries)
Protection Class: IP65
Frequency range: VHF: 310~331MHz; UHF: 425~446MHz
Transmitter power: Less than or equal to 10dBm
Power supply: 2AA Batteries
Safety code: 32bits (4.3 billion)
Temperature range: -40~85 degrees Celsius
Control distance: Approx60m(100 meters is customized)

Receiver specifications

Receiver power supply: 18-65V AC/DC,65-440V AC/DC,AC/DC 12V (AC/DC 12V meters is customized)
Output contactor capacity:8A sealed relay output (with AC 250V/10A relays,10A fuse) Material: Glass-Fiber PA66
Dimension: 88*92*62mm
Weight: 320G
Protection Class: IP65
Temperature range: -40~85 degrees Celsius
Frequency range: VHF: 310~331MHz; UHF: 425~446MHz
Receiver sensitivity: -110dBm
Cable length: 1.65 meters (it can be customized)
Safety code: 32 bits (4.3 billion)
Control distance:Approx60m(100 meters is customized)

Note:
The LED on the front of the transmitter indicates the condition of the batteries.
It will flash green during operation if the battery power is sufficient and
will flash red if the battery power is low. If the LED is flashing red, or if the
operation becomes erratic, or will only work from a short distance,
replace both batteries with new AA alkaline batteries.

Application
Bridge Crane / Overhead crane / Chain Hoist / Monorails / Concrete Pump
Truck / Mobile Lifting / Tower Crane

Package includes:
1.Two transmitter with hanging belt
2. One dust bag;
3. One receiver;
4. One 1.65m cable connect with receiver;
5. One receive antenna;
6. One operation and maintain manual.

ProductSiteLaunchDate : 2019-04-24T10:00:00.000Z
Size : F21-2D
Style : AC/DC 65V-440V F21-2S 1 Transmitter + 1 Receiver
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 24101600
