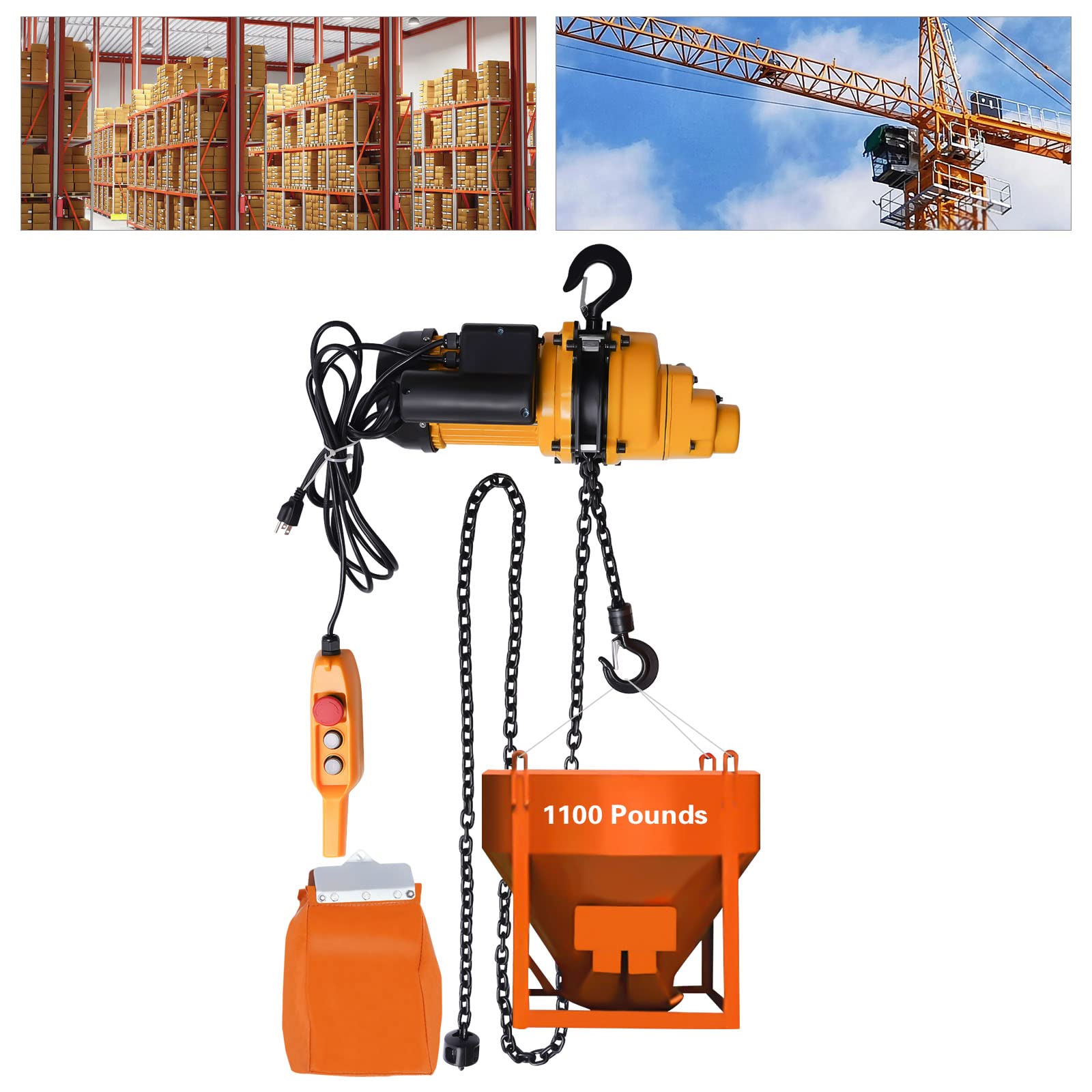

Heavy objects, especially irregular objects, are hard to lift while costing lots of manpower. So an efficient lifting machine is necessary. A pure copper motor with high power (1300W) and a sturdy chain made of 20Mn2 ensure a strong load capacity (1100lbs) with high work efficiency. It will be a great assistant for your lifting work!
Details
Lifting Strap: The lifting strap in the package can secure hard-to-hook goods, so you don't need to buy extra fixing tools, which is economical and convenient.
Chain Bag: It can prevent the chain from moving during operation.
Wired Remote Controller: The wired remote control allows you to control the lifting and lowering functions of the product within 10ft for safe operation. Meanwhile, you can press the emergency stop button on it to quickly brake the product, thus preventing sudden accidents.
Application
It is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railways, construction, garages, ceilings, attics, barns, lofts, etc. for lifting regular or irregularly shaped objects, and can be used for various lifting equipment such as single column, wall column, and crane.
Specifications
Color: Orange Color
Housing Material: Aluminum Alloy
Chain Material: 20Mn2
Hook Material: Manganese Steel
Rated Voltage: 110V
Rated Power: 1300W
Style: Modern
Type: Single Chain
Motor Protection Grade: IP55
Insulation Class: F
Chain Diameter: 6.3mm/0.25inch
Motor Type: Pure Copper Motor
Plug Type: American Standard
Maximum Load Capacity: 0.5T/1100lbs
Lifting Speed: 4m/13.1ft/min
Lifting Height: 4m/13.1ft
Handle Switch Wire Length: 3m/10ft
Gross Weight: 24kg/53.33lbs
Package Size: 51*28.5*39cm/20.9*11.22*15.35inch
Machine Body Size (L*H): 42*15cm/16.54*5.91inch
Package Included
1* Electric Chain Hoist
1* Lifting Strap
1* Chain Bag
1* English Manual
Notes
1. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.
2. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.
3. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.
4. The lifting weight shall not exceed the maximum load capacity of the product (1100 lbs). Please do not use multiple chain hoists to lift a heavy object or pull a heavy object horizontally.
5. Please do not use the chain when it is bent or twisted. Please do not jerk the chain when it is not moving and stop immediately, then start debugging the product.
6. Please do not throw the product to avoid damage.
7. For the uniformly distributed work cycle, the maximum operation time of the hoist per hour is 25%, and it can handle up to 150 starts per hour. When used for infrequent working hours, it can run for 30 minutes from the cold start, with a maximum of 200 starts per hour.
8. Before using the machine, please read carefully all the safety instructions in the product manual.
9. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
10. Contains only the electric chain hoist, does not include other goods for display.
