Specification
Brand : FTUREPAC
BulletPoint1 : 【Strong and Durable】: This electric hoist adopts carbon steel stamping shell, plastic spraying treatment, braided galvanized carbon steel wire, galvanized alloy steel hooks, high hardness and long service life.
BulletPoint2 : 【Pure copper motor】: This electric lifts adopts a high power pure copper motor (1200W), which has good heat dissipation and good stability, providing powerful power for lifting. In addition, it runs with low noise to provide you with a more comfortable working environment.
BulletPoint3 : 【High load capacity】: The sturdy cord and hook ensure high load capacity. The single rope has a load capacity of 771 lbs and a lifting rate of 32.8 ft/min, while the double rope has a load capacity of 1543 lbs and a lifting rate of 16.4 ft/min.
BulletPoint4 : 【Strong heat dissipation capability】: This electric hoist has a fan and mesh cooling holes, which can dissipate heat quickly and reduce the risk of burning out the machine, ensuring stable operation for a long time. The package comes with two extra lifting straps for securing hard-to-hook loads.
BulletPoint5 : 【Safety Protection】: Equipped with anti-overhead limiter, it will automatically stop lifting when it touches the hook, avoiding lifting too high and damaging the machine, making it safe to use. In addition, the hook with latch provides further protection.
BulletPoint6 : 【Wired Control】: It is equipped with a wired controller that allows you to control the lifting and lowering function of the electric hoist from a safe distance. In addition, the red button on it allows the device to be stopped in an emergency to prevent sudden accidents.
ExternallyAssignedProductIdentifier1 : 0763508761667
ExternallyAssignedProductIdentifier2 : 763508761667
IncludedComponents : 1 * Electric Hoist set

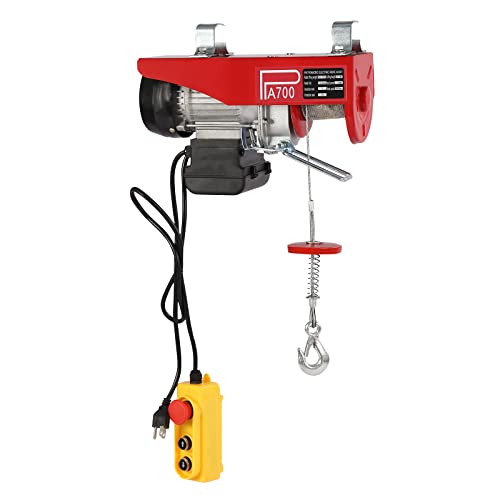

ItemName : 1543LBS Electric Hoists, 110V 1200W Electric Winch with Remote Control, Lift Single/Double Slings, Lifts up to 40ft, Electric Hoist Lift Steel Wire Hoist for Garage, Warehouses, Factories
ItemTypeKeyword : electric-hoists
Manufacturer : FTUREPAC
NumberOfItems : 1
PartNumber : electric hoist
ProductDescription :

Application

The electric hoist is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railways, construction, garages, ceilings, attics, barns, lofts, etc. for lifting regular or irregularly shaped objects. The electric hoist can be used for various lifting equipment, such as single column, wall column, crane, etc.



Specifications

Housing Material: Carbon Steel

Finish: Plastic Spray

Hook Material: Galvanised Alloy Steel

Cable Material: Galvanised Carbon Steel

Motor Housing Material: Aluminum

Motor Type: Pure Copper Motor

Color: Red

Model: PA700

Plug Type: US Standard

Voltage: 110V-60Hz

Power: 1200W

Insulation Rank: B

Protection Rank: IP40

Load Capacity: 350kg/771lbs(Single Cable), 700kg/1543lbs(Double Cable)

Lifting Speed: 32.8ft/min (Single Cable) , 16.4ft/min (Double Cable)

Lifting Height: 12m/39.4ft(Single Cable), 6 m/20 ft(Double Cable)

Work Quota: 20%10min

Product Size: 24*10*21.8cm/9.5*4*8.6in

Large Hook Length: 11.5cm/4.5in

Small Hook Length: 10cm/4in

Packing Size: 46*16*27cm/18.11*6.29*10.62in

Gross Weight: 16.5kg/36.37lbs

Net Weight: 16kg/35.27lbs



Package Included

1 * Electric Hoist

2 * Lifting Straps

1 * Hook

2 *Mounting Clamp Brackets

1* Wired Remote Control

1* English Manual

All Accessories for Use



Notes

1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.

2. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.

3. Please ensure that all persons in the immediate area are informed and warned of the need for

safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.

4. Please purchase the electric hoist corresponding to the weight required for the job.

5. If the hook is cracked or deformed, or if the wire rope is kinked or corroded, please do not use the product.

6. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.

7. Before using the machine, please read carefully all the safety instructions in the product manual.

8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
