Specification
AgeRangeDescription : adult
Brand : Frigidaire
BulletPoint1 : Manufacturer Model 134711300
BulletPoint2 : Genuine Replacement Part
BulletPoint3 : Frigidaire item
BulletPoint4 : Model number: 134711300
BulletPoint5 : OP(conduction time) / CL(off time) / LOP(circuit times) can be set individually, and the parameters are mutually independent. All parameters are permanently saved once set. The functions and parameters can be reviewed or changed at a later time.
BulletPoint6 : As is well known, different computers display different colors, and the actual color may differ slightly from the image below
BulletPoint7 : As is well known, different computers display different colors, and the actual color may differ slightly from the image below
Color : 5pcs
ConnectorType : Screw
CurrentRating : 5 amps
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 9388338132497
ExternallyAssignedProductIdentifier1 : 717449113665
ExternallyAssignedProductIdentifier2 : 0717449113665
ExternallyAssignedProductIdentifier3 : 00717449113665
IncludedComponents : DC 6-30V Timer Relay Programmable Delay Relay
InputVoltage : 5 volts
IsOemAuthorized : 1

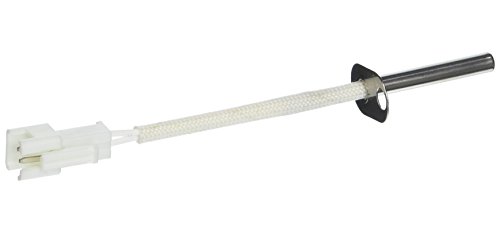

ItemName : Frigidaire 134711300 Thermistor Dryer
ItemPackageDimensions_Height : 13.97 centimeters
ItemPackageDimensions_Length : 17.272 centimeters
ItemPackageDimensions_Width : 11.938 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : clothes-dryer-plug-receptacles
Manufacturer : Frigidaire
Material : Resin
MeasurementSystem : Inch
ModelName : 131644700
ModelNumber : 134711300
MountingType : Plug In Mount
NumberOfBoxes : 1
NumberOfItems : 1
OemEquivalentPartNumber : 131644700
OperatingVoltage : 5 volts
PartNumber : 134711300
ProductDescription :

Product parameters:

Voltage: 6V~30V(support micro USB 5.0V)

Output Capacity: can control no more than DC 30V 5A AC or 220V 5A

Quiescent Current: 20mA

Operating Current: 50mA

Operating Temperature: -40℃~85℃

Timing Range: 0.1seconds to 999 minutes(continuously adjustable)

Trigger Signal Source: High voltage level trigger(3.0V~24V), signal ground and system ground are not connected to improve system anti-interference ability(or you can connect them).

Optocoupler Isolation: improve the anti-interference ability, after the parameter setting, it will memory forever . Warning: Relay contact is passive and electricity production; 1 channel has the control function on / off.

Operation Mode:

P1: After triggering signal, switch is connected for "OP" time, then disconnected; within the "OP" time:

P1.1: if trigger signal again, it is invalid.

P1.2: if trigger signal again, restart timing.

P1.3: if trigger signal again, switch is disconnected, stop timing.

P-2: After triggering signal, switch is disconnected for "CL" time, then switch is connected for "OP" time, and disconnect after timing.

P3.1: After triggering signal, switch is connected for "OP" time, then switch is disconnected for "CL" time, and enter loop. If trigger signal during loop, switch is disconnected and stop timing. The loop times (LOP) can be set.

P3.2: After power on, no need trigger signal, switch will be connected for "OP" time, then disconnected for "CL" time, and enter loop. The loop times (LOP) can be set

P-4: Signal holding function. If there is trigger signal, timing will be reset, switch remains connected; when the signal disappears, it will disconnect after "OP" time. During timing, if there is a signal, timing will be reset.

OP: Connect time. CL: Disconnect time. LOP: Loop times(1~999, "---" indicates infinite times).

C-L Sleep mode: within 5 minutes, no operation; ni
ProductSiteLaunchDate : 2009-05-11T23:29:08.000-00:00
Size : As shown
SpecificationMet : CE
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 32121610
WebsiteShippingWeight : 0.06 kilograms
