Specification
Brand : SMTAV
BulletPoint1 : Full Function USB Interface: Full function USB interface, compatible with USB3.0 and USB2.0, support audio, compressed video output and UVC v1.1~1.5 protocol.
BulletPoint2 : 1080P Full HD: Equip with 1/2.8 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and ach+A39:A51ieve quality image, The output frame rate can reach 60fps under 1080P.

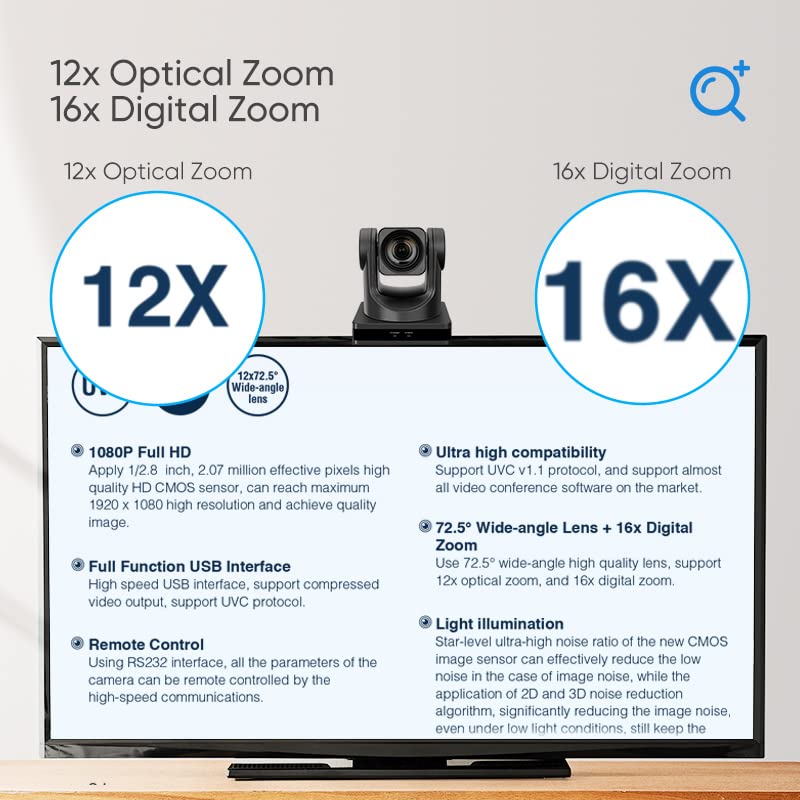

BulletPoint3 : Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom. Support HMDI, USB3.0, network interface can output 1080P video at the same time.
BulletPoint4 : PoE support: Wired networks support PoE power supply. Control, power supply, video, and audio can be completed by using only one cable.
BulletPoint5 : Remote Control: Multiple control modes, using RS232, RS485, network and USB to control the camera.
BulletPoint6 : Support USB 5V power supply, 12V power adapter power supply and PoE power supply.
Color : Black
CompatibleDevices : Smartphone
ConnectivityProtocol : Wi-Fi
ConnectivityTechnology : Wireless
ConnectivityTechnology1 : USB
ConnectivityTechnology2 : HDMI
ConnectivityTechnology3 : Ethernet
ControllerType : Apple HomeKit
ControlType : App Control
DigitalZoom : 16 multiplier_x
EffectiveStillResolution : 2.07 megapixels
ExternallyAssignedProductIdentifier1 : 699965845698
ExternallyAssignedProductIdentifier2 : 0699965845698
FileFormat : h.265
FocusType : Manual Focus
IncludedComponents : Camera
IndoorOutdoorUsage : indoor
ItemName : SMTAV 12x Optical Zoom, and 16x Digital Zoom,high-Speed PTZ, HDMI Output,H.265 Support Full HD Video Conference Cameras
ItemPackageDimensions_Height : 25.7 centimeters
ItemPackageDimensions_Length : 23.2 centimeters
ItemPackageDimensions_Width : 23.4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : dome-cameras
Manufacturer : SMTAV Technology
MaxAperture : 1.8 f_stop
MaxFocalLength : 42.3 millimeters
MaximumRange : 120 feet
MediaType : SD Card
ModelName : Z96
ModelNumber : SMT-HD17H
MountingType : Wall Mount
NumberOfItems : 1
OpticalZoom : 12 multiplier_x
OutputType : USB
PartNumber : SMT-HD17H
PowerSourceType : Corded Electric
ProductDescription :

Camera

• Video System:  1080P60，1080P50，1080P30，1080P25，720P60，720P50
• Sensor: 1/2.8'', CMOS, Effective Pixel: 2.07M
• Lens: 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
• Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
• Digital Noise Reduction: 2D&3D Digital Noise Reduction
• Video S/N: ≥55dB
• Angle of View  H: 72.5° ~ 6.9° / V : 44.8° ~ 3.9°
• Rotation Range  H : ±170° V: -30° ~ +90°
• H & V Flip Support
• Image Freeze Support
• Number of Preset  255
• Preset Accuracy  0.1°

USB Featured

• Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
• Color System / Compression YUY2 / H.264 / MJPEG
• Video Format YUY2 : Max 1080P@60fps
• Audio on USB Support
• UVC PTZ control: Support

IPC Features

• Video Compression H.264/MJEPG
• Video Stream Main Stream, Sub Stream
• Main Stream Resolution 1920x1080,1280x720,1024x576,960x540,640x480,640x360
• Sub Stream Resolution 1280x720,1024x576,720x480,720x408,640x360,320x240，320x180
• Audio Compression AAC
• Support protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc.

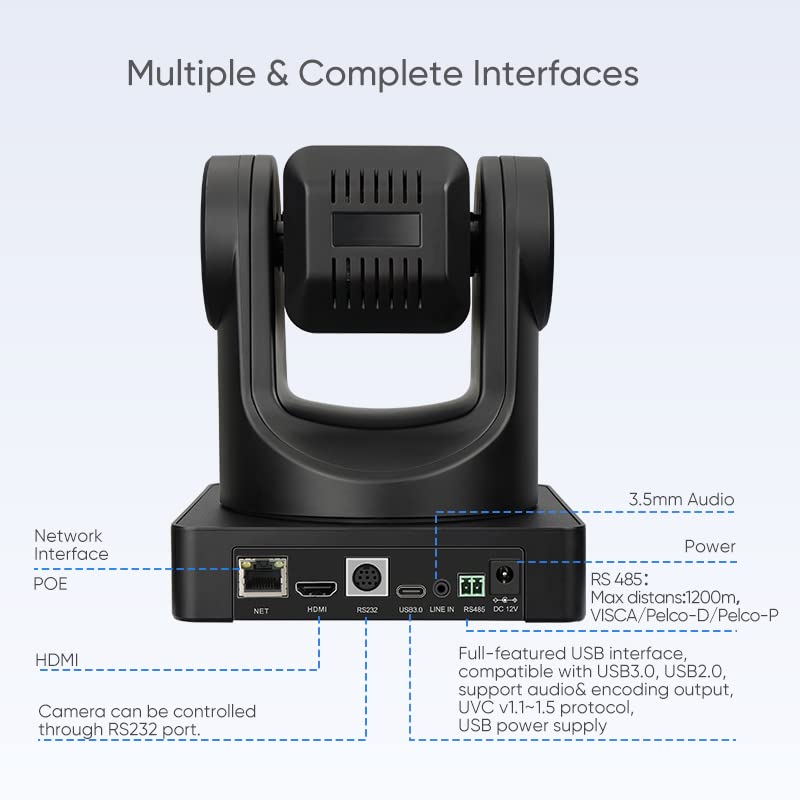

Input/Output Interface

• Video Oupputs: USB3.0, HDMI1.4b,10M/100M Ethernet
• Audio Interface :3.5mm Audio Interface, Line In
• Communication Interface 1xRS232  1xRS485
• Protocol: VISCA/Pelco-D/Pelco-P
• Power Jack JEITA type（DC IN 12V）/USB B type（DC IN 5V）/PoE

Generic Specification

• Input Voltage DC 12V/DC 5V/PoE(802.3af)
• Power Consumption 12W（max）
• Size 144mm x 144mm x 167.9mm

ProductSiteLaunchDate : 2017-10-08T07:00:00.000Z
RecommendedUsesForProduct : Indoor Security
Size : 12X black
Style : 12X
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 45121500
VideoCaptureFormat : AVI
VideoCaptureResolution : 1080p
WeatherResistanceDescription : Weatherproof
