Specification
AgeRangeDescription : adult
Brand : INTSUPERMAI
BulletPoint1 : 【High Quality Material】This Jacketed Reactor adopts high borosilicate glass, which has the advantages of high temperature resistance, corrosion resistance and low expansion rate. Moreover, its surface is smooth and easy to clean. The overall national standard stainless steel new frame structure, compact and sturdy.
BulletPoint2 : 【Digital Display】This Glass Reactor adopts variable frequency governor to digitally display temperature and speed, which is convenient to observe and adjust material reaction. More convenient, intuitive and accurate.
BulletPoint3 : 【Powerful Motor】The motor adopts low friction bearing, with strong power, high efficiency, long continuous operation time, good stability and low noise. It can be applied to materials with high viscosity.
BulletPoint4 : 【Good Sealing Performance】Sealed kettle cover, Constant pressure funnel, etc, they all have good sealing and simple operation. also, they are easy to disassemble and clean. The new discharge valve makes the discharge cleaner. It is adjusted by knob, which is more convenient and fast, without dead corner and residue.
BulletPoint5 : 【Wide Application】This 1L reaction vessel can be safely operated under a full vacuum. Mezzanine can connect the heat source (freezing liquid, water, and hot oil) circulation heating or cooling, can control the reaction solution evaporation and re-flow. It is widely used for mixing, reaction, and distillation in the chemical and pharmaceutical industries.
Capacity : 1 liters
Color : One Color
ExternallyAssignedProductIdentifier : 7636325721004
ExternallyAssignedProductIdentifier1 : 0740170094071
ExternallyAssignedProductIdentifier2 : 740170094071
IncludedComponents : HFS Single Cow Distributor Adapter, 250 ml, 24/40

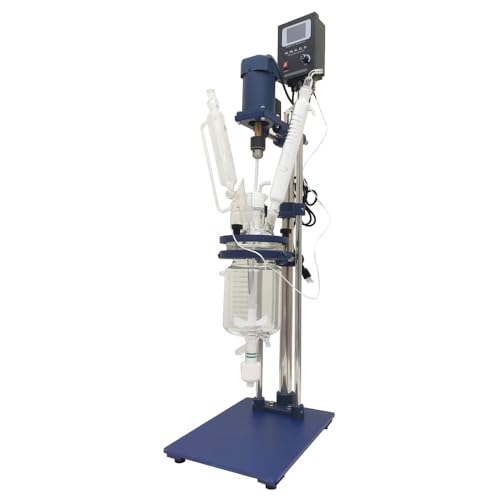

ItemName : INTSUPERMAI 110V 1L Laboratory Jacketed Reactor Laboratory Glass Reactor Jacketed Glass Reactor with Digital Display Double-Layer Chemical Reaction Vessel for Chemistry Reaction Distillation
ItemPackageDimensions_Height : 44 inches
ItemPackageDimensions_Length : 16 inches
ItemPackageDimensions_Width : 19 inches
ItemPackageQuantity : 1
ItemTypeKeyword : lab-distillation-apparatus
Manufacturer : INTSUPERMAI
Material : Stainless Steel
ModelName : OQATNXUR
ModelNumber : SY220637
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : SY220637
ProductDescription :
Parameters:
Brand: INTSUPERMA
Material capacity: 1L
Power: 90W
Speed: 0-600RPPM
Maximum torque: 200N.cm
Reaction temperature: -80-250℃
Vacuum: 0.098Mpa
Plate size: 15.94x11.61inch(405x295mm)

Method of use
1. Plug in the power plug, turn on the power switch on the inverter, and use the speed control knob to select the appropriate speed.
2. The flow of materials and the power of the motor speed may resonate at a certain point. Please change the motor speed to avoid resonance.
3. After the stirring rod is installed, it must be rotated by hand, paying attention to whether the concentricity is good.
If the concentricity is not good, loosen the heavy clamp, turn on the power after the clamp is correct, and gradually adjust from slow to fast.
4. Using the stirring rod regulator, the stirring leaf can be up and down 5cm as needed.
5. If you find that the sealing performance of the kettle has decreased, please check the rotating bearing in the agitator sleeve.
6. The interlayer on the glass kettle is connected to an external circulation port. Hot oil can be used for heating reaction, and cooling liquid can be used for low-temperature reaction.
If steam heating is used, it should not exceed 0.5K-1K. (Try not to use pressure steam for heating).
7. When testing at low temperature, the discharge valve at the bottom will be frosted.
When using the valve, it must be partially defrosted to prevent the glass from being broken.
8. If there are particulate objects in the solution during use, there may be leftovers on the PTFE piston of the valve during discharging.
The air tightness will be affected when it is used again. Be sure to clean it after discharging each time and use it again.

Item included:
One set of 110V 1L Laboratory Jacketed Reactor Laboratory Glass Reactor

ProductSiteLaunchDate : 2023-09-21T14:03:36.100Z
Size : 4 inch (102mm)
Style : 1L
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 41121804
Wattage : 650 watts
