Specification
Brand : Ruland
BulletPoint1 : Zero-backlash with anodized aluminum hubs for low inertia
BulletPoint2 : Balanced design reduces vibration at speeds up to 10,000 RPM
BulletPoint3 : Double disc style accommodates all forms of misalignment and is torsionally rigid making them well suited for precision positioning systems
BulletPoint4 : Hardware exceeds DIN 912 12.9 standards for maximum torque capabilities
BulletPoint5 : Ruland disc couplings are carefully made from select North American bar stock in our Marlborough, Massachusetts factory and are RoHS3 and REACH compliant
ExteriorFinish : Aluminum
ExternallyAssignedProductIdentifier1 : 634529081570
ExternallyAssignedProductIdentifier2 : 0634529081570
ExternallyAssignedProductIdentifier3 : 00634529081570
ItemName : Ruland DCD12-5-3-A Aluminum Disc Coupling, Double Disc Clamp Style, 0.313" x 0.188" Bores, 0.750" OD
ItemPackageDimensions_Height : 0.8 inches
ItemPackageDimensions_Length : 5 inches
ItemPackageDimensions_Width : 3 inches
ItemPackageQuantity : 1
ItemShape : coupling
ItemTypeKeyword : disc-couplings
Manufacturer : Ruland Manufacturing Co., Inc.
Material : 2024 or 7075 Aluminum Hubs; 02 Stainless Steel Disc Springs
Material1 : Aluminum
Material2 : Stainless Steel
MeasurementSystem : Metric
MetalType1 : Stainless Steel
MetalType2 : Aluminum
ModelNumber : DCD12-5-3-A
NumberOfItems : 1
PartNumber : DCD12-5-3-A
ProductDescription : Flexible couplings are used to link 2 rotating shafts that are not aligned in order to transmit the rotational power, known as torque, from 1 shaft to the other.
Most flexible couplings consist of 2 hubs and 1 middle assembly; each hub attaches to a shaft while the middle assembly flexes between the hubs to accommodate the misalignment of the 2 shafts.
Shaft misalignments are generally either parallel or angular and cause complications to transmitting rotational power from 1 shaft to another in the form of stresses, loads, vibrations, and other forces, which vary from 1 type of misalignment to another.
Flexible couplings are used in a broad range of applications, such as conveyors, escalators, agricultural, forestry, mining equipment.

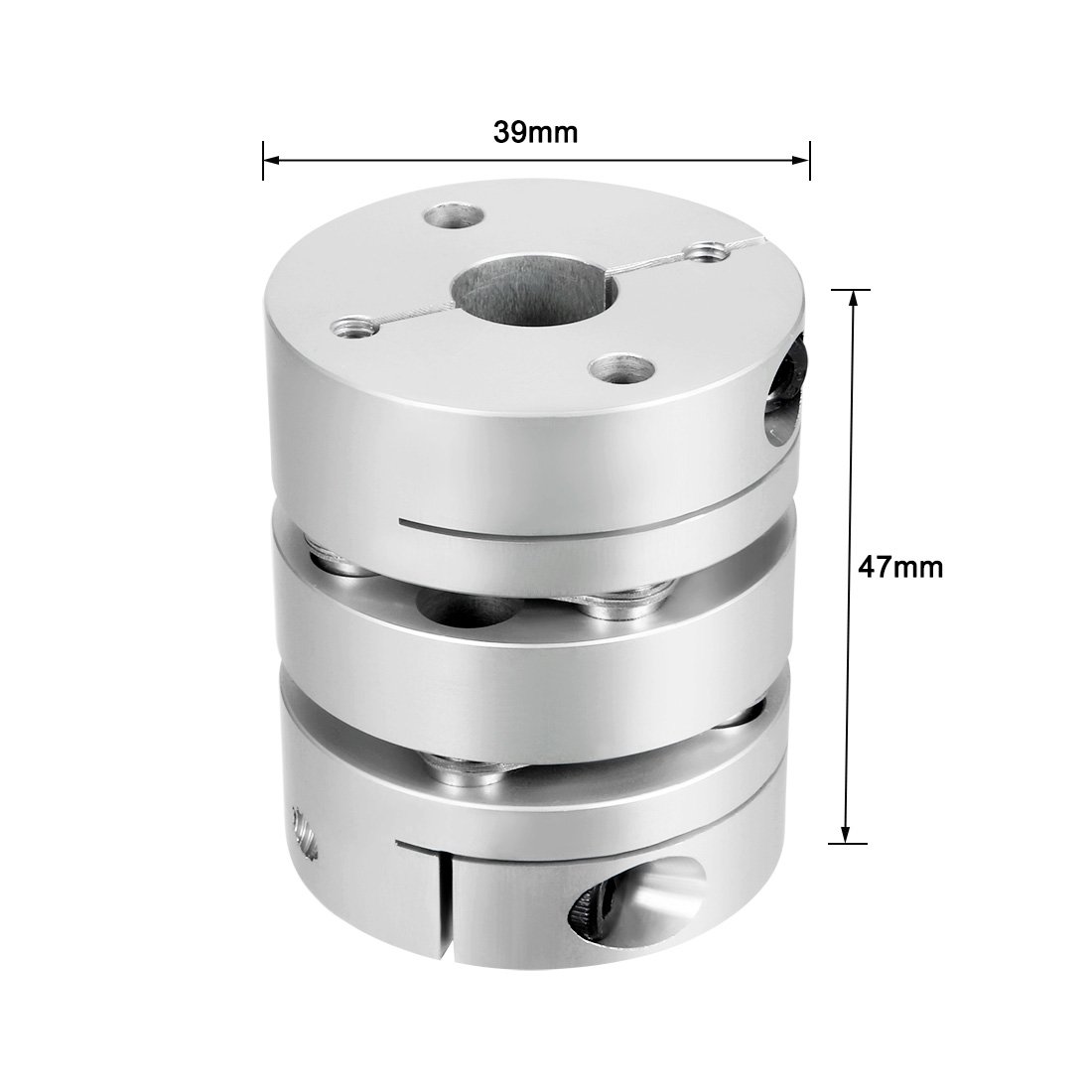

Specification:
Length: 47mm
Outside Diameter: 39mm
Bore Diameter: 12mm to 12mm
Max. Torque Range: 5.8N.m
Maximum Rotation Speed: 10000 RPM
Material: Aluminium Alloy and Stainless Steel

Feature:
Simple structure, inspection, installation is convenient;
Mini disc (MD) coupling assembly for use in applications requiring high torsional stiffness and torsional integrity;
Note: The adapted shaft diameter tolerance is +0~-0.04mm

Package:
1 x Diaphragm Coupling

ProductSiteLaunchDate : 2015-10-06T08:00:01.000Z
Size : 0.5 Inch
StreetDate : 2018-06-07T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
