Specification
Brand : Dayton
BulletPoint1 : 20-V digital or ± 10-V peak-to-peak switching
BulletPoint2 : 280 ohm- typical on-state resistance for 15-V operation, Matched control-input to signal-output capacitance: Reduces output signal transients, Frequency response, switch on = 40MHz (typ.), Maximum control input current of 1 µA at 18 V over full package temperature range; 100 nA at 18 V and 25°C
BulletPoint3 : Switch on-state resistance matched to within 10 ohm typ. over 15-V signal-input range, High on/off output-voltage ratio: 65 dB typ. @ fis = 10 kHz, RL = 10 k ohm, Low crosstalk between switches: –50 dB typ. @ fis= 0.9 MHz, RL = 1 k ohm, 5-V, 10-V, and 15-V parametric ratings
BulletPoint4 : High degree of linearity: <0.5% distortion typ. @ fis = 1 kHz, Vis = 5 Vp-p, VDD–VSS, Extremely low off-state switch leakage resulting in very low offset current and high effective off-state resistance: 100pA typ. @ VDD–VSS = 18 V, TA = 25°C, Extremely high control input impedance (control circuit isolated form signal circuit: 10^12 ohm typ., 100% tested for quiescent current at 20 V
BulletPoint5 : Example Applications: Analog signal switching/multiplexing: Signal gating, Squelch control, Chopper, Modulator, Demodulator, Commutating switch, Digital signal switching/multiplexing, CMOS logic implementation, Analog-to-digital & digital-to-analog conversion, Digital control of frequency, impedance, phase, and analog-signal gain
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 7436829420140
ExternallyAssignedProductIdentifier1 : 0799993467586
ExternallyAssignedProductIdentifier2 : 799993467586
ItemName : DAYTON 1EGD1 120VAC, Off 0.1-10SEC, Repeat Cycle, TIME DELAY Relay, 8PIN Socket, ON 0.1-10SEC
ItemPackageQuantity : 1
ItemTypeKeyword : dip-switches
Manufacturer : DAYTON
Material : PDIP
MeasurementSystem : Imperial
ModelNumber : 1EGD1
MountingType : Plug In Mount
NumberOfItems : 10
PartNumber : 1EGD1

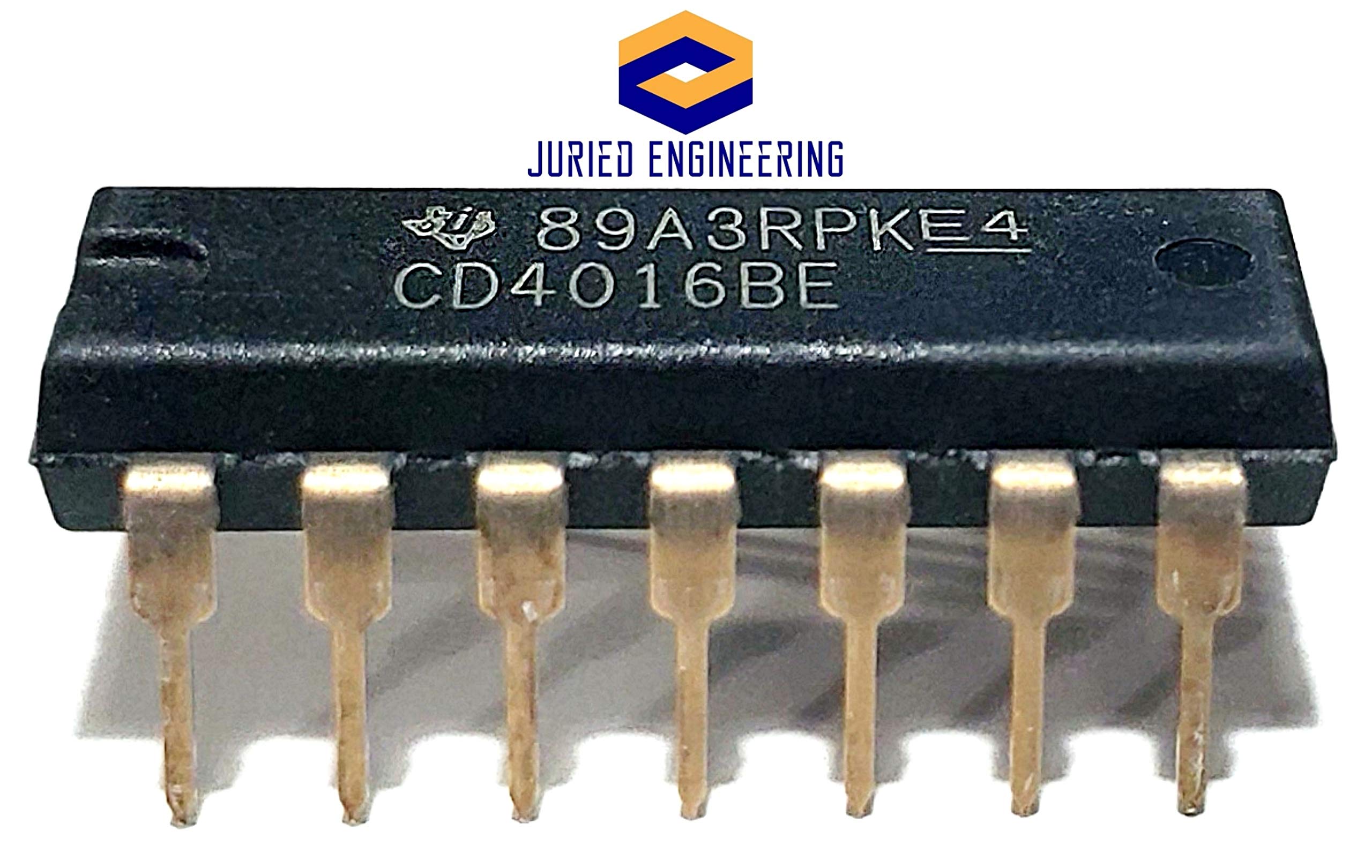

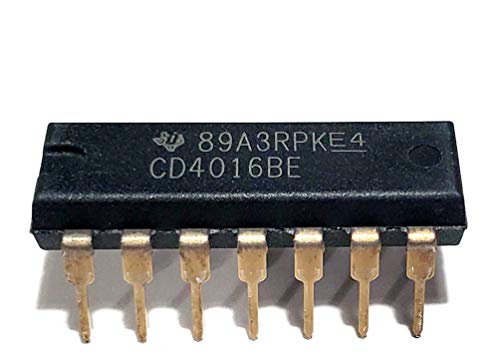

ProductDescription : The CD4016B Series types are quad bilateral switches intended for the transmission or multiplexing of analog or digital signals. Each of the four independent bilateral switches has a single control signal input which simultaneously biases both the p and n device in a given switch on or off.
ProductSiteLaunchDate : 2020-03-01T05:16:10.465Z
Size : Juried Engineering ESD Safe Packaging (Pack of 10)
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 39122300
Voltage : 120 volts
